18650 Battery Gantry Spot Welding Machine For Lithium Battery Packs
Price:
USD 1500-5000/pcs
MOQ:
1pcs
Delivery Time:
10-15 days
Brand:
XWELL
Product Description
18650 Battery Gantry Spot Welding Machine For Lithium Battery Packs

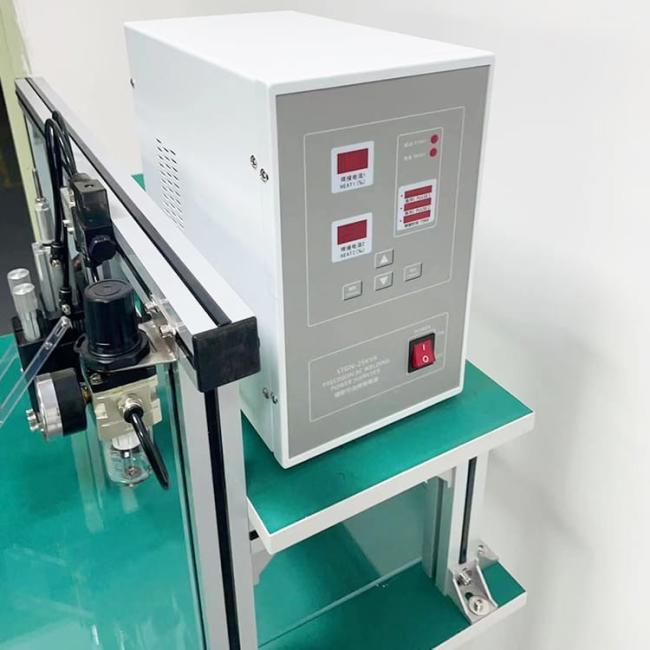

XW-GAC25 Manual Battery Pack Spot Welding Machine is a general platform for cylinder battery pack assembling. It equipped with advanced 5000A DC inverter welding power supply, Suitable battery for pack spot welding and assembly in the factory. This machine can assembling batteries like 18650, 26650, 21700... and Nickel or Nickel-Plated Steel strips. Which support battery pack like E-Bike, Scooter, electromobile.
Feature
1.Panel Microcomputer control, high precision welding machine with plc display panel.
2. Optimized structure design, beautiful appearance, compact and reasonable structure, small size and large power.
3. Industrial circuit design, safe and reliable.
Product Specification
| Item | Parameter |
|---|---|
| Welder | 5000A/8000A inverter spot welding power supply(optional) |
| Welding head quantity | 1 |
| Table size | 800 * 600mm |
| Cell type | 18650, 21700, 32650… all types of cylinderial cells |
| Total cell support | 300 - 500 pcs |
| Welding speed | Max 0.35s/spot, 1000 pcs/h |
| Cell link material | Nickel, Nickel-Plated Steel |
| Welding max thickness | 0.3mm |
| Max parameter groups | 99 groups |
| Controller | Microcomputer |
| Driver mode | Pneumatic |
| Cooling method | By air or water (optional) |
| Air pressure | 0.4-0.6 Mpa |
| Power voltage | Single phase 220V/Three phase 380V |
| Power | 4000 W |
| Size | 800L * 600W * 1530Hmm |
| Weight | 100kg |
Product Sturcture
Battery Pack Welding Samples
Spot welding samples
The double side spot welding machine suitable for all types of cylindrical cells pack and suitable for all shapes of packs. With high quality 5000A/8000A spot welding power supply, it can weld thickness from 0.1mm to 0.3mm. Welding spot is beautiful, firm and good conductivity.
