0.02mm Positioning Battery Pack Welding Machine 18650 21700 Battery Pack Spot Welder

Price Negotiable

Price: USD 6000 - 9000 / pcs

MOQ: 1pcs

Delivery Time: 10-15 days

Brand: XWELL

Product Description

Automatic AA AAA Lithium Ion Battery Pack Double Sides Spot Welder Welding Machine

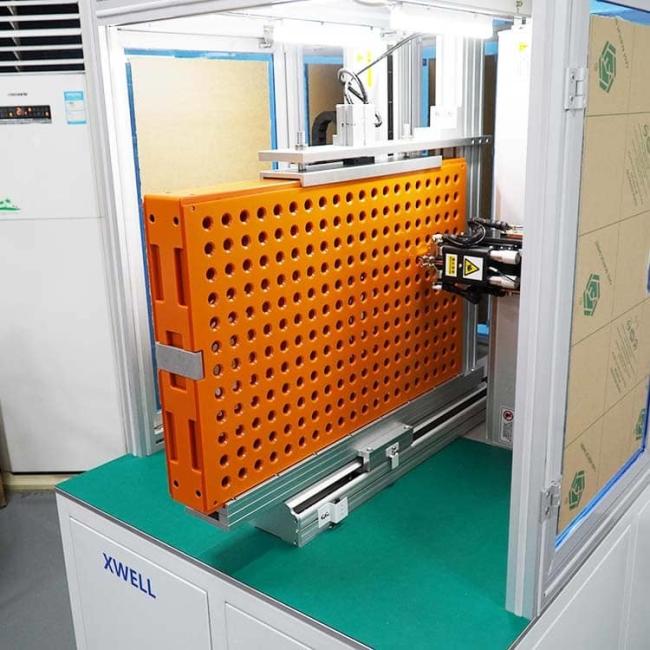

Application area:The ADW5000 Manual Battery Pack Spot Welding Machine is a general platform for cylinder battery pack assembling. It equipped with advanced 5000A DC inverter welding power supply(also customize 8000A), Suitable battery for pack spot welding and assembly in the factory. This machine can assembling batteries like 18650, 26650, 21700... and Nickel or Nickel-Plated Steel strips. Which support battery pack like E-Bike, Scooter, electromobile ...

Features:

5. Easy to change from low current to high current, suitable for precision welding.

6. Can set the upper and lower limits of the current, simply determine the quality of welding is good or not.

7. The welding current increases with the welding time to ensure the welding result.

Battery Spot Welding Machine Specification

Model No.	MD-ADW
Y-axis travel	500mm (customizable)
X-axis travel	350mm (customizable)
Max spot welding speed	0.35s/point (1 hour:about 2800 units18650 cells)
Motor drive speed	1000mm/S
Max load electric cores	X direction: 26; Y direction: 26
Capable file group storage	99 groups
Operating system	embedded system human-machine interface
Transmission mode	Taiwan precision screw with guide rail
Driving mode	stepper servo motor
Repeat positioning accuracy	±0.02mm
Dimensions	L: 900mm, W: 900mm, H: 1750mm
Power	4000W
Machine weight	200KG
Max bearing weight of Y-axis	35KG
Input power supply	duoble-phase AC 220V/50Hz AC380V 3 phase
Air Source	0.4-0.6 Mpa
