Product Description:
European electric wire rope hoist is a kind of special lifting equipment, installed on overhead crane and gantry crane. It has features of small volume, light weight, simple operation and convenient use, etc, which is used for industrial and mining enterprises, storage terminals and other places.
We can supply hoist with lifting capacity: 3.2-20t, lifting height: 6-20m, work class: A5, speed: single /double speed. We also design and manufacture the nonstandard crane according users’ demanding.

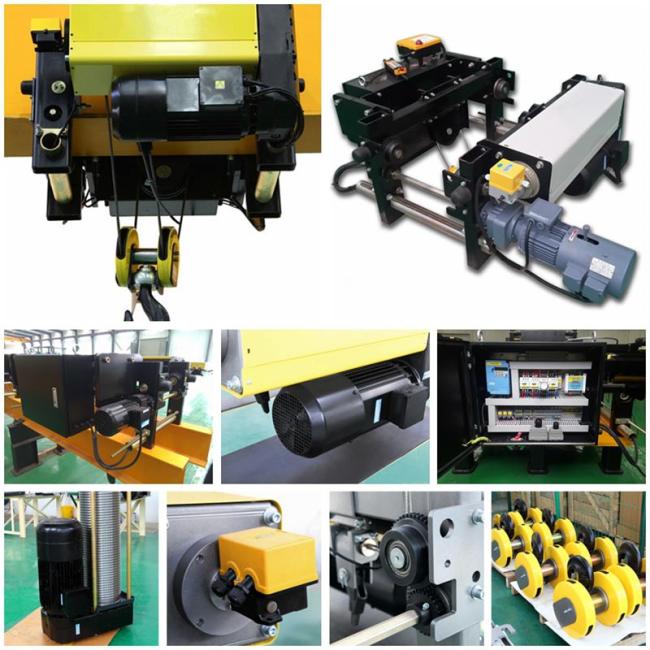

Features Of European Electric Wire Rope Hoist:
1. Reducer
Adopt third-step reducer powered by conic motor, all gears and driving axle assembly heated in special process, and thanks to the cast hoist cover and separate-unit reducer, it guarantee a good leak-resist characters and easy maintenance.
2. Upper/Bottom Limit
Thanks to upper and bottom limit, this can cut the circuit automatically to keep the hoist in good conditions in case the wrong operations occurred, so the wire rope hoist can use longer.
3. Wire Rope Cable
Use the GB1102-74(6*37+1) wire rope, it guarantees the lift wire rope durable.
4. Conic Motor
Lifting motor adopt conic motor, which can guarantee the brake operation be sound all the time without extra brake-device. The work mechanism of wire rope hoist 25%, insulation class meets grade B or F, then motors protection grade meet IP44/IP54.
5. Control-Unit
Portable control-unit, wire and remote control available.
| Capacity | Working duty | Lifting height | Lifting speed | Rope reeving | Traveling speed | Wheel load | weight |
| 1.6 | M6 | 6, 9, 12 | 1.6/10 | 2/1 | 2~20 | 6.1, 6.2, 6.3 | 300, 335, 370 |
| 2.5 | M6 | 6, 9, 12 | 0.8/5.0 | 4/1 | 2~20 | 9.1, 9.2, 9.3 | 315, 350, 385 |
| 3.2 | M5 | 6, 9, 12 | 0.8/5.0 | 4/1 | 2~20 | 11.5, 11.6, 11.7 | 335, 370, 405 |
| 6.3 | M5 | 6, 9, 12 | 0.8/5.0 | 4/1 | 2~20 | 22, 22.1, 22.2 | 400, 450, 500 |
| 8 | M6 | 6, 9, 12 | 0.8/5.0 | 4/1 | 2~20 | 28, 28.1, 28.2 | 580, 610, 640 |
| 10 | M5 | 6, 9, 12 | 0.8/5.0 | 4/1 | 2~20 | 34.7, 34.8, 34.9 | 580, 610, 640 |
| 10 | M6 | 6, 9, 12 | 0.66/4.0 | 4/1 | 2~20 | 34.7, 34.8, 34.9 | 650, 690, 730 |
| 12.5 | M5 | 6, 9, 12 | 0.66/4.0 | 4/1 | 2~20 | 43.3, 43.4, 43.5 | 660, 700, 740 |
| 3.2 | M5 | 6, 9, 12 | 0.8/5.0 | 4/1 | 2~20 | 11.9 | 510, 525, 540 |
| 6.3 | M5 | 6, 9, 12 | 0.8/5.0 | 4/1 | 2~20 | 20.9 | 632, 652, 672 |
| 10 | M5 | 6, 9, 12 | 0.8/5.0 | 4/1 | 2~20 | 30.0 | 871, 896, 921 |
| 12.5 | M5 | 6, 9, 12 | 0.66/4.0 | 4/1 | 2~20 | 40.5 | 890, 915, 940 |
| 16 | M5 | 6, 9, 12 | 0.66/4.0 | 4/1 | 2~20 | 59.4, 59.7, 60.0 | 1314, 1348, 1381 |
|
20
|
M5 |
6, 9, 12
|
0.5/3.4
|
4/1 | 2~20 |
59.5
|
1718, 1766, 1814
|
|
32
|
M5 | 6, 9, 12 |
0.8/3.3
|
6/1
|
2~20
|
95, 104
|
2826, 2920, 3091, 3199
|
