15mm mini stepper motor with lead screw 2 phase 4 wire stepper motor For Medical Equipment

VSM1519 is a precision micro-stepping motor. Its output uses M3 screw to perform linear motion and generate thrust, which can be directly used as an actuator to achieve the action required by customers.
The basic angle of the stepping motor is 18 degrees, and the motor runs 20 steps per week. Therefore, the displacement resolution can reach 0.025mm, thus achieving accurate control
The icon of motor input part is light, but can be changed to FPC cable, PCB and other forms according to customer requirements
At the same time, we can complete the corresponding drive system to meet the needs of customers!
Our team has more than 10 years of experience in the design, development and production of micro motors, so we can develop and design products according to customers' special needs!
Customer demand is the direction of our efforts, please feel free to contact

15mm micro stepper motor parameter sheet:

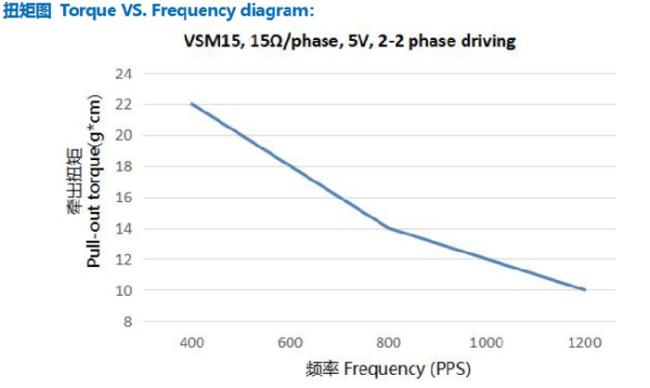

15mm mini stepper motor torque curve:

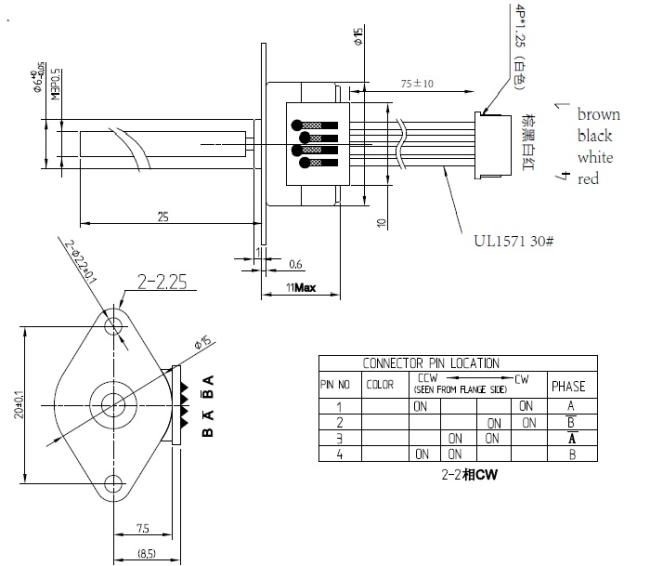

15mm micro stepper motor outside drawing:

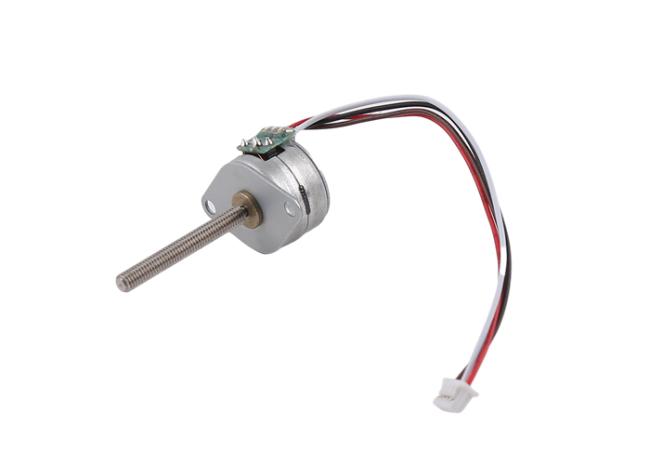

Product display:

15BY micro 5v 15mm diameter mini stepper motor PM stepping motor

Application:

Motor’s speed is determined by driving frequency, and it has nothing to do with load (unless it’s losing steps).

Due to high precision speed control of stepper motors, with a driver controlled stepping you can achieve very precise positioning and speed control. For this reason, stepper motors are the motor of choice for many precision motion control applications.
