High Torque Multiple Gear Ratio 42mm NEMA17 Hybrid Stepper Motor With Planetary Gearbox
Multiple gear ratio 42mm NEMA17 hybrid stepper motor with planetary gearbox
Description:
This is NEMA17 stepper motor attached with a planetary gearbox.
There are multiple gear ratios for customers to choose.
Also the parameters of motors, such as motor’s height, resistance, rated voltage are all customizable.
Gearbox information:
| Levels | Efficiency | Gearbox length | Possible gear ratio |
| 1 | 90% | 32.2 | 3.71; 5.18 |
| 2 | 80% | 40 | 13.76; 19.22; 26.83 |
| 3 | 72% | 50 | 51.06; 71.3; 99.55; 138.99 |
| 4 | 65% | 57 | 189.45; 264.52; 369.32; 516.66 |
Parameters:
| Motor type | Hybrid stepper motor+planetary gearbox |
| Model No. | 42BYGH34-PG |
| Phase number | 4 |
| Step angle | 1.8°/gear ratio |
| Rated voltage | 2.8V |
| Rated current/phase | 1.33A (Peak value) |
| Holding torque(single motor) | 2.6kg*cm |

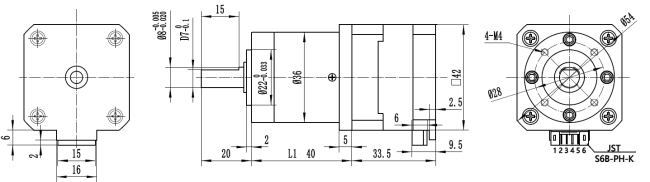

Design drawing:

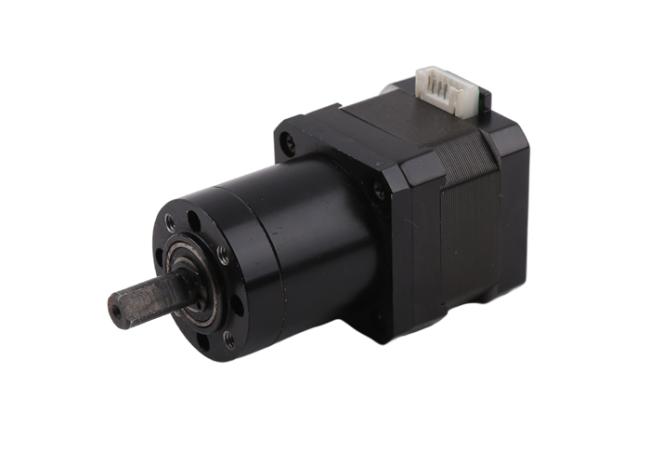

Product display:
Application of stepper motors:
Stepper motors are used for precise control, widely used on medical equipment, 3D printer, industrial precise control, automation equipment, etc.
Stepper motors can be used in any mechanisms requirement precise conrtol and rotational/linear movement.
Advantage of stepper motors:
Stepper motor can reach precise control even without close-loop encoders / without feed back system, also they do not have electrical brushed. Thus there is no electromagnetic interference and electrical sparks issues. In some cases, they can replace DC brushed motors/ brushless motors.
Stepper motors are easy to control with drivers, and this feature establish its important position in the field of precise control.
1. Precise control achievable, programmable
2. Without electromagnetic interference & electrical sparks
3. Small size
4. Reasonable price
5. Low noise
6. Long service life
