Cylinder Small DC Gear Motor High Torque 32mm 49:1 74:1 101:1 Gear Ratio

90 degrees output shaft worm gearbox with cylinder DC brushed motor

Description:

This is the JSX5300 series gearbox motor, it is a DC brush motor with a worm gearbox

Its output shaft is a D shaft with a diameter of 8mm, and the shaft length can be customized.

Its gearbox can also be changed to a dual-shaft design.

In addition, we have a variety of gear ratios for you to choose from.

If you are interested in our products, please feel free to contact us.

Parameters:

Design drawing:

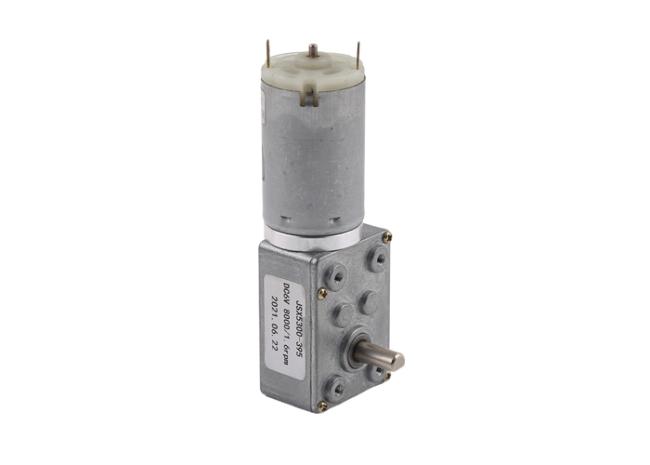

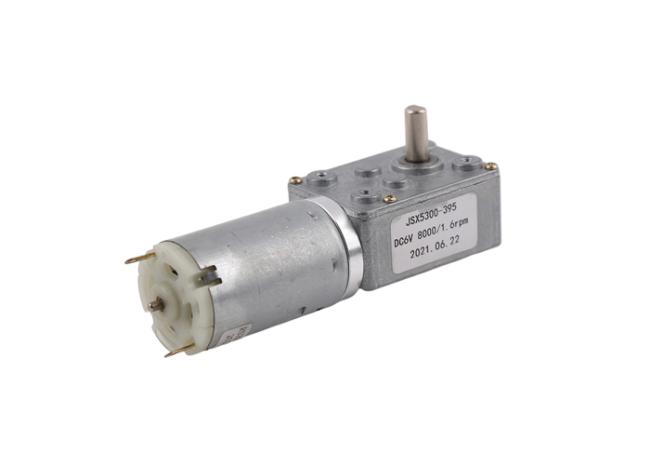

Product display:

About DC brushed motors:

This brushed DC motor is the most commonly used motor on the market.

It has brushes inside and has positive and negative pins (+ and -)

The speed of the DC motor can be controlled by different gear ratios or PWM control. (Pulse Width Modulation)

It is torque boosted through the gearbox, and the DC motor can achieve higher torque compared to the raw torque of the motor.

Advantage of DC brush motors:

1. Cheap price

2. Small size

3. Easy to connect, easy to use

4. Commonly used

5. Fast speed

6. High efficiency (compared to stepper motor)

DC motor with gearbox:

Gearbox can boost motor’s torque, and reduce motor’s speed

We have different gear ratios for you to choose, also gearbox’s efficiency is related to gear levels.

Output torque=original torque*gear ratio* gearbox efficiency

Output speed= original speed/gear ratio

Packaging and Shipping information:

Samples are packed with foam sponge inside paper box.

For mass production, products are packed in paper carton.

For sea shipping (Mass production), cartons are packed on pallet.

Shipping time:

By express(DHL/ UPS/ Fedex/ TNT): 5~12 days

By 4PX express: 10~20 days

Sea shipping: 40~60 days (depends on different countries)
