Customized M1.7*P0.3 lead screw linear 8mm diameter 5V permanent magnet PM stepper motor

Description:

This is 8mm diameter PM stepper motor with lead screw on top.

Lead screw type is M1.7*P0.3

M1.7*P0.3 is very uncommonly used lead screw, because this motor was developed for a specific project.
Also it might be hard for customers to find a nut to match this lead screw.

So we also provide customization service to customize the shaft into M2*P0.4 for example.

Motor parameters:

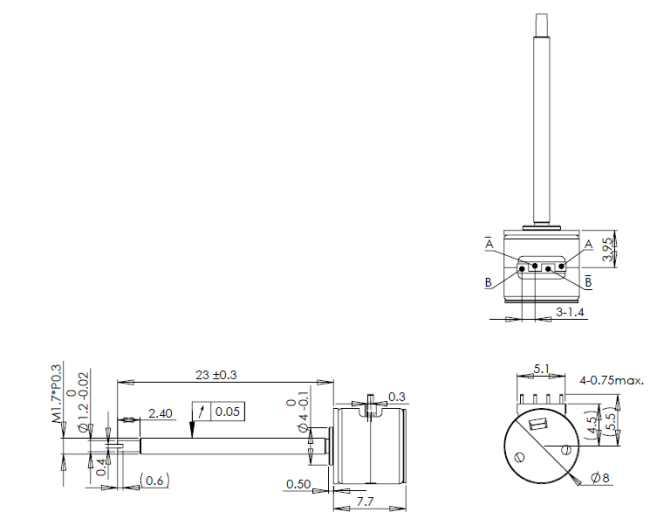

Design drawing:

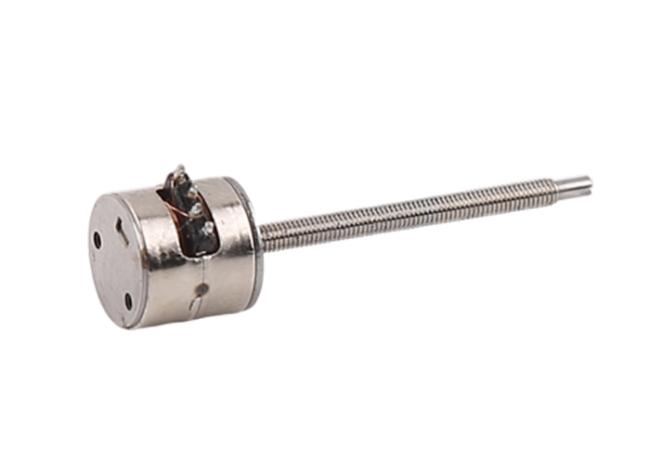

Product display:

Application of stepper motors:

Stepper motors are used for precise control, widely used on medical equipment, 3D printer, industrial precise control, automation equipment, etc.

Stepper motors can be used in any mechanisms requirement precise conrtol and rotational/linear movement.

Advantage of stepper motors:

Stepper motor can reach precise control even without close-loop encoders / without feed back system, also they do not have electrical brushed. Thus there is no electromagnetic interference and electrical sparks issues. In some cases, they can replace DC brushed motors/ brushless motors.

Stepper motors are easy to control with drivers, and this feature establish its important position in the field of precise control.

1. Precise control achievable, programmable

2. Without electromagnetic interference & electrical sparks

3. Small size

4. Reasonable price

5. Low noise

6. Long service life
