Step angle 18°/gear ratio 5V DC 10mm Small Geared Stepper Motor PM With Worm Gear Box Gear ratio 1:21 to 1:1030

Voltage 5V DC 10mm diameter small gear stepper motor with worm gear box

product description:

This is a 10mm stepper motor with a worm gearbox.

There are different transmission ratios on the gearbox for customers to choose.

The coil resistance/cable length/cable color of this motor can also be customized.

Regarding the worm gear, the efficiency is low and it has a self-locking function.

Low efficiency: the efficiency of the worm shaft is only about 34%

Self-locking function: The motor shaft is completely locked when the power is turned off. This feature is very useful in some situations.

Parameters:

Design drawing:

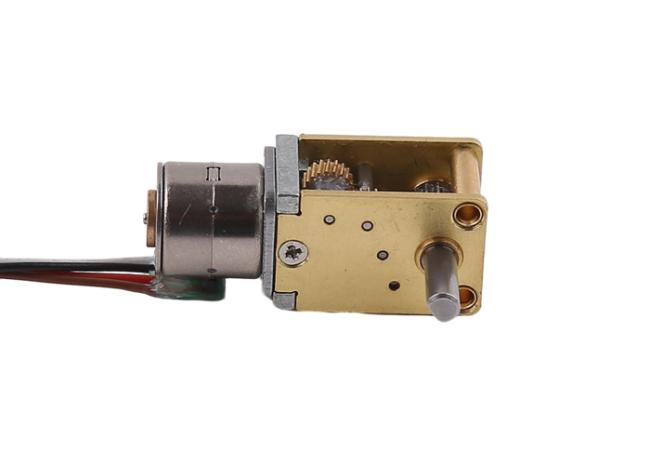

Product display:

The purpose of stepper motor:

Stepper motors are used for precise control, widely used on medical equipment, 3D printer, industrial precise control, automation equipment, etc.

Stepper motors can be used in any mechanisms requirement precise conrtol and rotational/linear movement.

Advantages of stepper motors:

Even without a closed loop encoder/feedback system, stepper motors can achieve precise control and no brushes. Therefore, there are no electromagnetic interference and spark problems.
In some cases, they can replace DC brushed/brushless motors.

The stepper motor is easy to control by the driver, which has established its important position in the field of precision control.

1. Precise control and programmable

2. No electromagnetic interference and sparks

3. Small size

4. Reasonable price

5. Low noise

6. Long service life

Product Packaging and Shipping Information:

For samples packed with foam sponge in carton.

For mass production, the product is packaged in a carton.

For sea shipping (mass production), cartons are packed on pallets.

Shipping time:

By express(DHL/ UPS/ Fedex/ TNT): 5~12 days

By 4PX express: 10~20 days

Sea shipping: 40~60 days (depends on different countries)
