Micro 8mm diameter VSM0801 18 degrees round shaft PM stepper motor

Description:

This VSM0801 motor is 8mm diameter motor with round shaft.

Motor’s shaft and coil resistance is adjustable.

Standard shaft is 3.9mm length 1mm diameter round shaft, and it can be customized into D shaft.

Standard coil resistance is 21Ω/phase, and we can change it coil winding/coil resistance based on different voltage requirement.

In general, when rated voltage is higher, coil resistance tends to be higher.

Motor parameters:

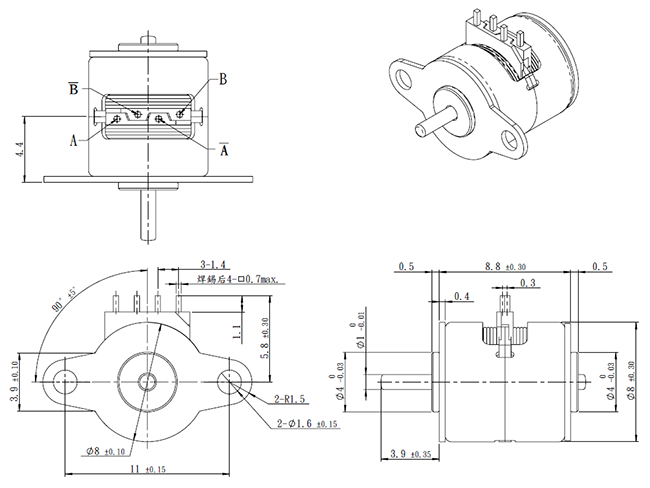

Design drawing:

Product display:

Application of stepper motors:

Stepper motors are used for precise control, widely used on medical equipment, 3D printer, industrial precise control, automation equipment, etc.

Stepper motors can be used in any mechanisms requirement precise conrtol and rotational/linear movement.

Advantage of stepper motors:

Stepper motor can reach precise control even without close-loop encoders / without feed back system, also they do not have electrical brushed. Thus there is no electromagnetic interference and electrical sparks issues. In some cases, they can replace DC brushed motors/ brushless motors.

Stepper motors are easy to control with drivers, and this feature establish its important position in the field of precise control.

1. Precise control achievable, programmable

2. Without electromagnetic interference & electrical sparks

3. Small size

4. Reasonable price

5. Low noise

6. Long service life
