28byj48 Geared Stepper Motor 5V 12vdc gear motor ratio 1:64 for automatic door lock

28BYJ48 The gear reduction ratio of this motor is 1:16 and 1:64, etc., the step angle of the motor is 5.625°/64, the driving mode of the motor: 1-2 phase excitation or 2-2 phase excitation
Lead Specifications: UL1061 26AWG or UL2464 26AWG
Rated voltage: 5VDC; 12VDC; 24VDC
This product is mainly used in sanitary ware, thermostatic valve, hot water faucet, automatic adjustment of water temperature and water flow, door lock, water purifier valve, etc.
At the same time, other fields that require precise control can be realized. Since the open-loop control is realized, low-cost position control is realized.
The connecting wires and connectors of the motor and the output shaft of the motor can be customized according to the customer's installation requirements. If you are interested in our products, you can contact me at any time.

28BYJ48 gearbox stepper main parameters:

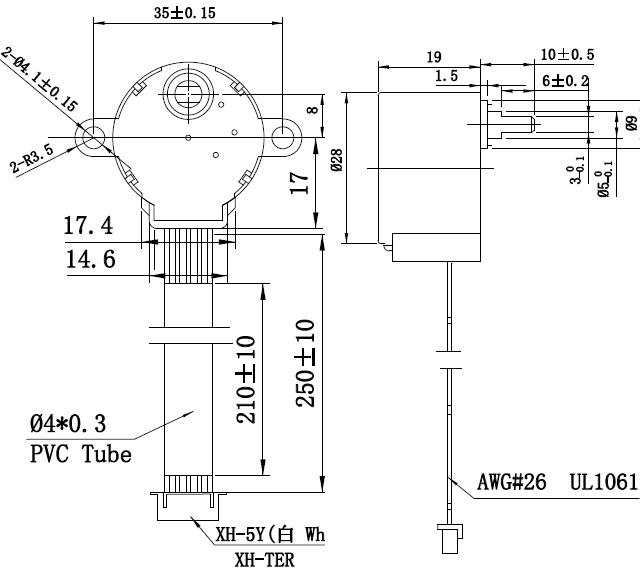

28BYJ48 gear stepper motor out drawing:

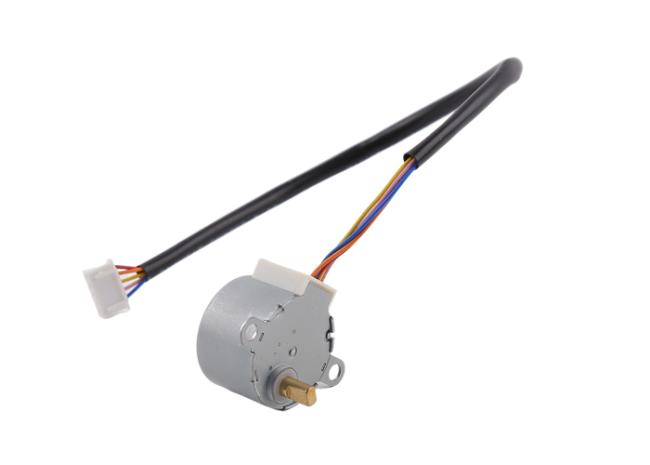

28BYJ48 gear stepper motor display:

Some informations about us:

Changzhou Vic-Tech Motor Technology Co.,Ltd( follows,we only call company) was founded in year 2011, the company mainly develops, manufactures and sells micro stepper motors, micro gearboxes, micro slider motor, micro linear motor and other products

The company is located in the Yangtze River Delta Economic Belt, one of the most economically developed regions in China, and is located in Changzhou City, Jiangsu Province, with a beautiful environment. The company is 20 kilometers away from Changzhou Airport, 5 kilometers away from the high-speed railway station, and 1 kilometers away from the high-speed intersection. And Shanghai and Nanjing are about 120 kilometers away. The transportation is very convenient, domestic and international logistics and transportation are very developed and convenient!

The main technical personnel of the company have worked in related industries for more than 10 years, and have working experience in foreign companies such as Japan, South Korea, Europe and the United States, and have working experience in domestic listed companies. Have systematic product development ability, perfect project management ability and good customer communication ability. The company has developed more than 30 customized projects for domestic and international first-class companies, and has cooperated with more than 20 large companies.

For motors with special specifications (number of phases, voltage, reduction ratio) and other size modifications, we can customize them according to the actual needs of customers. If customers need more information, please feel free to contact me.

Packaging and Shipping information:

All samples are packed in foam sponges in cartons.

For mass production, mass-produced products are packaged in cartons.

For sea shipping (mass production), cartons are packed on pallets.

Shipping time:

By express(DHL/ UPS/ Fedex/ TNT): 5~12 days

By 4PX express: 10~20 days

Sea shipping: 40~60 days (depends on different countries)
