Electronic glass door lock motor horizontal gear box DC brush motor with gear

Description:

This is a DC motor with a gearbox. This is a 300 DC brushed motor with gearbox. The motor diameter is 24mm.

Regarding the gearbox, the speed ratio is a 26:1 gear ratio horizontal gearbox, the output gear is 20 teeth, and the gear module is 0.8.

The original no-load speed of the motor is about 6800 RPM, and with a 26:1 ratio gearbox, the output speed (no-load) is about 260 RPM.

This motor is used in glass door locks and other electronic locks.

Motor Parameters:

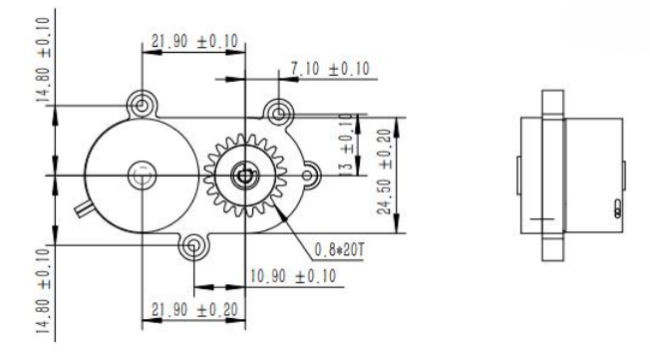

Design drawing:

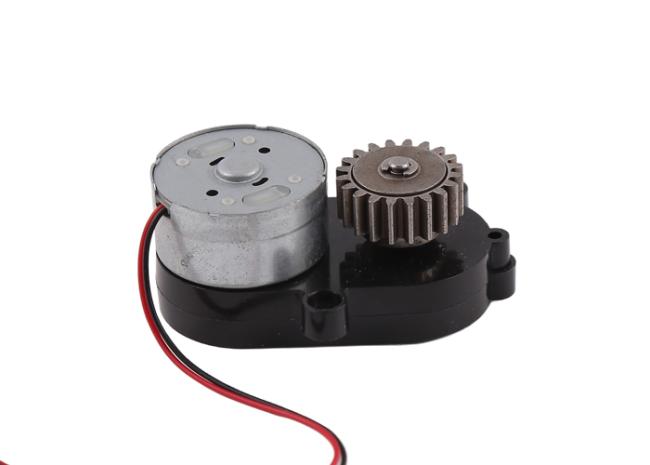

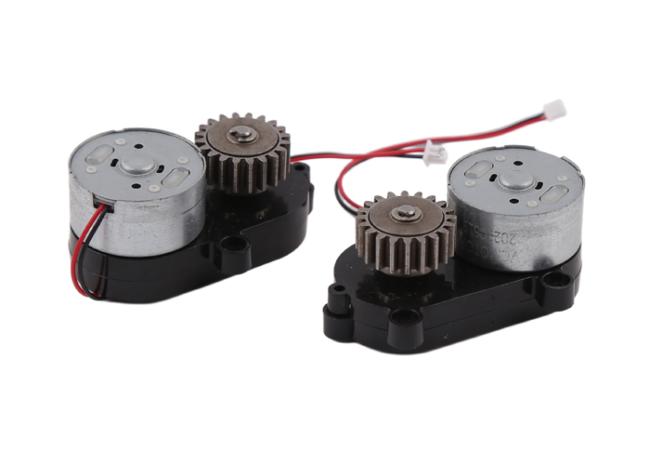

Product display:

About DC brushed motors:

Brushed DC motors are the most commonly used motors on the market.
There are brushes inside the motor with positive and negative pins (+ and -)
The speed of the DC motor can be controlled by different gear ratios or PWM control. (Pulse Width Modulation)
Through the gearbox torque boost, the DC motor can achieve higher torque compared to the raw torque of the motor.
Advantages of brushed DC motors:
1. Cheap price
2. The volume is relatively small
3. Easy to connect, easy to use
4. Commonly used
5. Faster
6. High efficiency (compared with stepper motor

DC motor with gearbox:

Gearbox can boost motor’s torque, and reduce motor’s speed
We have different gear ratios for you to choose, also gearbox’s efficiency is related to gear levels.
Output torque=original torque*gear ratio* gearbox efficiency
Output speed= original speed/gear ratio
