18 degrees Step angle 5V DC Micro Stepper Motor 10mm 2 Phase Linear Screw Stepper Motor
5V DC Micro Stepper Motor 10mm Linear Screw Stepper Motor Manufacturer Supply
SM10-56.5L is a precision linear stepping motor, which has been used in medical equipment, printers, scanners, automotive instruments, security systems, electronic locks, etc.
Mini body, 3N thrust, 56.5mm stroke, 0.067mm displacement per step, and can be completed in as little as 1 second.
The input part of the motor is a connecting wire, but it can be changed into the form of connecting wire needle, FPC, etc. according to customer needs.
The length of the lead screw of the motor can be customized according to customer needs
10mm micro stepper motor parameter sheet:
| Product name | 10 MM MICRO STEPPER MOTOR |
| Model | SM10-56.5L |
| Rated voltage | 5V DC |
| Current per phase | 270mA / Phase |
| No.of phases | 2 Phase |
| Step angle | 18°/Step |
| Max.starting frequency | 1000 PPS min. (AT 5.0 V DC) |
| Max.slewing frequency | 1500 PPS min. (AT 5.0 V DC) |
| Pull in torque | 5 gf-cm min. (AT 500 PPS , 5.0V DC) |
| Pulll out torque | 6 gf-cm min. (AT 500 PPS , 5.0V DC) |
| Insulation class | Class e for coils |
| Insulation strength | 100 v ac for one second |
| Insulaton reststance | 50 M DC 500 V |
| Operating temperature rance | -0~+55℃ |

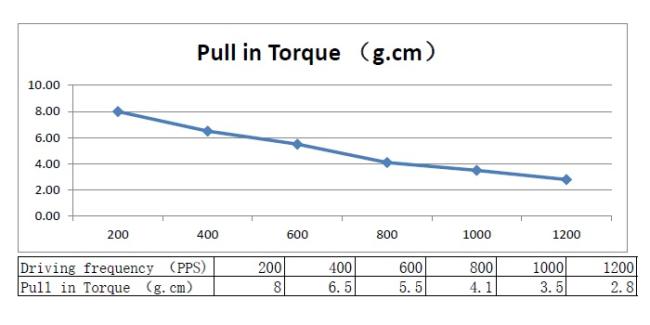

10mm micro stepper motor torque curve:

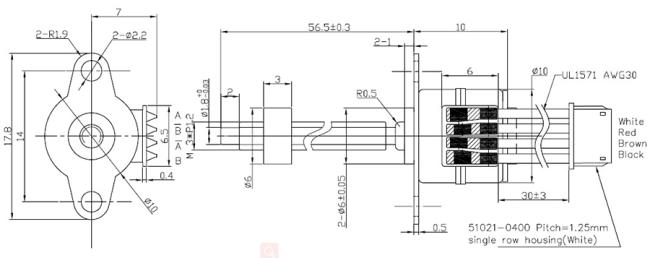

10mm micro stepper motor outside drawing:
Product display:
10BY micro 5v 10mm diameter mini stepper motor PM stepping motor
Service and Customization:
This motor is mainly used in cameras, lenses, optical instruments and other fields, with small size and precise control. Customers can customize motor resistance, installation size, outlet shape and size. For special occasions, the planetary gearbox can be matched with the motor to obtain high torque at low speed.
The needs of customers are the direction we should strive for, and meeting the needs of customers is our highest pursuit. Please keep in touch with us.
