Ultrasound Veterinary Medical Devices Color Veterinary Doppler Machine

Price Negotiable

Price: $6,900.00 - $7,000.00/sets

MOQ: Negotiable

Delivery Time: Negotiable

Brand: Longermay

Product Description

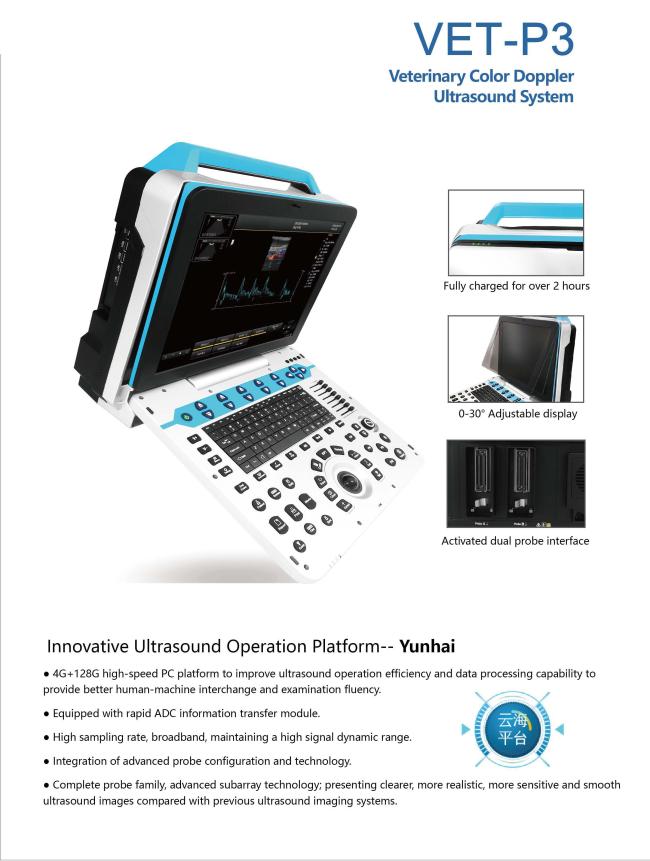

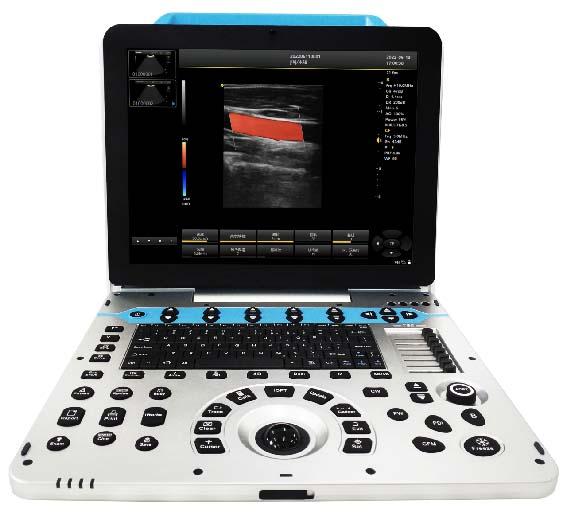

Veterinary Color Doppler Ultrasound System

1.Product Name: Full Digital Color Doppler Veterinary Ultrasound Scanner
1.1 Structure Style: Portable
2.2. Application:
2.1 It's applicable for animals’ examination and diagnosis on digestive system, reproductive system, urinary system for animal hospitals and scientific institutions.

Functions

The VET-P3 has been faithfully recognized in the field of portable ultrasound for its high quality hardware and software technology and stable working system in clinical use.

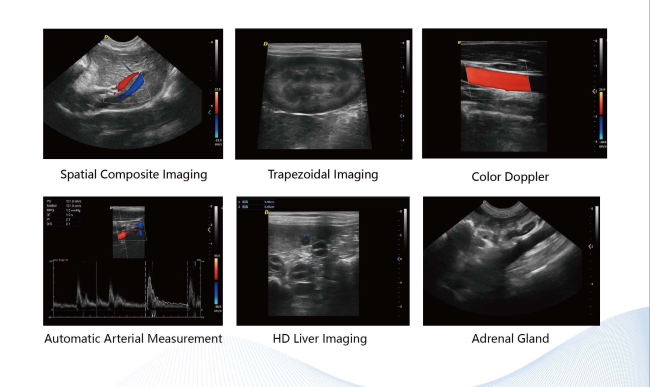

Spatial Composite Imaging Ultrasound spatial composite imaging can improve contrast resolution, fine resolution and spatial resolution. Enhance the echo continuity of tisue and lesion interface and reduce various artifacts (specular reflection, speckle, sattering. attenuation, poor contrast).

Trapezoidal Imaging It is a kind of extended imaging, based on the original rectangle converted into a trapezoid, the left and right sides of a certain degree of expansion, the field of view to achieve a wider effect.

Harmonic Imaging Harmonic technology maximizes the retention of the second harmonic signal on the basis of removing the fundamental signal, which increases the signal intensity by more than 30% compared with the traditional signal processing. reduces noise and artifacts, and improves the contrast resolution of tssue images.

Doppler Spectrum Auto-trace Automatic and accurate envelope spectrum, automatically gives pressure, heart rate, resistance index and other hemodynamic indices, facilitating accurate assessment.

System technical specifications and summary:

3.1O Operating System: Windows 10
3.2 Pulsed Wave Doppler Imaging (PW)
3.3 Directional Power Doppler Imaging (DPDI)
3.4 Real-time Triplex
3.5 Spatial Compound Imaging
3.6 Tissue Harmonic Imaging (THI)
3.7 2B/4B Imaging Modes
3.8 Support Language: Chinese, English, French, Russian, Spanish
3.9 Monitor Size: ≥15 inch
3.10 All-in-one clipboard: saved images display on the bottom of the screen, which can be directly transferred or deleted.
3.11 The system has the function of on-the-spot upgrade.
3.12 Presettable Conditions: Preset optimal image inspection conditions to reduce adjustment during operation.
3.13 Probe interface: 2
3.14 Trapezoidal Imaging
3.15 One Key Smart Optimization
