Hospital Digital 12 Channel Ecg Machine Electrocardiograph Ecg Prices

Price Negotiable

Price: $800.00 - $880.00/Sets

MOQ: Negotiable

Delivery Time: Negotiable

Brand: Longermay

Product Description

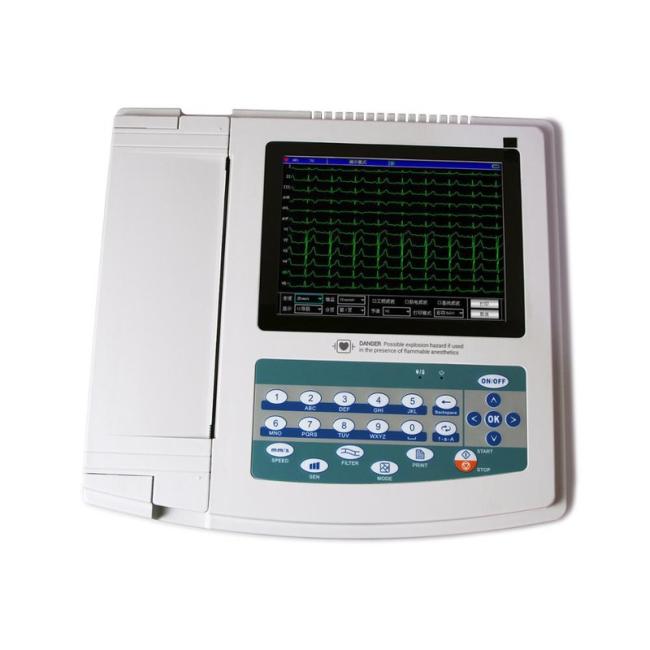

Hospital Digital 12 Channel ECG Machine Electrocardiograph ECG Prices

What are the features of our 12 channel ECG machine?

It is an electrocardiograph which can collect 12-lead ECG signal simultaneously and print ECG waveform with thermal printing system. It features in, recording and displaying ECG waveform in AUTO/Manual mode, measuring and diagnosing ECG waveform parameters automatically, prompting for “Lead off” and “Lack of paper”, multi-language interface, AC/DC, selecting rhythm lead, printing the trend chart and histogram of P-R interval, case database
management.

Technical data:

Input mode: floating and defibrillation protection

Frequency response: 0.05Hz ~ 150Hz(-3dB~+0.4dB)
CMRR: >60dB, >100dB(add filter)

Time constant:≥ 3.2s

Patient leak current: <10µA

Calibration voltage: 1mV

Sensitivity: 2.5, 5, 10, 20, 40 mm/mV ±5%, standard sensitivity: 10mm/mV±2%

Noise level: ≤15µVp-p

Input circuit current: ≤50nA

Input impedance: ≥50MΩ
Sampling accuracy: 12-bit

Safety classification: class I, type CF and defibrillation-proof applied part

Recording mode: thermal printing system

Paper size: 210mm(W)×20m(L)

Sampling frequency: 1000Hz

EMG interference filter: 25Hz/35Hz (-3dB)

Power frequency filter: AC 50Hz/60Hz(-20dB)

Paper speed: Auto: 25, 50mm/s, ±5%

Rhythm: 25, 50mm/s, ±5%

Manual: 5, 6.25, 10, 12.5, 25, 50mm/s, ±5%
Auto record: set record according to auto record format and mode, automatically switching leads, measuring and analyzing.

Rhythm record: set record according to rhythm record format and mode, automatically measuring and analyzing.

Manual record: set record according to record format, manually switching leads.

Measurement parameters: HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1)

Power supply: AC: 100V~240V(50/60Hz)

DC:14.8V/3500mAh rechargeable lithium battery

Fuse specification: two AC time lag fuse(φ5×20mm), T1.6AL250V

Waterproof degree: IPX0
Working mode: continuous working

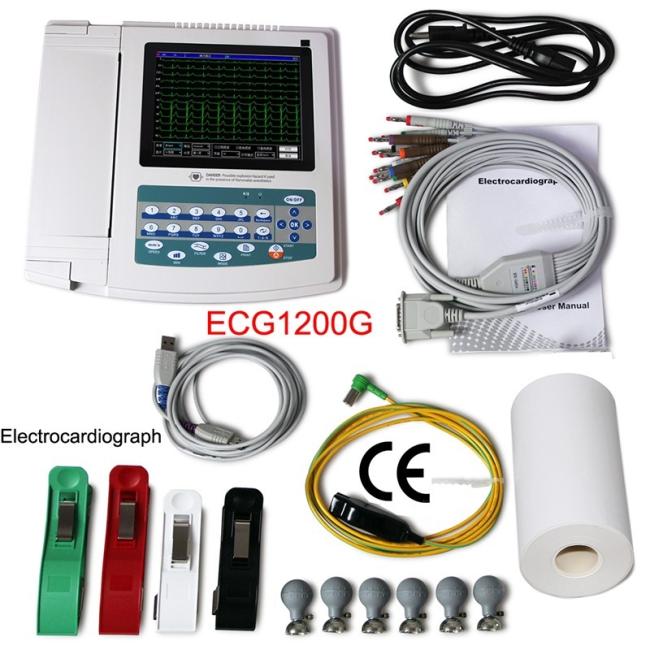

What will you get?

Accessories: Standard:

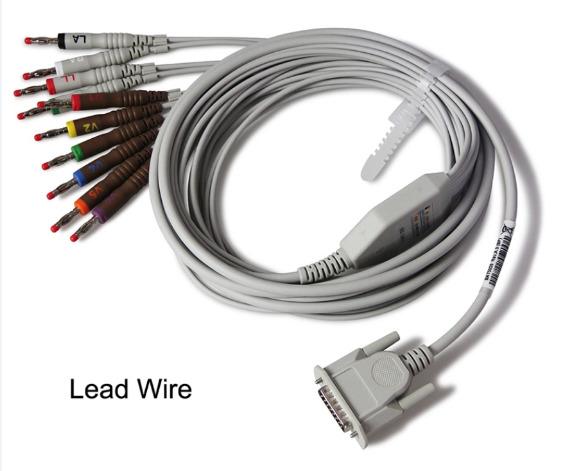

A lead cable

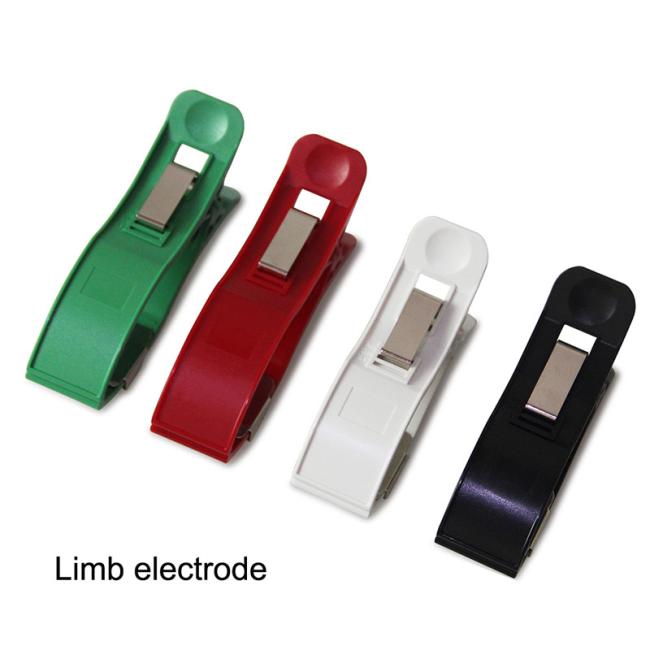

A limb electrode

A chest electrode

A thermal recording paper

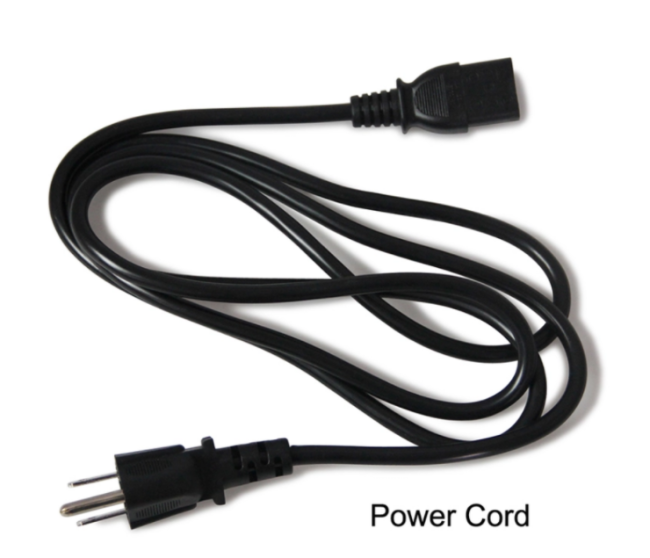

A power cord An earth wire

A user manual

Optional:

ECG-Sync software+USB cable

ECG electrode

Bag

Conductive paste

USB cable 3G card

Wi-Fi card

Remote Operation Guide

Specification

Place of Origin:Jiangsu, China
Power Source:Electricity
Warranty:2 years
After-sale Service:Online technical support
Material:Plastic, Steel
Shelf Life:2 years
Quality Certification:ce
Instrument classification:Class I
Safety standard:None
Type:Pathological Analysis Equipments
Certificate:CE ISO
Product name:ECG machine
Application:Medical Field
Sampling rate:1000 samples/Sec/Channel
touch screen:800*480, 7inch TFT
Dimension:315mm(L)*215mm(W)*92mm(H)
Weight:3.2Kg
ECG acquisition:12-lead

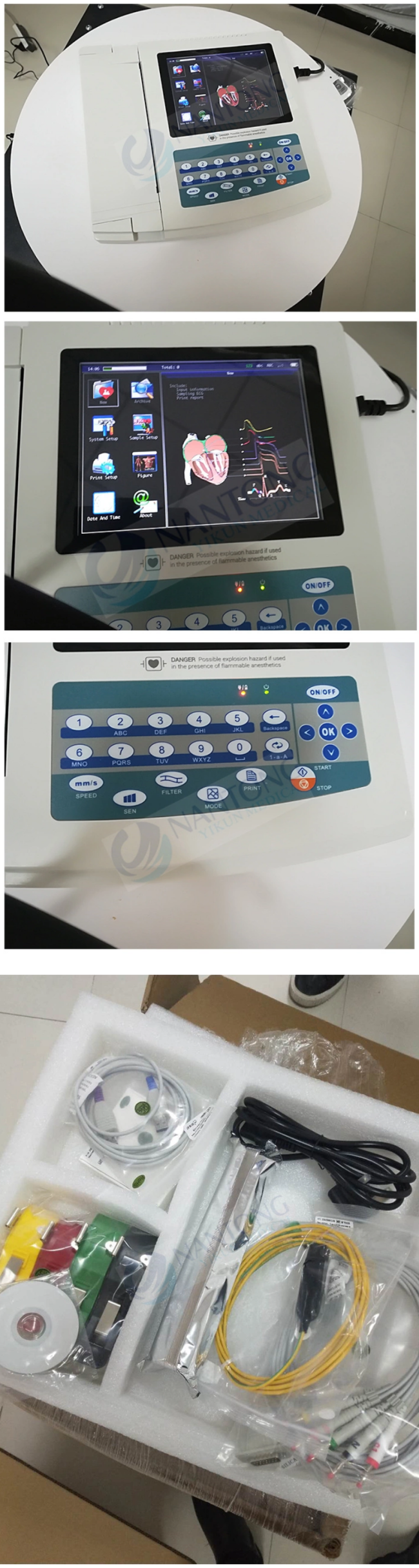

Details Images
