Hospital Medical Equipment Anesthesia / Anasthesia / Anestesia Machine
Price:
$2,690.00 - $3,000.00/Sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
Longermay
Product Description
Product Description

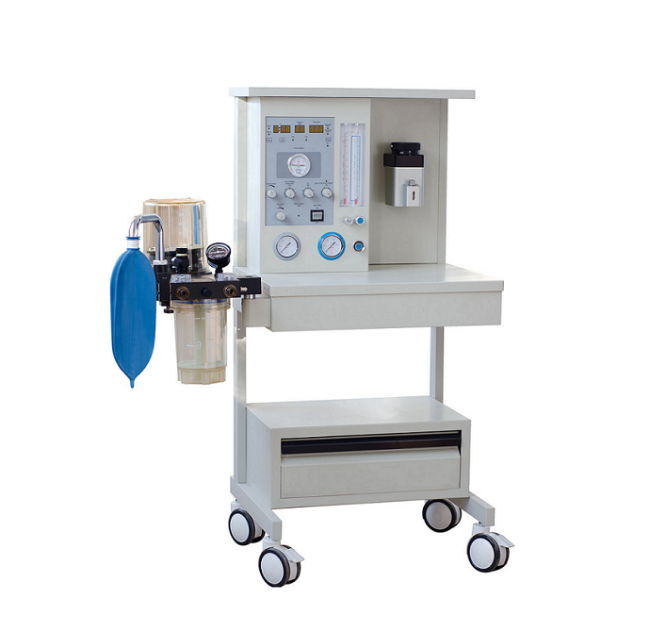

Hospital Medical equipment Anesthesia / anasthesia / Anestesia machine
Features:
1. Pneumatically driven electronically controlled system
2. Built-in ventilator, LED display screen
3. With 1 patient circuit for adult (Option: patient circuit for children).
4. 4-tube flowmeters, O2 & N2O;0.1 L/Min ~ 10 L/Min;
5. Vaporizer: Enflurane / Isoflurane / Sevoflurane; (Option: Halothane)
6. Ptr:-10~10hPa;
7. Respiration Mode: IPPV, SIPPV, Manu
8. Tidal Volume: 50~1500mL;
9. Respiration Frequency: 4~40bpm;
10. I/E Ratio: 1:1.5~1:3
Prospective service and support
1. Pneumatically driven electronically controlled system
2. Built-in ventilator, LED display screen
3. With 1 patient circuit for adult (Option: patient circuit for children).
4. 4-tube flowmeters, O2 & N2O;0.1 L/Min ~ 10 L/Min;
5. Vaporizer: Enflurane / Isoflurane / Sevoflurane; (Option: Halothane)
6. Ptr:-10~10hPa;
7. Respiration Mode: IPPV, SIPPV, Manu
8. Tidal Volume: 50~1500mL;
9. Respiration Frequency: 4~40bpm;
10. I/E Ratio: 1:1.5~1:3
Prospective service and support
Anesthesia Machine is an essential important anesthesia device in an operation room. Its function is to provide oxygen and anesthetic agent to a patient needing to go through an anesthesia operation and perform ventilation management.

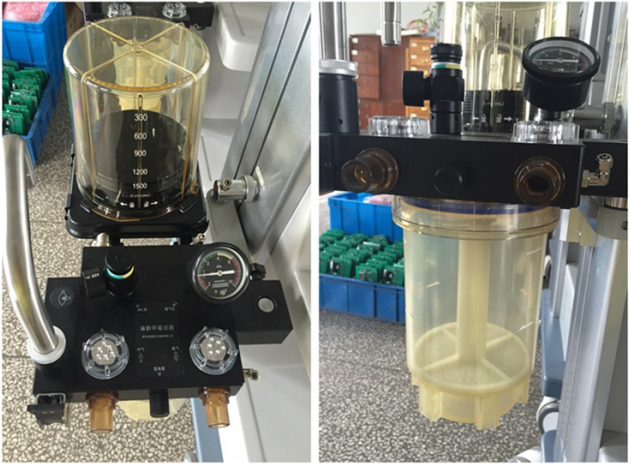

A highly efficient and large volume soda lime absorber can minimize the re-inhalation of carbon dioxide by the patient.
Na Lime Tank: Equipped with international advanced one-piece soda lime cans,it can be fast replaced with hands and withstand temperatures up to 134℃
Circuit: Metal integrated breathing circuit, Perfect function of gas sealing under high temperature disinfection, and easy to
cleaning and disinfected.
A highly efficient and large volume soda lime absorber can minimize the re-inhalation of carbon dioxide by the patient.
Na Lime Tank: Equipped with international advanced one-piece soda lime cans,it can be fast replaced with hands and withstand temperatures up to 134℃
Circuit: Metal integrated breathing circuit, Perfect function of gas sealing under high temperature disinfection, and easy to
cleaning and disinfected.
Details Images

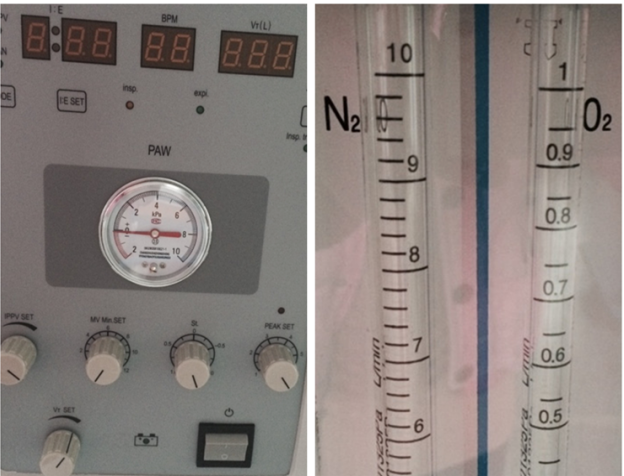

Flowmeter: 2-Tubes flowmeter;
1. Assure that O2 output not lower than 20%
2. NO2 automatically off while O2deficiency
Display & Operating Interface:
LED Display Screen, can feedback patient data
Shuttle button: More accurate
1. Assure that O2 output not lower than 20%
2. NO2 automatically off while O2deficiency
Display & Operating Interface:
LED Display Screen, can feedback patient data
Shuttle button: More accurate
TECHNIQUES SPECIFICATIONS
Physical specifications | ||
Screen | LED Display Screen | |
Suitable | Adult & Child | |
Mode | pneumatically powered and electrically controlled system | |
Working Mode | Closed; Semi-Closed; Semi-Open | |
Circuit | Breathing circuit integrated standards | |
Tube | 2 Tubes Flowmeters: O2:0.1~10L/Min, N2O:0.1~10L/Min | |
Trolley | Fitted with 4 nos anti-static rubber castors; two of which are lockable for braking and easy maneuverability with foot operated brake provisions | |
Drawer unit | ONE drawer totally extractable | |
Technical Specifications: | ||
Gas requirement | Medical oxygen and nitrous oxide with a pressure ranging from O2: 0.32~0.6MPa ; NO2: 0.32 MPa to 0.6 MPa. | |
Safety valve | <12.5 kPa | |
Respiratory Rate | 4~40bpm | |
Flow meter | O2:0.1~10L/Min, N2O:0.1~10L/Min | |
Oxygen concentration in the mixed gas N2O/O2 | > 21% | |
Oxygen Flush: | 25~75 L/min | |
Maximum error of the pressure testing device | not exceed ± (4% of the full scale reading + 8% of the actual reading) | |
modes of ventilation | A/C,IPPV, SIPPV, MANUAL | |
