Crono Alaris ResinOperation Theatre Equipment Blood Vacuum Infusion Pump
Price:
$245.00/Sets >=1 Sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
Longermay
Product Description
Product Description
Medical veterinary iv set for smart electronic infusion pump syringe pump vet

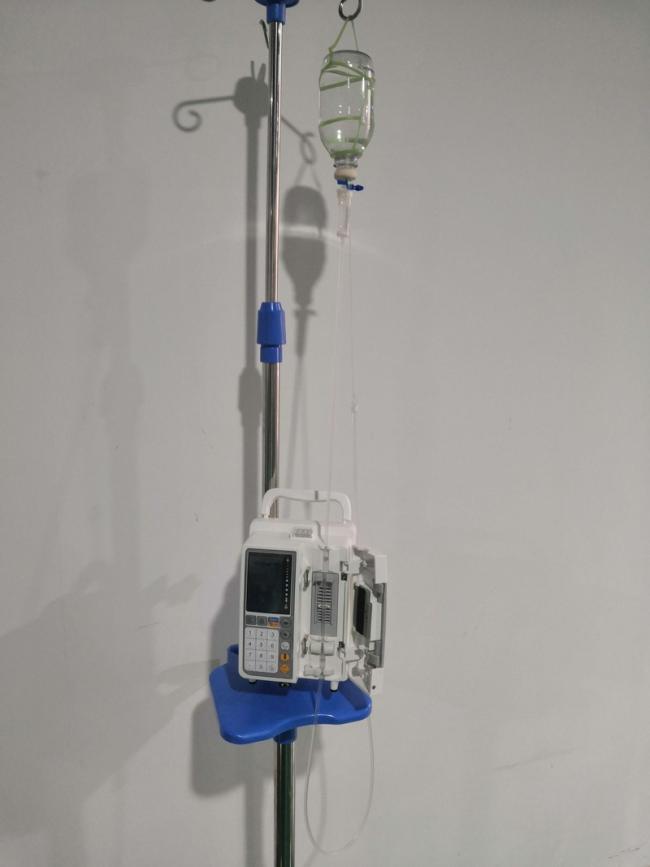

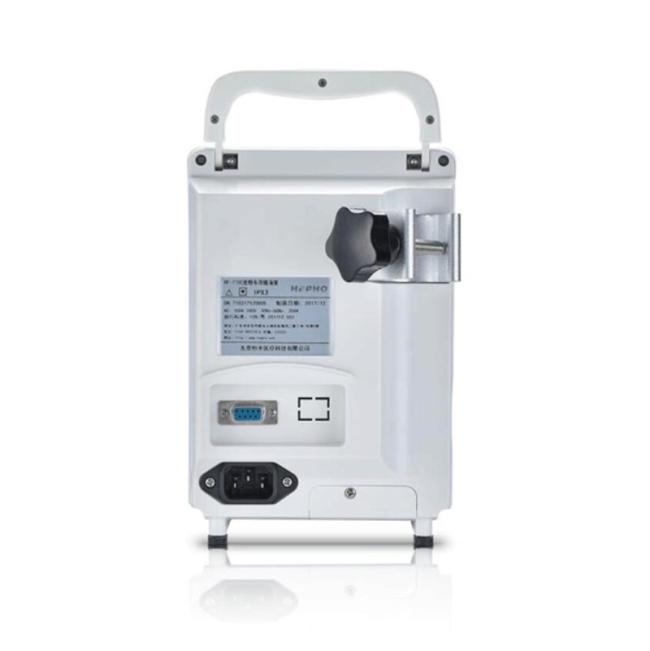

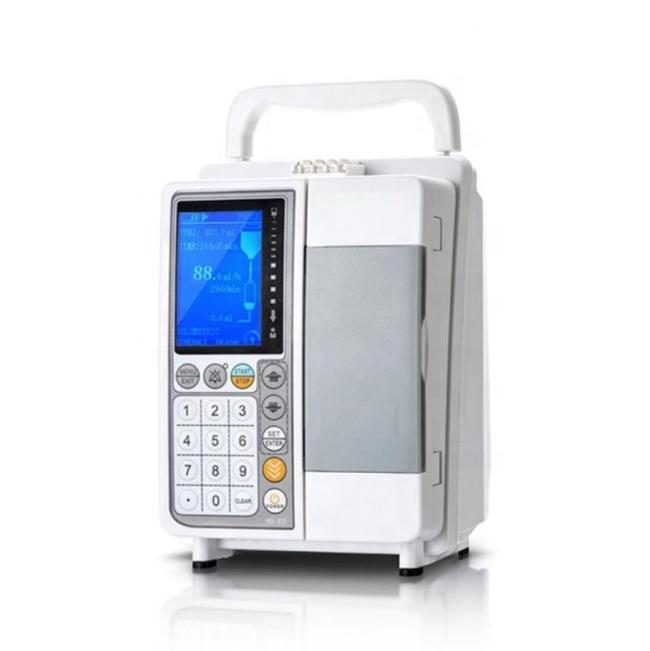

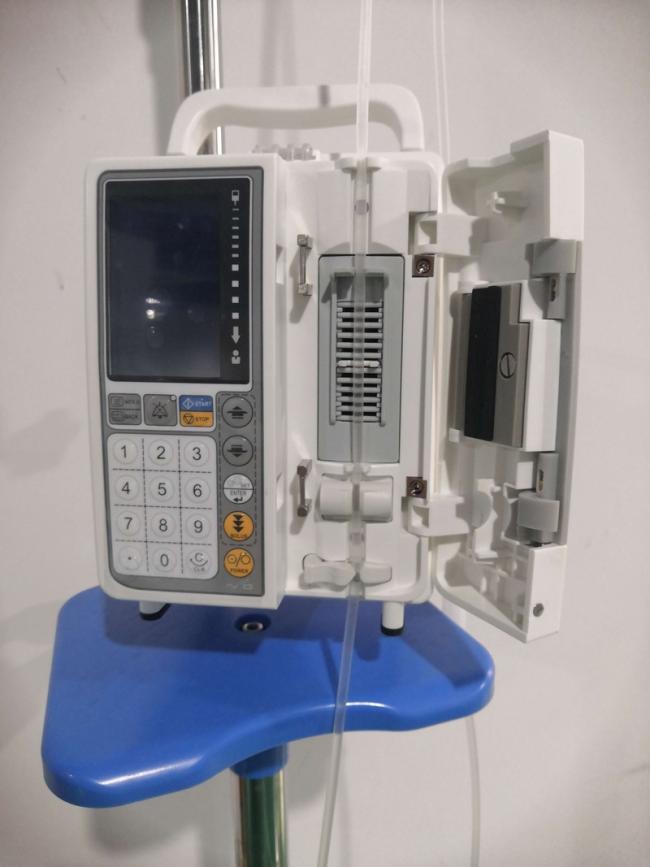

Details Images
|
Item
|
Technical Parameter
|
|
IV Sets
|
Standard single use IV sets(20 and 60d/ml, with diameter 3.4~4.5mm)
|
|
Flow Rate Range
|
1.0ml/h with 0.1ml/h; 100-1200ml/h with 1ml/h
|
|
Flow Rate Increment
|
1.0-100ml/h with 0.1ml/h; 100-1200ml/h with 1ml/h
|
|
Flow Rate Deviation
|
<±5%(after calibration)
|
|
VTBI
|
0.1~9999ml
|
|
Infused Volume
|
0~999ml
|
|
Time Setting
|
1 min to 99h59min
|
|
Purge Rate
|
600ml/h, displaying purge volume
|
|
KVO
|
1ml/h~5ml/h, adjustable
|
|
Keypad
|
Numeric Keypad, user friendly
|
|
BOLUS Mode
|
Available for Bolus mode, flow rate adjustable
|
|
Night Mode
|
Night mode, No operation for 5mins, LCD brightness lower automatically
|
|
Occlusion Pressure Detection
|
Occlusion Pressure Sensor, detection range: 40-140Kpa, 10 levels adjustable, auto pressure release function
|
|
Air-in-line Detection
|
Air bubble detected by ultrasonic with 10 setting, 50~300渭L
|
|
Alarm &Volume
|
10 settings
|
|
Anti-reverse Function
|
Anti-reverse function on motor to prevent upstream
|
|
IV Set Management
|
Open System, Can accept all kinds of IV Set after calibration
|
|
Self-Testing
|
Self-Testing when start up and during infusing
|
|
Audio and Visual Alarms
|
Air-in-line, Door open, occlusion, parameter, IV Ste not calibrated, infusion finished, No operation, Leakage, battery low, Pump
error. Motor reverse, AC power lost, etc. |
|
Display
|
3.5” Brightness LCD
|
|
AC power
|
AC:100V~240V, 50Hz/60Hz,≤25VA
|
|
Battery
|
Rechargeable Lithium battery: DC11.1V, 3000mAh, life:≥10 hours remaining battery displayed
|
|
Operation
|
Temperature: 5℃~40℃, Relative humidity:20%~90%, Atmospheric pressure:70~106Kpa
|
|
Transportation and Storage
|
Temperature: 20℃~55℃, Relative humidity:10%~90%, Atmospheric pressure:70~106Kpa
|
|
Classification
|
Class I, CF, IP*3
|
|
Dimension
|
150mm*10mm*210mm
|
|
Weight
|
1.7KG
|

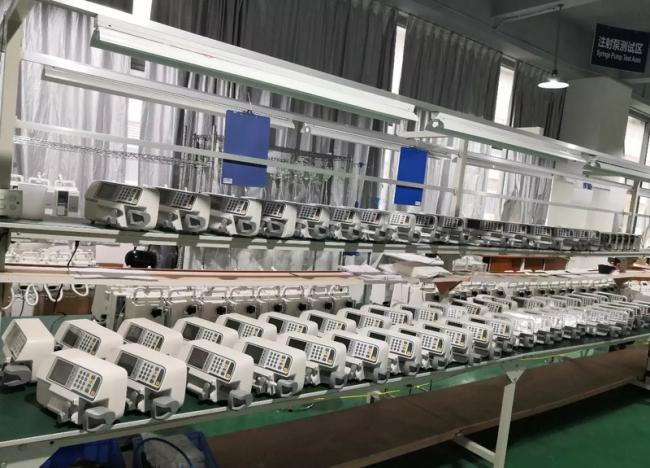

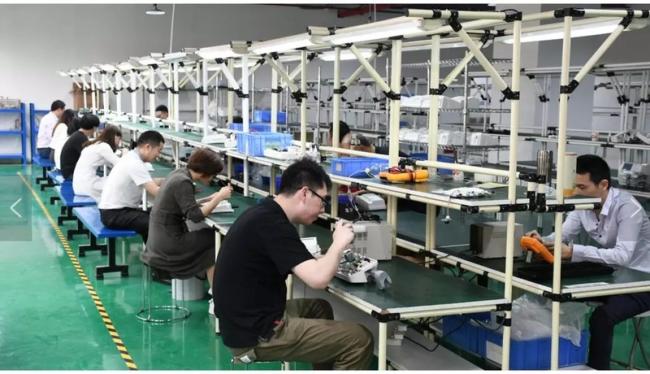

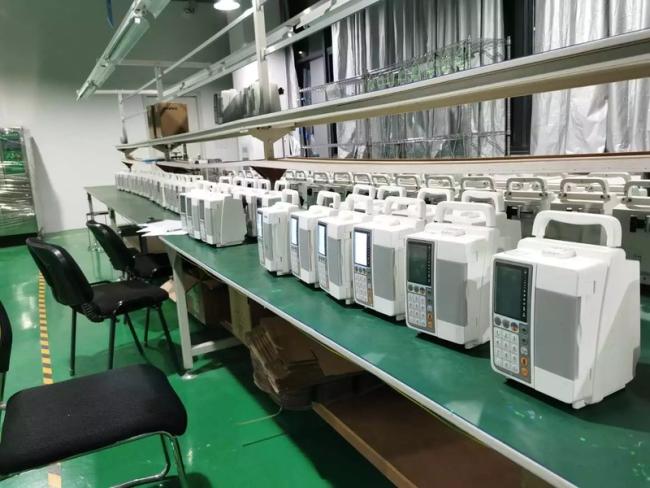

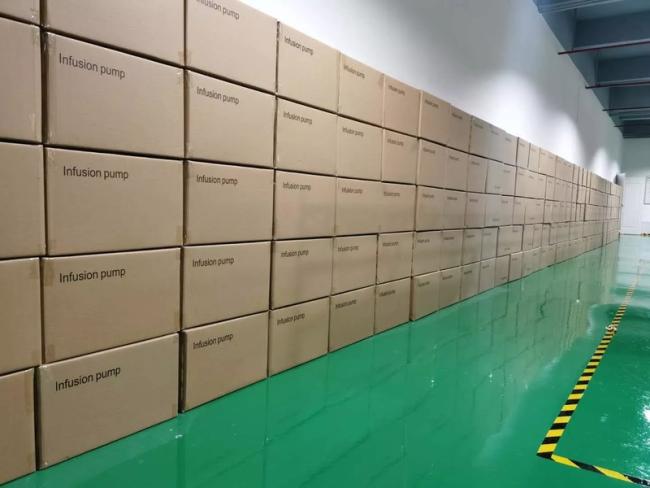

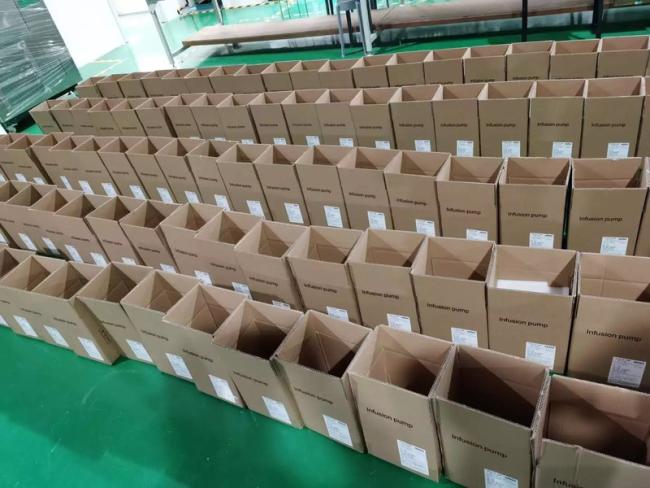

Company Profile
