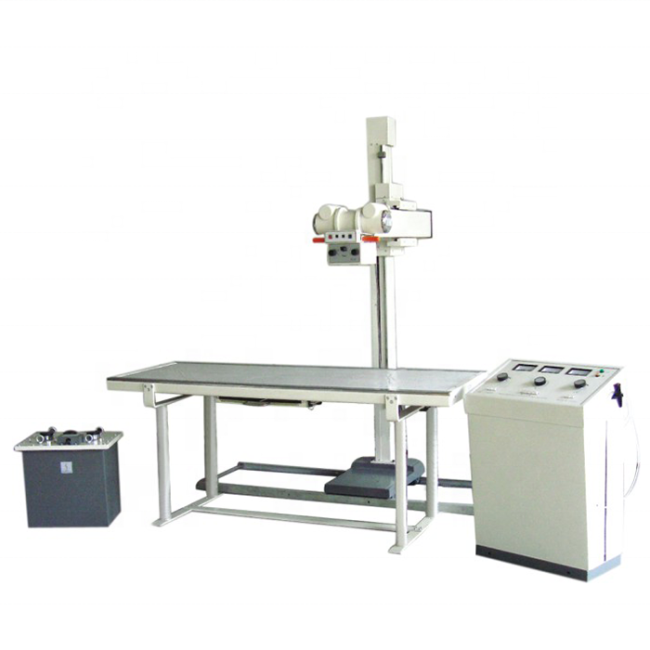

medical Radiology X Ray Machine Singl Phase 220V 700Kg Gross Weight:
Price:
$3,200.00 - $4,000.00/Sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
Logermay
Product Description
Product Description
Digital x ray machine with good prices
Product description

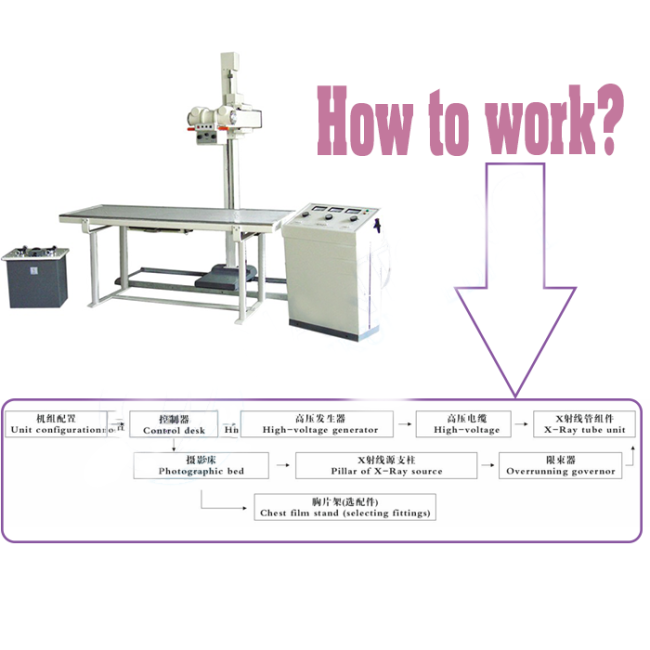

1.Single focus, full-wave rectifier, combined x-ray generator
2.SCM controll(easy to maintain and repai)

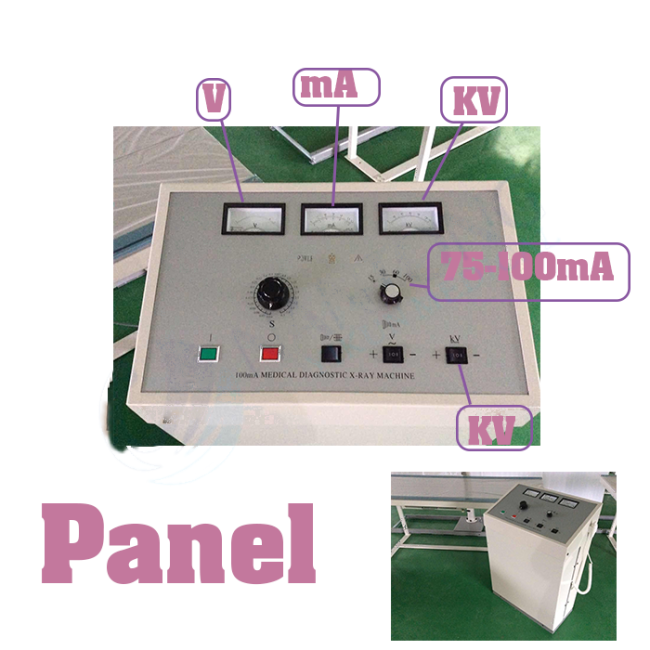

3.High visual and operational console with LCD monitor
4.Perstore 8 kinds of photography parameters and select, modify.store the parameters under the condition of choice
5.Power voltage(V),photograph kilovolt(KV) infinitely variable control
6.Premier high voltage with high power scr zero control circuit
7.Function of load chains, exposure time control, auto alarm, preheat filament, subasseblies temperature control, and so on

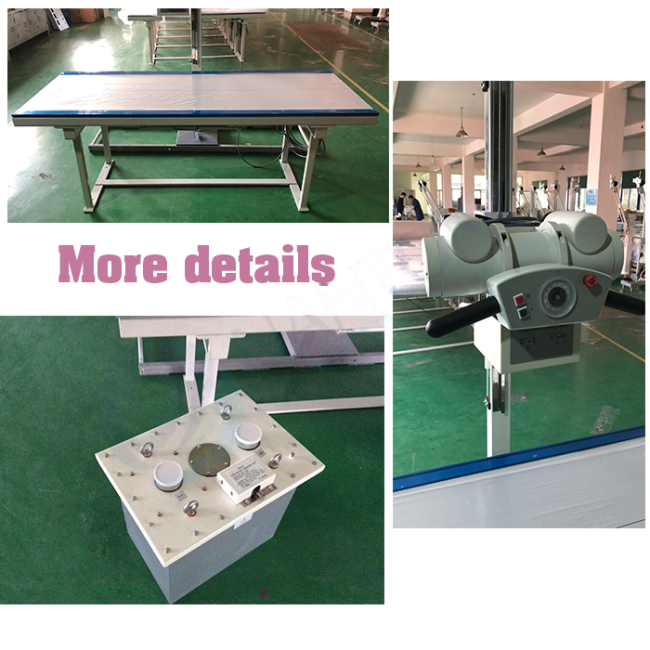

8.Cantilever structure makes the small volume and easily moving

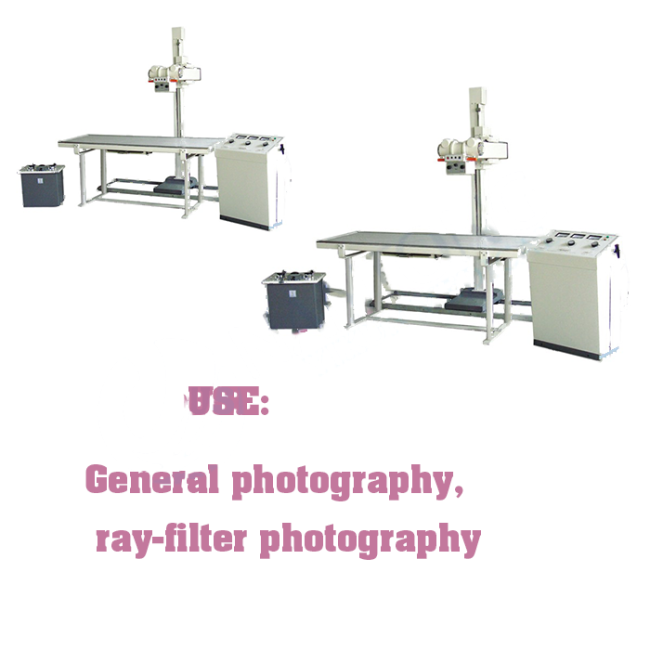

Usage:
General photography, ray-filter photography
Main Features:
2.SCM controll(easy to maintain and repai)
3.High visual and operational console with LCD monitor
4.Perstore 8 kinds of photography parameters and select, modify.store the parameters under the condition of choice
5.Power voltage(V),photograph kilovolt(KV) infinitely variable control
6.Premier high voltage with high power scr zero control circuit
7.Function of load chains, exposure time control, auto alarm, preheat filament, subasseblies temperature control, and so on
8.Cantilever structure makes the small volume and easily moving
Specification
|
Demand of power supply
|
Veitage
|
Singlephase 220V/380V±10%
|
|
|
|
Frequency
|
50Hz±1Hz
|
|
|
|
Capacity
|
10kV.ρ
|
|
|
|
Internal resistance
|
220V:0.6 Ω 380V:2 Ω
|
|
|
Photograph
|
Voltage
|
50-90kV
|
|
|
|
Current
|
(small focus):16mA,
|
|
|
|
|
(big focus):32mA,63mA,100mA
|
|
|
|
Time
|
0.04 - 6.3s, 22 grades together
|
|
|
high-voltage transformer unit
|
Capacity
|
7kVA
|
|
|
|
Max. DC output voltage
|
90kV
|
|
|
|
Max.DC output current
|
100mA
|
|
|
X-Ray tube
|
Model
|
XD4-2.9/100
|
|
|
|
Focus
|
(small focus):1.8mm (big focus):4.3mm
|
|
|
Photographic bed
|
Bed face (L×W×H)
|
1900mm×695mm×700mm
|
|
|
|
Ray-filter
|
(Grid density): N28
|
|
|
|
|
(convergence distance): 100cm
|
|
|
|
|
(Grid ratio): r8
|
|
|
Pillar of X-Ray source unit
|
moving in length
|
> 1350mm
|
|
|
|
movingin breadth
|
>360mm
|
|
|
|
moving up and down
|
720-1800mm
|
|
|
Maxsize cassette for photograph
|
|
365mm432mm
|
|
|
Gross weight
|
700Kg
|
|
|
|
Net weight
|
550Kg
|
|
|
|
External dimensions
|
2180*800*130mm
|
|
|
|
Focus of X-Ray tube
|
Photograph current(mA)
|
Max Photograph Voltage(KVp)
|
Max allowable exposure time(S)
|
|
Small focus |
15 |
90 |
6.3 |
|
Big focus |
30
|
90
|
6.3
|
|
|
60
|
90
|
6.3
|
|
|
100
|
85
|
2.5
|
