Zimmer Handpiece Operating Room Equipments Surgical Orthopedic
Price:
$200.00 - $500.00/Sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
Longermay
Product Description
Product Description
Zimmer Handpiece Surgical
Orthopedic Drill
Orthopedic Drill
System A Features:
1. Made of High-strength biochemical stainless steel!!
2. Ergonomic design, safe and easy to use!!
3. Imported Motor, excellent performance!!
4. No Limit speed-changing, convenient!!
5.High Coaxiality, Low-Noise!!
Warranty:
For whole machine is 1 year.
For motor is 2 years.
For the battery and other accessories is 3 months.
Notes:
1. Sterilize temperature ≤ 135 °C (Improved type ≤ 155 °C ),if the temperature is over 135 °C, the motor will be damaged.
2. Normal bone drill can only hold drill bits less than 6mm,acetabulum reaming drill with big torque,rpm is around 300,canulate
drill is used with nail or K wire ,rpm is around 600.
3. The battery need to be get out of the power tool after surgery.Otherwise the small automatic discharge of the electric will
make the life of the battery short.
4. The battery cannot be sterilized ,it is not autoclavable.
5. The cranial bur must be washed right after the surgery by purger in order to avoid the blood stick in the bur,then we should
make it dry.
6. The battery space in the handpiece of the tool should not have any water,after sterilization.
7. The cranial bur blade is made of medical stainless steel,in order to avoid broken,so it is flexible and not very hard,it is
easy to be attrite,we suggest each blade only use for 1 surgery.
1. Made of High-strength biochemical stainless steel!!
2. Ergonomic design, safe and easy to use!!
3. Imported Motor, excellent performance!!
4. No Limit speed-changing, convenient!!
5.High Coaxiality, Low-Noise!!
Warranty:
For whole machine is 1 year.
For motor is 2 years.
For the battery and other accessories is 3 months.
Notes:
1. Sterilize temperature ≤ 135 °C (Improved type ≤ 155 °C ),if the temperature is over 135 °C, the motor will be damaged.
2. Normal bone drill can only hold drill bits less than 6mm,acetabulum reaming drill with big torque,rpm is around 300,canulate
drill is used with nail or K wire ,rpm is around 600.
3. The battery need to be get out of the power tool after surgery.Otherwise the small automatic discharge of the electric will
make the life of the battery short.
4. The battery cannot be sterilized ,it is not autoclavable.
5. The cranial bur must be washed right after the surgery by purger in order to avoid the blood stick in the bur,then we should
make it dry.
6. The battery space in the handpiece of the tool should not have any water,after sterilization.
7. The cranial bur blade is made of medical stainless steel,in order to avoid broken,so it is flexible and not very hard,it is
easy to be attrite,we suggest each blade only use for 1 surgery.

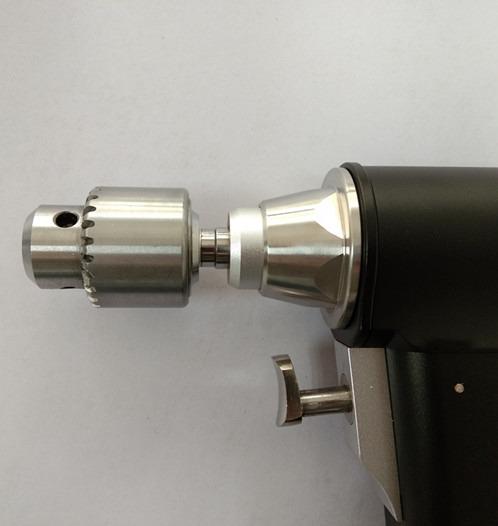

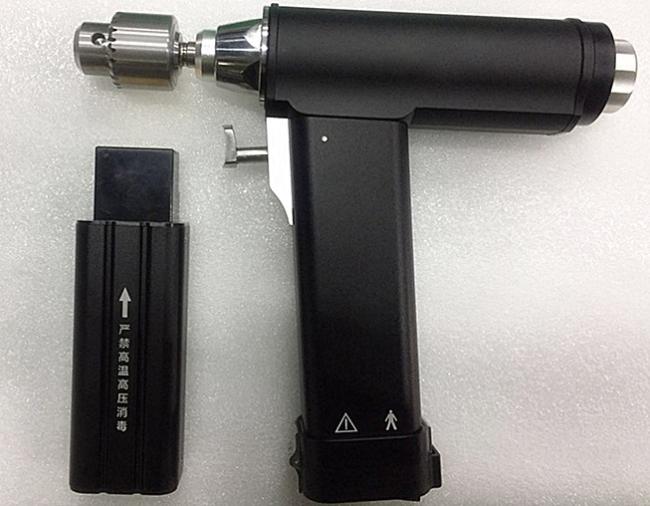

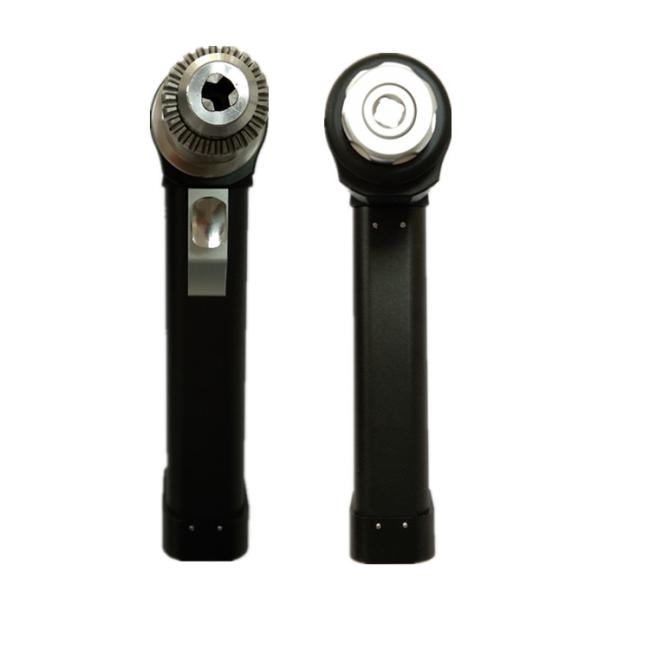

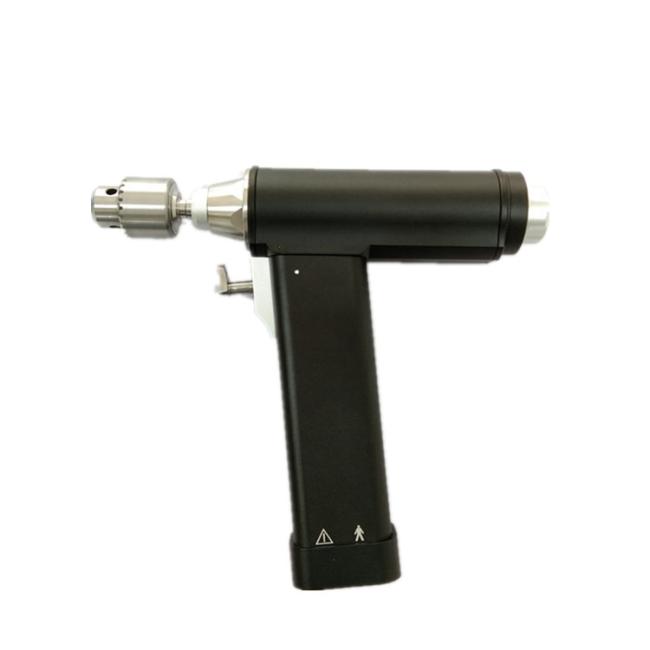

Details Images

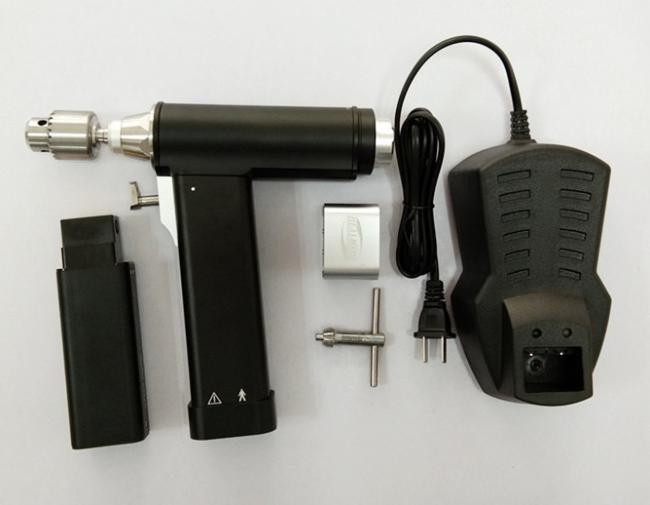

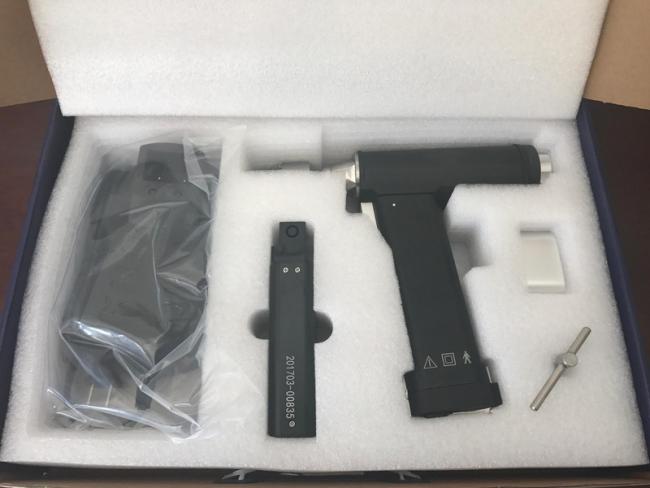

Configuration
|
Handpiece
|
1 PC
|
|
Battery
|
2 PCS
|
|
Charger
|
1 PC
|
|
Drill chuck
|
1 PC
|
|
Sterilizing channel
|
1 PC
|
|
Aluminum alloy case
|
1 PC
|
Specification
|
Item
|
Value
|
|
Speed
|
0-1200rpm
|
|
Torque
|
2N.m
|
|
Sterilization temperature
|
≤135℃
|
|
Noise
|
≤75dB
|
|
Operation(V) voltage
|
14.4V
|
|
Radial circle run-out
|
≤0.1mm
|
|
Axial movement
|
≤0.5mm
|
|
Battery capacity
|
1600mAh
|
|
Biggest drill bit diameter
|
8mm
|
