High Coaxiality Surgical Operating Room Equipments Bone Drill Hall Power
Price:
$500.00 - $800.00/Sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
Longermay
Product Description
Product Description

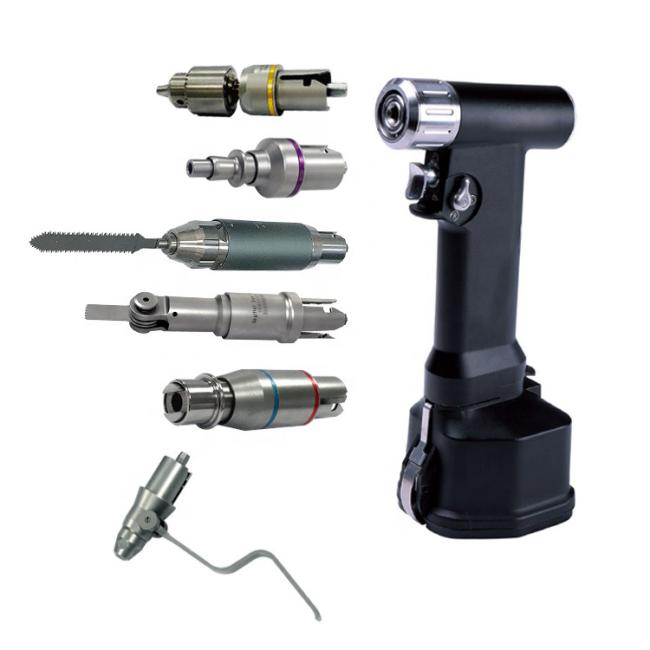

High Coaxiality Surgical Instruments Surgical Orthopedic Bone Drill
Key Chuck:
1. Speed Range 0-1200 Rpm
2. Torque 3.5Nm
3. Noise ≤40
Reaming Attachment:
1. Speed Range 0-400 Rpm
2. Torque 10Nm
3. Noise ≤40
System Features:
1.Imported Motor
2.No Limit speed-changing
3.High Coaxiality, Low-Noise
4.With the perfect shape of ergonomic design
5.Long service life. The warranty fo for whole machine is 1 year.
6.Whole unit can be autoclavable at 135 °C (Improved type ≤ 155 °C ),with 1.6Mpa
1. Speed Range 0-1200 Rpm
2. Torque 3.5Nm
3. Noise ≤40
Reaming Attachment:
1. Speed Range 0-400 Rpm
2. Torque 10Nm
3. Noise ≤40
System Features:
1.Imported Motor
2.No Limit speed-changing
3.High Coaxiality, Low-Noise
4.With the perfect shape of ergonomic design
5.Long service life. The warranty fo for whole machine is 1 year.
6.Whole unit can be autoclavable at 135 °C (Improved type ≤ 155 °C ),with 1.6Mpa
Warranty:
Warranty for whole machine is 1 year, for motor is 2 years, for the battery and other fast consumption items is 3 months.
Notes
1. Sterilize temperature ≤ 135 °C (Improved type ≤ 155 °C ),if the temperature is over 135 °C, the motor will be damaged.
2. Normal bone drill can only hold drill bits less than 6mm,acetabulum reaming drill with big torque,rpm is around 300,canulate drill is used with nail or K wire ,rpm is around 600.
3. The battery need to be get out of the power tool after surgery.Otherwise the small automatic discharge of the electric will make the life of the battery short.
4. The battery cannot be sterilized ,it is not autoclavable.
5. The cranial bur must be washed right after the surgery by purger in order to avoid the blood stick in the bur,then we should make it dry.
6. The battery space in the handpiece of the tool should not have any water,after sterilization.
7. The cranial bur blade is made of medical stainless steel,in order to avoid broken,so it is flexible and not very hard,it is
easy to be attrite,we suggest each blade only use for 1 surgery.
Warranty for whole machine is 1 year, for motor is 2 years, for the battery and other fast consumption items is 3 months.
Notes
1. Sterilize temperature ≤ 135 °C (Improved type ≤ 155 °C ),if the temperature is over 135 °C, the motor will be damaged.
2. Normal bone drill can only hold drill bits less than 6mm,acetabulum reaming drill with big torque,rpm is around 300,canulate drill is used with nail or K wire ,rpm is around 600.
3. The battery need to be get out of the power tool after surgery.Otherwise the small automatic discharge of the electric will make the life of the battery short.
4. The battery cannot be sterilized ,it is not autoclavable.
5. The cranial bur must be washed right after the surgery by purger in order to avoid the blood stick in the bur,then we should make it dry.
6. The battery space in the handpiece of the tool should not have any water,after sterilization.
7. The cranial bur blade is made of medical stainless steel,in order to avoid broken,so it is flexible and not very hard,it is
easy to be attrite,we suggest each blade only use for 1 surgery.
Specification
|
Item
|
Values
|
|
Speed Range(Key Chuck attachment)
|
0-1200rpm
|
|
Torque(Key Chuck attachment)
|
3.5N.m
|
|
Speed Range(Reaming Attachment)
|
0-400rpm
|
|
Torque(Reaming Attachment)
|
10N.m
|
|
Operation(V) voltage
|
9.6V
|
|
Radial circle run-out
|
≤0.1mm
|
|
Axial movement
|
≤0.5mm
|
|
Battery Volumn
|
2100mAh
|
|
Biggest drill bit diameter
|
8mm
|
|
Diameter of Cannulation
|
6.5mm
|
Details Images
Configuration
|
Orthopedic Multi Function Drill
|
Quantity
|
|
handpiece
|
1
|
|
battery
|
1
|
|
charger
|
1
|
|
Key chuck or reaming Attachment
|
1
|
|
sterilizing channel
|
1
|
|
aluminum alloy case
|
1
|
