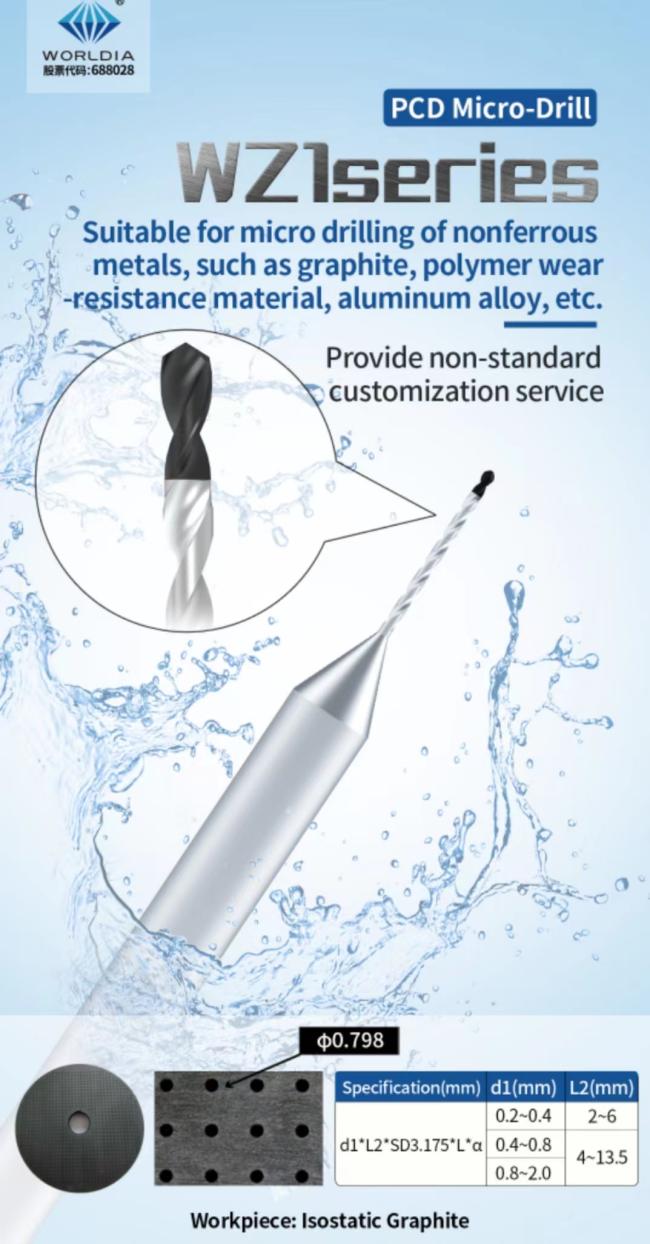

WZ1 Micro 0.2mm Pcd Drill For Aluminum Alloy
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
Worldia
Product Description
Customized d1*l2*sd3.175*l*α pcd micro-hole tipped drill bit tools for graphite drilling
PCD Micro Drill Features
- PCD Micro Drilling products cover semiconductor materials, metals, ceramics, and polymers.
- Highest technology laser manufactured micro PCD drills.
- PCD micro drills provide excellent hardness, wear resistance, and heat resistance.
PCD Micro Drill SPECIFICATION
| PCD Mirco drill Specification Selection Table | ||||||||
| Series | Specification | d1(mm) | L2(mm) | maximum diameter | D2 | L | α | Application |
| WZ1 | d1*L2*SD3.175*L*α | 0.2-≤0.4 | 2~6 | 32 | 3.175 | 38/45 | 110°-130° | Graphite, polymer wear-resisting material. aluminum allow and other non-ferrous metals |
| 0.4-≤0.8 | 4~13.5 | |||||||
| 0.8-<2.0 | ||||||||
Non-standard products can be customized!
PCD Micro Drill Slot Structure and Drill Tip
- The grinding groove is smooth and the chip removal is excellent;
- The edge surface is polished and the main edge is sharp
- Drill Dia starting From 0.1mm
| Diameter range | 0.1-1.5mm |
| 0.1-0.2mm | Maximum diameter:15 |
| 0.25-0.6mm | Maximum diameter:30 |
| 0.65-1.5mm | Maximum limit length:19 |
PCD Micro Drill Category and Application Field
PCD Micro drill has a laser and beam delivery design optimized for a specific application and can be configured for manual or automatic operation, allowing customers to buy exactly the application solution they need.
PCD Micro Drill Processing Case
PCD Micro Drill Patent Certificate
