PCBN Face Milling Cutter with indexable insertsfor finishing on end milling of cast iron
Price:
Further discussion
MOQ:
10PCS
Delivery Time:
10-20days
Brand:
Worldia
Product Description
Description
Worldia PCBN Face Milling Cutter with indexable inserts used for finishing on end milling of cast iron,it can satisfy the demand for surface roughness and geometric toklerances.
-
Hardened steel
-
Cast irons (Recommend)
-
Sintered irons
-
Power Metallurgy
Product Usage
According to grain size and features of PCBN Face milling cutter insert,We provide two types of CBN material,i.e PNK0119 / PNH3019 are listed as below.
| P | ||
| M | ||
| K | · | |
| N | ||
| S | ||
| H | · | |
| Maretial | PNK0119 | PNH3019 |

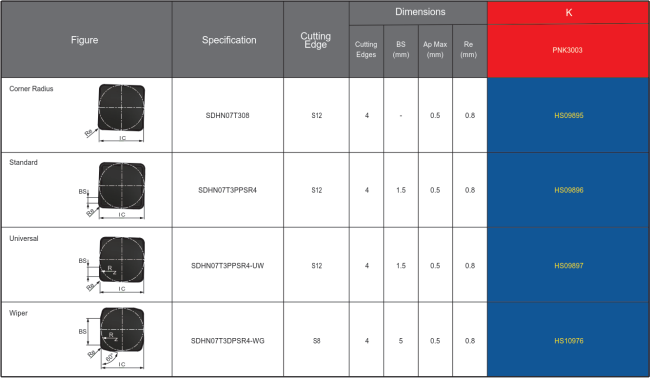

CBN Milling Inserts
CBN milling inserts specifications
PCBN full-face milling inserts with various angles and wipers for finish face milling of cast iron and hardened materials.

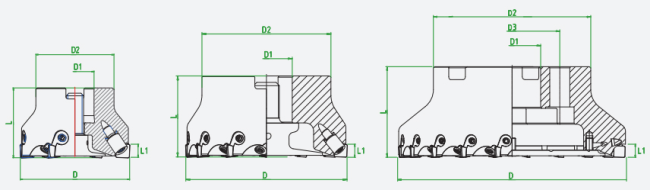

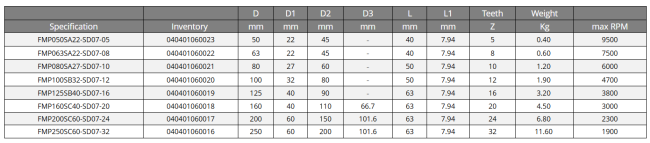

Specifications

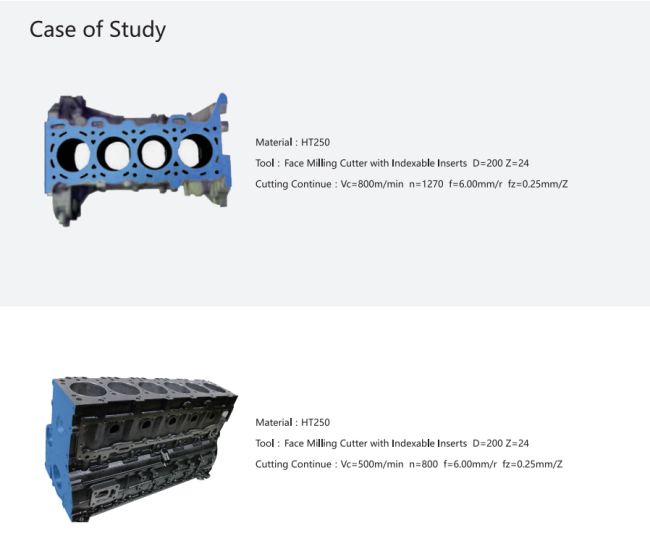

Processing Case
