Hot DIP Galvanized Steel Plate Coil Sheet 4.0mm Z275 Az150
Hot DIP Dx51d Galvanized Steel Sheet Price Z275 Az150 Galvalume Steel Sheet
How to Calculate GI Sheet Weight?
The GI sheet weight follows the calculation formula: W= Thickness (mm) * Width (m) * Length (m) * 7.85 (Density of steel = 7.85 kg/m3) + zinc layer weight
Taking gauge 18 GI sheets (G90) for example, the thickness is about 1.31 mm. The zinc layer is about 275 g/m2. So the galvanized sheet weight per square meter is about 10.58 kg. You can roughly get the weight. If your galvanized sheet is 0.7 mm in thickness, 1.2 m in width, and 2.5 m in length, the weight is about 16.5 kg/piece (0.7*1.2*2.5). If you order 50 tons, there will be about 3,000 pieces. You can estimate how many GI sheets are needed for your project easily.
Product Description
| SPECIFICATION PARAMETER | |
| Commodity | Galvanized Steel Sheet |
| Grade | Q195, Q235 |
| SGCC, SGCH, SGC340, SGC400, SGC440, SGC490, SGC570 | |
| SGHC, SGH340, SGH400, SGH440, SGH490, SGH540 | |
| DX51D, DX52D, DX53D, DX54D | |
| S220GD, S250GD, S280GD, S320GD, S350GD, S400GD, S500GD, S550GD | |
| Standard: | AISI, ASTM, BS, DIN, GB, JIS |
| Zinc coated: | 30 g/m2-275 g/m2 |
| Spangle | Zero spangles (0.12-2.0 mm), 0.7-4 mm with small spangles, regular (big) spangles |
| Surface treatment | Chromated, oiled and anti-fingerprint |
| Thickness | 0.12-4.0mm |
| Width | 600-2000mm |
| Supply Ability | 40000MT/month |
| MOQ | 5MT |
| Packaging | Export standard, seaworthy |
| Substrate | Cold rolled, Hot rolled |
| ID | 508mm or 610mm |
| Certificates | SGS, BV, ISO 9001 |
| Trade Term | FOB, CFR, CIF |
| Payment terms | T/T, L/C at sight, West Union, D/P, D/A, Paypal |
| Delivery time | 14days after confirmed order |
| Loading port | Tianjin port |
| Container size | 20ft GP: 5898mm(Length)x2352mm(Width)x2393mm(High) |
| 40ft GP: 12032mm(Length)x2352mm(Width)x2393mm(High) | |
| 40ft HC: 12032mm(Length)x2352mm(Width)x2698mm(High) | |

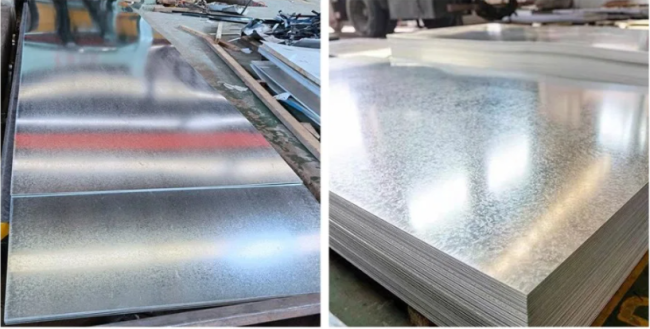

Different Surface:Small,Large,Zero.Select as per your requirement
Packing and Delivery
FAQ
Answer: If you insist on buying one piece, or you only need one piece, we are likely to produce MOQ for you in batches.
