3 Phase AC Induction Gear Motor AC 220V 120mm 400w 7IK400GU-SF

7IK400GU-SF Three Phase AC 220V 120mm 400w AC Induction Gear Motor

CHE AC Induction Gear Motor Features:

1. CHE provide round shaft gear motors and pinion shaft type gear motors, very convenient for your machines

4. CHE induction gear motors have variable size and power:

5. Widely used in those industries

6.AC Types: Speed Control Gear Motors; Brake Gear Motors; Torque Gear Motors; Reversible Gear Motors; Speed Control Gear Motors; Right Angle Gear Motors; Motor Speed Controller;

DC Types: Brush DC Gear Motor; Brushless DC Gear Motors; Brush Planetary Gear motor; Brushless Planetary Gear Motor;

High Precision Planetary Gearboxes: Helical Gear & Spur Gear type;

List of AC Induction Motor with Gearbox Characteristics:

Gear Motor Reduction Ratio:

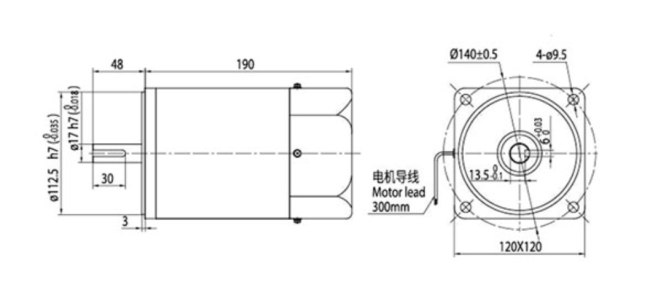

Round Shaft Gear Motor Drawings:

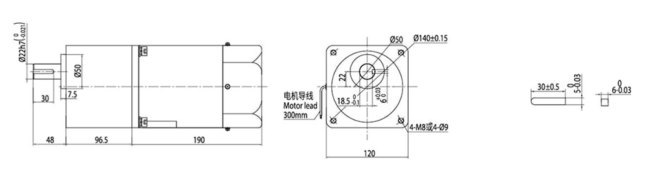

Lead Wire Type Motor + Standard Gearbox Drawings:

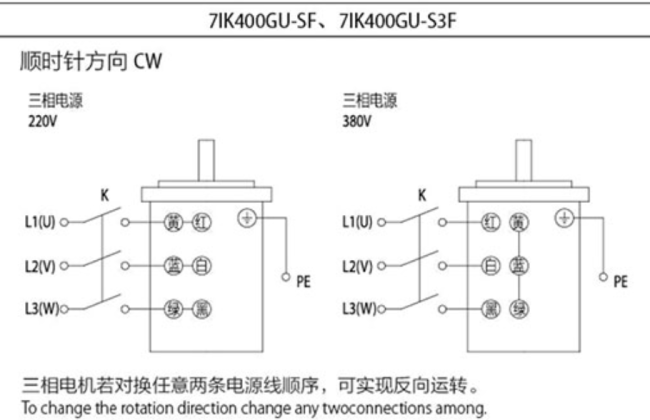

Gear Motor Wiring Diagram:

• The direction of motor roation is as viewed from the shaft end of motor CW represents the clockwise direction, while CCW represents the couterclockwise direction.
• Name indicated in the list is pinion shaft type gear motor, but is also foe the round shaft type gear motor.

Pls note:

• Change the direction of the single-phase motor rotation only after the motor stop work
• If an attempt is made to change the direction of rotation while the motor is rotating, motor may ignore reversing command or appearing delay in changing its direction of rotation.
