China Permanent Magnet Planetary Gear Motor 60w 52mm 24v 0.191Nm Rated Torque for sale

Permanent Magnet Planetary Gear Motor 60w 52mm 24v 0.191Nm Rated Torque

Price Negotiable

Price: Negotiable

MOQ: 1 unit

Delivery Time: 3~7 working days for sample

Brand: CHE

Product Description

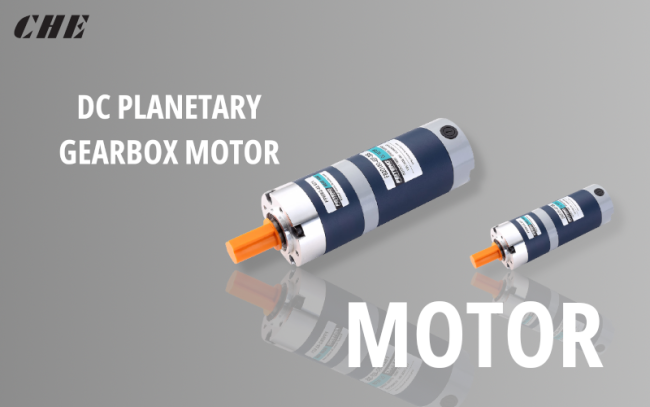

FPM52D60-24P-FPM52D60-24P-30S Permanent Magnet 60w 52mm 24v DC Brushed Planetary Gearbox Motor

A brush planetary gear reducer motor featured:

* 【ALL-METAL GEARS】: High-temperature resistance, high abrasion resistance, strong load capacity, sturdy and durable, effectively protect the gear box motor body.

* 【PURE COPPER WIRE CORE ROTOR】: With precision winding technology, the geared motor power instant increased by 30%.

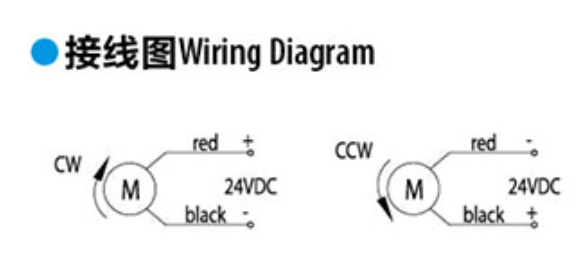

* 【POSITIVE-NEGATIVE ROTATION】: You also can adjust the speed, but the motor speed can only be reduced, can not be raised. Low

noise and high torque, such as 10rpm can drive 15 kilograms.

* 【RELIABLE GURANTEE】: Any quality issues, we promise 100% unconditional return service. If you need other voltage and rpm,

please feel free to contact us!

Motor Model

Voltage

Power

No-load Current

No-load Speed

Rated Current

Rated Speed

Rated Torque

F52D90-24P-30S

24v

60w

1.2A

3600rpm

4.0A

3000RPM

0.191Nm

Stage	1-Stage Ratio					2-Stage Ratio
Ratio	3.91	4.29	5.18	6.75	13.7	13.3	15.9	19.2	22.2	28.9	35.0	45.6
Output Torque(N.m)	0.64	0.74	0.89	1.16	2.1	2.5	2.8	3.0	4.4	4.5	5.4	7.0
Outpit Speed(rpm)	808.6	699.3	579.2	444.4	218.5	188.9	163.3	156.3	135.1	103.7	85.8	65.8
Stage	3-Stage Ratio
Ratio	50.9	58.9	68.1	78.7	82.3	92.7	107.2	115.1	129.6	149.9	236.1	307.6
Output Torque(N.m)	7.1	8.2	9.5	11.0	11.5	12.9	14.9	16.0	18.1	20.9	19.0	12.0
Outpit Speed(rpm)	58.9	51.0	44.1	38.1	36.4	32.4	28.0	26.1	23.1	20.0	12.7	9.8
