F5D90 90mm 24 Volt DC Gear Motor 90w , Brush Gear Motor DC 12v 90v
Price:
Negotiable
MOQ:
1 unit
Delivery Time:
3~7 working days for sample
Brand:
CHE
Product Description
F5D90 90mm 24 Volt DC Gear Motor 90w, Brush Gear Motor DC 12v 90v
A brush motor is a permanent type brush DC motor. A brush motor can also be called a "brushed motor", "permanent-magnet field type commutator motor", "governorless motor", or "permanent-magnet DC motor". These motors are most commonly used for models, automobile auxiliary devices, and other applications all over the world. If you have any questions regarding the requirement of controllers to use, please contact our engineering team.
Motor Parameters:
| Model | Voltage | Power | No-load Parameter | Load Parameter | Brush lLife | Motor Weight | |||
| Speed | Current | Speed | Torque | Current | |||||
| V | W | r/min | A | r/min | mN.m | A | H | kg | |
| F5D90-12 | 12 | 90 | 3400 | 1.7 | 3000 | 286 | 10.2 | 2000 | 2.2 |
| F5D90-24 | 24 | 90 | 3350 | 0.9 | 3000 | 286 | 5.2 | 2000 | 2.2 |
| F5D90-90 | 90 | 90 | 3300 | 0.35 | 3000 | 286 | 1.4 | 2000 | 2.2 |
| F5D90-12 | 12 | 90 | 2200 | 1.1 | 1800 | 477 | 10.2 | 2000 | 2.2 |
| F5D90-24 | 24 | 90 | 2150 | 0.7 | 1800 | 477 | 5.2 | 2000 | 2.2 |
| F5D90-90 | 90 | 90 | 2100 | 0.3 | 1800 | 477 | 1.4 | 2000 | 2.2 |
- Motor voltage, power and speed will be customized according to your requirements under allowed circumstance.
- For external brush motor, customer can replace the brush directly. For internal ones, we need to disaaembly the motor first. F6D series motor is external motor
Gear Ratio Performance:
| Model | Gear Ratio | 3 | 3.6 | 5 | 6 | 7.5 | 9 | 10 | 12.5 | 15 | 18 | 20 | 25 | 30 | 36 | 40 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | 200 |
| F5D90-24-30S | Speed (r/min) | 999 | 833 | 600 | 500 | 400 | 333 | 300 | 240 | 200 | 166 | 150 | 120 | 100 | 83 | 75 | 60 | 50 | 40 | 33 | 30 | 25 | 20 | 16.5 | 15 |
| Torque (N.m) | 0.69 | 0.83 | 1.16 | 1.39 | 1.74 | 2.09 | 2.09 | 2.61 | 3.13 | 3.75 | 3.75 | 4.69 | 5.63 | 6.76 | 7.51 | 9.38 | 11.25 | 14.07 | 15.2 | 16.89 | 20 | 20 | 20 | 20 | |
| F5D90-24-18S | Speed (r/min) | 600 | 500 | 360 | 300 | 240 | 200 | 180 | 144 | 120 | 100 | 90 | 72 | 60 | 50 | 45 | 36 | 30 | 24 | 20 | 18 | 15 | 12 | 10 | 9 |
| Torque (N.m) | 1.16 | 1.39 | 1.93 | 2.32 | 3.48 | 3.86 | 4.35 | 5.22 | 6.26 | 6.95 | 7.82 | 9.39 | 11.27 | 12.52 | 15.65 | 18.78 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |

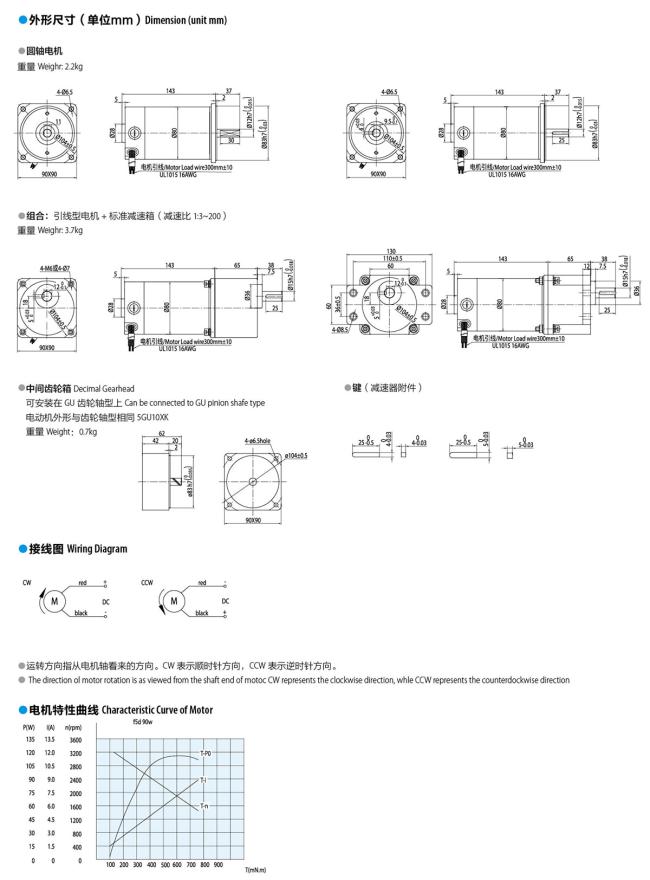

90w 90mm Brush DC Gear Motor Drawings:
