ZZ60 Planetary Gear Reducer , Spiral Bevel Gear Box 60mm 90mm 130mm

Price Negotiable

Price: USD, RMB, EUR

MOQ: 1 unit

Delivery Time: 3~7 working days for sample

Brand: CHE

Product Description

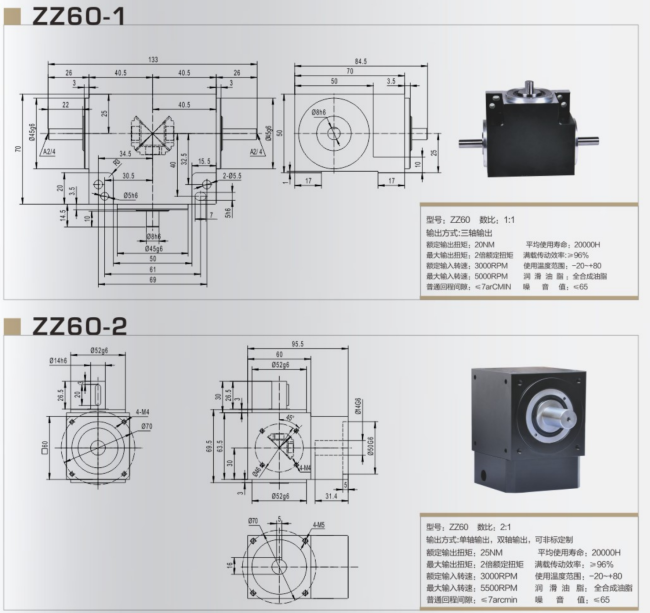

ZZ60 Spiral Bevel Gear Box

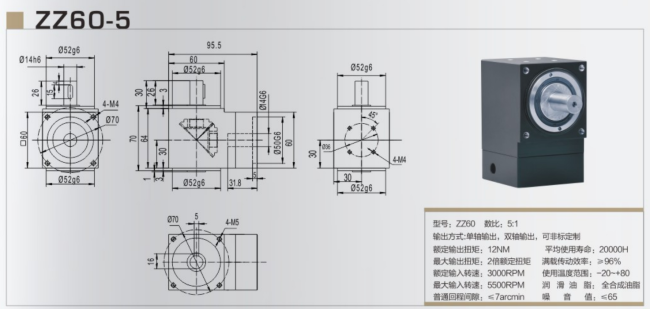

Model	ZZ60-1	ZZ60-2	ZZ60-5	ZK60-2	ZPTZ60-2	ZPTZ60-5
Gear Ratio	1:1	2:1	5:1	2:1	2:1+gearbox	5:1+gearbox
Output Method	Three shaft	Single or Double Or Customed	Single or Double Or Customed	Hole Output	Single or Double Or Customed	Single or Double Or Customed
Rated Torque	20Nm	25Nm	12Nm	25Nm
Maxmium Torque	40Nm	50Nm	24Nm	50Nm
Rated Speed	3000rpm	3000rpm	3000rpm	3000rpm	3000rpm	3000rpm
Maxmium Speed	5000rpm	5500rpm	5500rpm	5000rpm	5500rpm	5500rpm
Return Clearance	≤7arCMIN	≤7arCMIN	≤7arCMIN	≤7arCMIN	≤12arCMIN	≤12arCMIN
Service Life	20000h	20000h	20000h	20000h	20000h	20000h
Full Load Efficency	≥96%	≥96%	≥96%	≥96%	≥96%	≥96%
Working Temperature	-20~+80℃	-20~+80℃	-20~+80℃	-20~+80℃	-20~+80℃	-20~+80℃
Grease	Fully synthetic grease	Fully synthetic grease	Fully synthetic grease	Fully synthetic grease	Fully synthetic grease	Fully synthetic grease
Noise Value	≤65	≤65	≤65	≤65	≤65	≤65
