5IK90GU-CF 1Ph 220VAC Asynchronous Electric Gear Motor 90w
Price:
Negotiable
MOQ:
1 unit
Delivery Time:
3~7 working days for sample
Brand:
CHE
Product Description
5IK90GU-CF 1Ph 220VAC Asynchronous Electric Gear Motor 90w
FEITENG AC Induction Gear Motor Features:
1. Coaxial helical gear motor has compact structure, small volume, beautiful shape and strong overload capacity.
2. Low energy consumption, superior performance, reducer efficiency up to 96%, low vibration, low noise.
3. CHE induction gear motors have variable size and power:
| 6w | 15w | 25w | 40w | 60w | 90w | 120w | 200w |
| 60mm | 70mm | 80mm | 90mm | 90mm | 90mm | 90mm | 104mm |
4. Widely used in those industry
* Metering Pump
* Consumer Electronics
* Cordless Power Tools
* Drones
* Dental Tools
* Consumer Electronics
* Cordless Power Tools
* Drones
* Dental Tools
* HVAC Systems
* Industrial Automation
* Printers & Copiers
* Robotics
* Medical Tools
* Industrial Automation
* Printers & Copiers
* Robotics
* Medical Tools
List of Motor Characteristics:
| Motor Model | Output Power | Voltage | Frequency | Current | Rated Speed | Rated Torque | Statring Torque | Capacitor | |
| Pinion Shaft | Round Shaft | W | V | Hz | A | r/min | mN.m | mN.m | μF/VAC |
|
5IK90GU-CF |
5IK90A-CF | 90 | 1ph220 | 50 | 0.64 | 1350 | 643 | 459 | 5.0/450 |
| 60 | 0.71 | 1550 | 530 | 450 | |||||
| 5IK90GU-AF | 5IK90A-AF | 90 | 1ph110 | 50 | 1.26 | 1350 | 646 | 475 | 25.0/250 |
| 60 | 1.4 | 1550 | 525 | 489 | |||||
| 5IK90GU-SF | 5IK90A--SF | 90 | 3ph220 | 50 | 0.74 | 1350 | 625 | 2800 | / |
| 60 | 0.61 | 1550 | 527 | 2150 | |||||
| 5IK90GU-S3F | 5IK90A-S3F | 90 | 3ph380 | 50 | 0.42 | 1350 | 625 | 2660 | / |
| 60 | 0.435 | 1550 | 519 | 2030 | |||||
Gear Reduction Ratio:
| Gear Ratio | 3 | 3.6 | 5 | 6 | 7.5 | 9 | 10 | 12.5 | 15 | 18 | 20 | 25 | 30 | 36 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | 200 | |
| 50Hz | Speed (r/min) | 450 | 375 | 270 | 225 | 180 | 150 | 135 | 108 | 90 | 75 | 67.5 | 54 | 45 | 37.5 | 3.7 | 22.5 | 18 | 15 | 13.5 | 11.3 | 9 | 7.5 | 6.75 |
| Torque(Nm) | 1.563 | 1.88 | 2.6 | 3.125 | 3.91 | 4.69 | 5.1 | 5.86 | 7.03 | 8.44 | 8.8 | 10.55 | 12.66 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | |
| 60Hz | Speed (r/min) | 516 | 430 | 310 | 258 | 206 | 172 | 15 | 124 | 103 | 86.1 | 77.5 | 62 | 51.6 | 43.1 | 31 | 25.8 | 20.6 | 17.2 | 15.5 | 12.9 | 10.3 | 8.6 | 7.75 |
| Torque(Nm) | 1.29 | 1.55 | 2.15 | 2.58 | 3.22 | 3.86 | 4.3 | 4.83 | 5.8 | 6.96 | 7.3 | 8.69 | 10.43 | 12.52 | 13.91 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | |

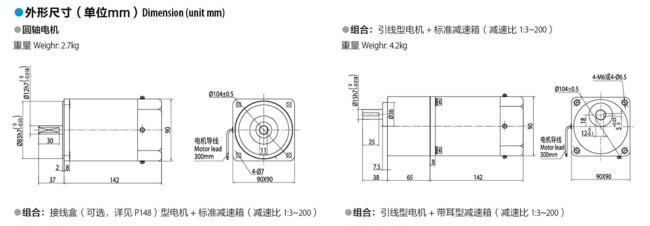

Gear Motor Drawings:
Wiring Diagram:
