1Phase 220v Small AC Gear Motor 15w 70mm 1250rpm Gear Motor
CHE AC Induction Gear Motor Features:
1. Coaxial helical gear motor has compact structure, small volume, beautiful shape and strong overload capacity.
2. Low energy consumption, superior performance, reducer efficiency up to 96%, low vibration, low noise.
3. CHE induction gear motors have variable size and power:
| 6w | 15w | 25w | 40w | 60w | 90w | 120w | 200w |
| 60mm | 70mm | 80mm | 90mm | 90mm | 90mm | 90mm | 104mm |
4. Widely used in those industry
* Metering Pump
* Consumer Electronics
* Cordless Power Tools
* Drones
* Dental Tools
* Consumer Electronics
* Cordless Power Tools
* Drones
* Dental Tools
* HVAC Systems
* Industrial Automation
* Printers & Copiers
* Robotics
* Medical Tools
* Industrial Automation
* Printers & Copiers
* Robotics
* Medical Tools
List of Motor Characteristics:
| Motor Model | Output Power | Voltage | Frequency | Current | Rated Speed | Rated Torque | Statring Torque | Capacitor | |
| Pinion Shaft | Round Shaft | W | V | Hz | A | r/min | mN.m | mN.m | μF/VAC |
|
3IK15GN-C |
3IK15A-C | 15 | 1ph220 | 50 | 0.17 | 1250 | 125 | 884 | 1.2/450 |
| 60 | 0.24 | 1450 | 92 | 86 | |||||
| 3IK15GN-A | 3IK15A-A | 15 | 1ph110 | 50 | 0.34 | 1250 | 127 | 109 | 5.0/250 |
| 60 | 0.35 | 1450 | 94120 | ||||||
Gear Reduction Ratio:
| Gear Ratio | 3 | 3.6 | 5 | 6 | 7.5 | 9 | 10 | 12.5 | 15 | 18 | 20 | 25 | 30 | 36 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | 200 | |
| 50Hz | Speed (r/min) | 450 | 375 | 270 | 225 | 180 | 150 | 135 | 108 | 90 | 75 | 67.5 | 54 | 45 | 37.5 | 3.7 | 22.5 | 18 | 15 | 13.5 | 11.3 | 9 | 7.5 | 6.75 |
| Torque(Nm) | 1.05 | 0.36 | 0.5 | 0.61 | 0.76 | 0.91 | 1.01 | 1.26 | 1.5 | 1.64 | 1.82 | 2.27 | 2.73 | 3.27 | 3.63 | 4.54 | 4.9 | 5 | 5 | 5 | 5 | 5 | ||
| 60Hz | Speed (r/min) | 516 | 430 | 310 | 258 | 206 | 172 | 15 | 124 | 103 | 86.1 | 77.5 | 62 | 51.6 | 43.1 | 31 | 25.8 | 20.6 | 17.2 | 15.5 | 12.9 | 10.3 | 8.6 | 7.75 |
| Torque(Nm) | 0.22 | 0.27 | 0.37 | 0.45 | 0.56 | 0.67 | 0.74 | 0.93 | 1.11 | 1.2 | 1.34 | 1.67 | 2.01 | 2.41 | 2.67 | 3.34 | 3.11 | 4.11 | 5 | 5 | 5 | 5 | 5 | |

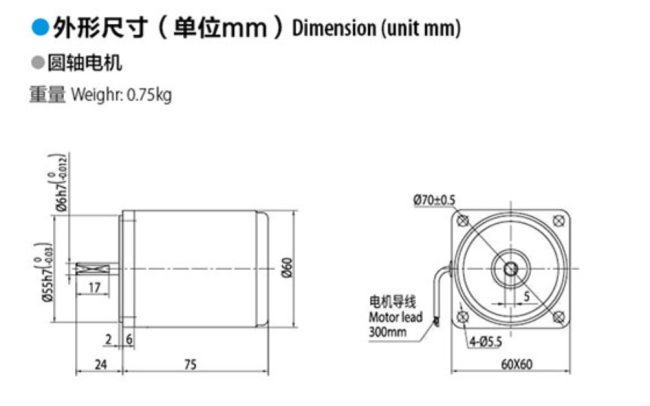

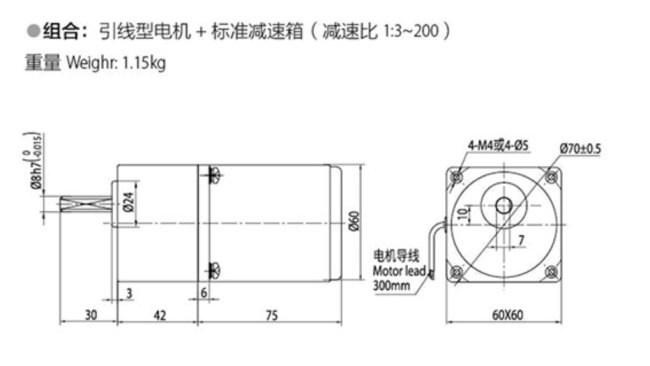

Drawings of Gear Motor:

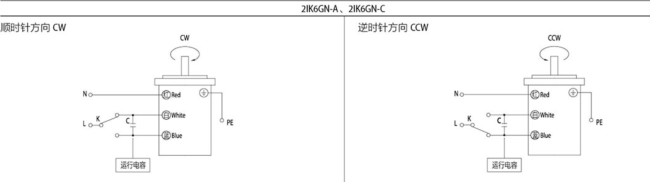

Wiring Diagram:
