ZZL90 Spiral Bevel Right Angle Gearboxes, 1:1 or 2:1 Ratio

● High precision: CHE bevel gearboxes are highly efficient, have a low backlash and work with high gear ratio precision

● Easy mounting: Input and output shaft flanges simplify mounting and installation

● Good material: Ground alloy steel shafts are mounted on precision ball bearings for smooth operation

​● High performance: Low noise levels, low vibiratin, shock-resistant, highly resilient and space-saving

These are our new developed planetary gearboxes type, including more sizes and appearances

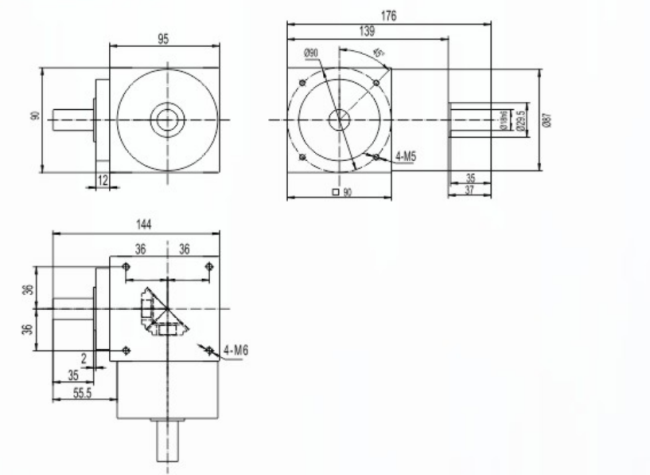

ZZL90-1 Bevel Planetary Gearbox Drawing

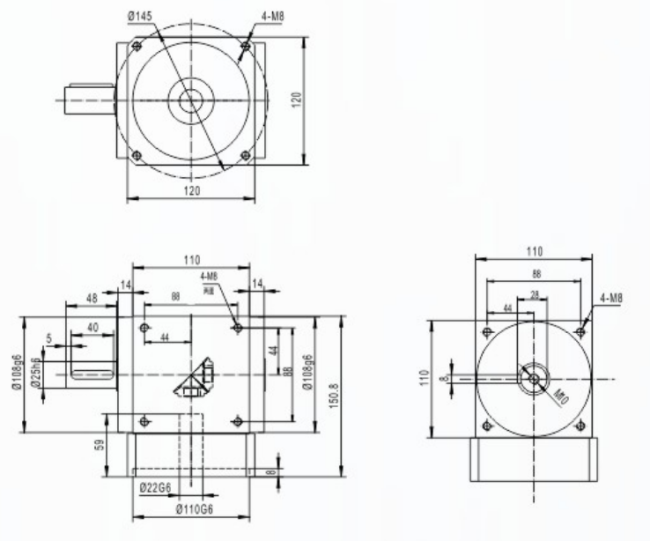

ZZ110-2 Bevel Planetary Gear Reducer Drawing

 CHE Planetary Speed Reducer Selection Instructions:

Model~if you know the specific model, that would be wonderful.
Torque:
Gear Ratio:
Reducer size or motor power:
Output method:
Connection Method:
Helical or Spur Gear:
Quantity:
What machine you use for:
Pls provide as much as you can so that we can help you more quickly!
Thanks a lot!


 Working Shop

Revolutionary Technology

CHE launched the high-speed gear end of the supoort and the integration process, to achieve better concentricity requirements to meet the low noise requirements; increasing the reducer adjustment ring, adjust the internal axial clearance, ran achievement minimization; reducer output end of the tapered roller bearing load, the force to meet the greater demand and absolute stability after loading.
