ZZ90 1:1 2:1 3:1 90 Degree Spiral Bevel Gear Drive Box Single Shaft
Price:
Negotiable
MOQ:
1 unit
Delivery Time:
3~7 working days for sample
Brand:
CHE
Product Description

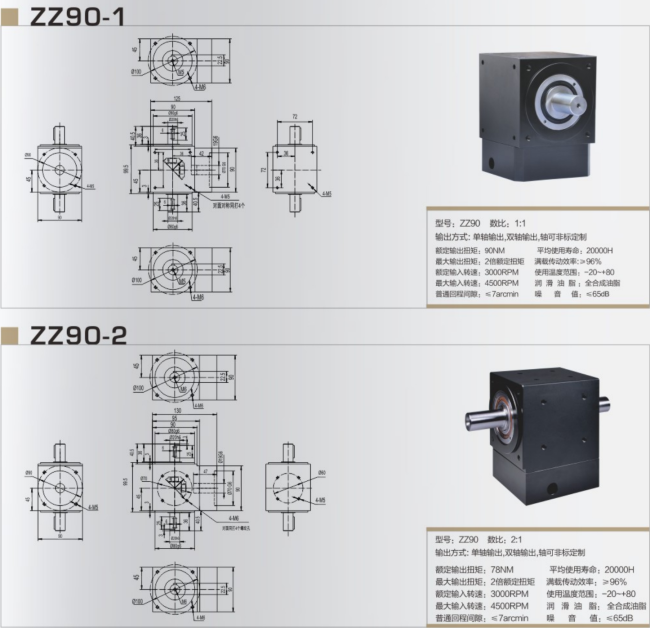

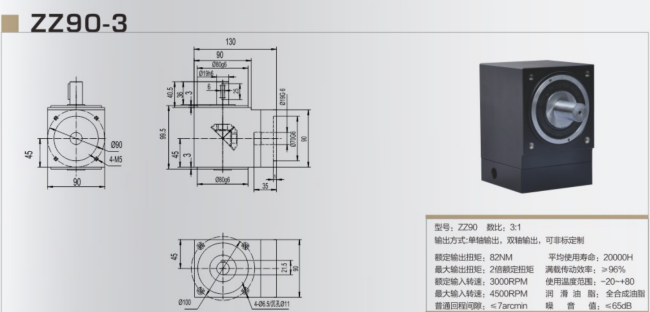

ZZ90 1:1 2:1 3:1 90 Degree Spiral Bevel Gear Drive Box
| Model | ZZ60-3 | ZZ90-1 | ZZ90-2 | ZZ90-3 |
| Gear Ratio | 3:1 | 1:1 | 2:1 | 3:1 |
| Output Method | Single shaft, double shaft or custom | Single shaft, double shaft or custom | Single shaft, double shaft or custom | Single shaft, double shaft or custom |
| Rated Torque | 18Nm | 90Nm | 78Nm | 82Nm |
| Maxmium Torque | 36Nm | 180Nm | 156Nm | 164Nm |
| Rated Speed | 3000rpm | 3000rpm | 3000rpm | 3000rpm |
| Maxmium Speed | 5500rpm | 4500rpm | 4500rpm | 4500rpm |
| Return Clearance | ≤7arCMIN | ≤7arCMIN | ≤7arCMIN | ≤7arCMIN |
| Service Life | 20000h | 20000h | 20000h | 20000h |
| Full Load Efficency | ≥96% | ≥96% | ≥96% | ≥96% |
| Working Temperature | -20~+80℃ | -20~+80℃ | -20~+80℃ | -20~+80℃ |
| Grease | Fully synthetic grease | Fully synthetic grease | Fully synthetic grease | Fully synthetic grease |
| Noise Value | ≤65 | ≤65 | ≤65 | ≤65 |
