ZPTK130 2:1 Flange End Bevel Planetary Gearbox With Hollow Shaft
Helical Bevel Planetary Gear Reducer ZPTZ90-2
● High precision: CHE bevel gearboxes are High precision spiral bevel gearing and powerful stability.
● High efficiency: very low backlash and work with high gear ratio precision, Maintenance free for whole service
● High durability: Straight-tooth bevel gears have teeth that are made from precision-forged alloy steel for maximum strength, as well as case hardened for increased durability.
● High performance: Input and output shafts are constructed from ground and polished heat-treated alloy steel to further enhance the overall toughness of these drives
● High performance: Low noise levels, low vibiratin, shock-resistant, highly resilient and space-saving
These are our new developed planetary gearboxes type, including more sizes and appearances

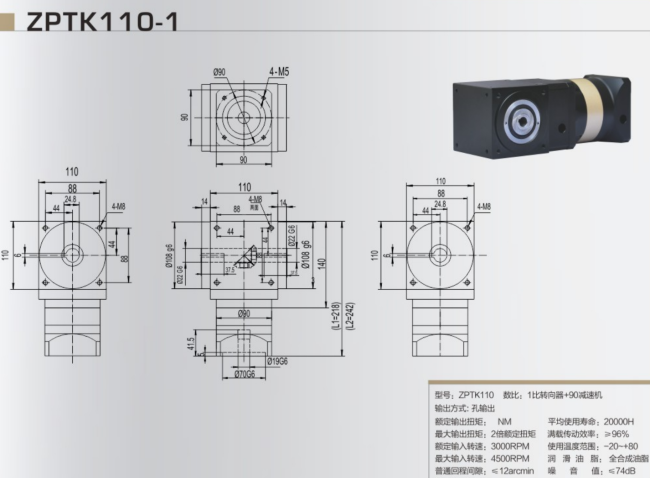

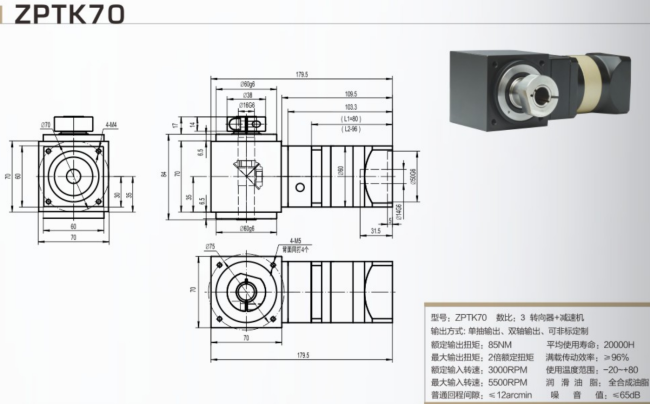

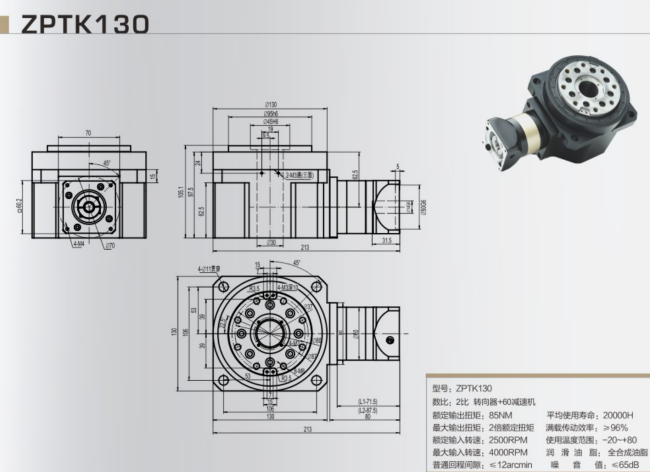

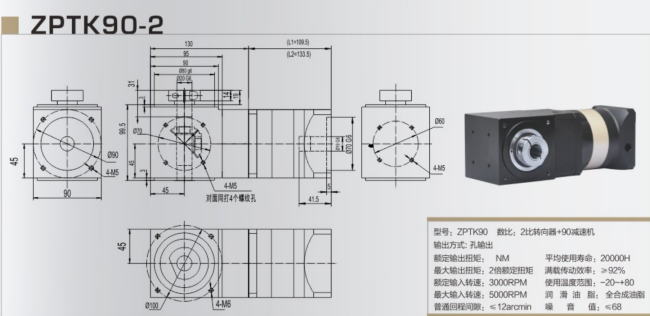

ZPTZ90-2 Bevel Gearbox Drawings & Dimensions:
| Model | ZPTK70 | ZPTK90-2 | ZPTK110 | ZPTK130 | ZPTK140 |
| Gear Ratio | 3:1 | 2:1 | 1:1 | 2:1 | 2:1 |
| Output Method | Single shaft, double shaft or custom | Hole output or custom | Hole output | Hole output | Single shaft, double shaft or custom |
| Rated Torque | 85Nm | 85Nm | 85Nm | 85Nm | 85Nm |
| Maxmium Torque | 170Nm | 170Nm | 170Nm | 170Nm | 170Nm |
| Rated Speed | 3000rpm | 3000rpm | 3000rpm | 2500rpm | 2500rpm |
| Maxmium Speed | 5500rpm | 5000rpm | 4500rpm | 4000rpm | 4000rpm |
| Return Clearance | ≤12arcmin | ≤12arcmin | ≤12arcmin | ≤12arcmin | ≤12arcmin |
| Service Life | 20000h | 20000h | 20000h | 20000h | 20000h |
| Full Load Efficency | ≥96% | ≥92% | ≥96% | ≥96% | ≥96% |
| Working Temperature | -20~+80℃ | -20~+80℃ | -20~+80℃ | -20~+80℃ | -20~+80℃ |
| Grease | Fully synthetic grease | Fully synthetic grease | Fully synthetic grease | Fully synthetic grease | Fully synthetic grease |
| Noise Value | ≤65 | ≤68 | ≤74 | ≤65 | ≤70 |
CHE Planetary Speed Reducer Selection Instructions:
Model~if you know the specific model, that would be wonderful.
Torque:
Gear Ratio:
Reducer size or motor power:
Output method:
Connection Method:
Helical or Spur Gear:
Quantity:
What machine you use for:
Pls provide as much as you can so that we can help you more quickly!
Thanks a lot!
Working Shop
Revolutionary Technology
CHE launched the high-speed gear end of the supoort and the integration process, to achieve better concentricity requirements to meet the low noise requirements; increasing the reducer adjustment ring, adjust the internal axial clearance, ran achievement minimization; reducer output end of the tapered roller bearing load, the force to meet the greater demand and absolute stability after loading.
