PLC One end Terminal Insertion Machine , 220V Wire Strip And Crimp Machine
Both-end Crimping One end Insertion Automtic Harness Machine
Equipment Configuration
With the German high pixel image detection system
Industrialrobot(EPSON), Module(THK), Electric(YASKAWA), Cylinder(SMC), Sensor(Omron), CCD
Camera(Germany Basler), Reducer(xinbao)
High speed, the maximum can reach 1200pcs/H
Equipment function
1. It can process 6 different specifications and colors of wire
2. TDVM terminal detection visual system, pressure management system, Insertion drawing force detection
3. Both end crimping, One end insertion, Can be Installed with tin-staining function at one end
4. Vibrating disc feeding, manipulator grasping
5. The maximum can reach to 1200pcs/H
Technical Parameters
| Mechine Function | Wire measuring cutting, Both-end crimping, One end Insertion, HOUSING feeder, Touch screen can debugging the crimping height, Discharge the defective product on-line inspection |
| Capacity | Both end crimping, One end insertion 1200PCS/H |
| Drive Mode | PLC Control |
| Wire Size | AWG28-AWG16 |
| Mould Assembly Type | Assemble AS40, AS42, AE30( Customized Acceptable) |
| Wire Cutting Length | 45-9999mm |
| Cutting Precision | ±0.5mm |
| Stripping Length | 1.0-15.0mm |
| Penetraction Depth | MAX 3mm |
| Crimping Capacity | 2 TON servo motor two sets mute specifications |
| Detection Device | Wire exists or not, wire overload, terminal exists or not, terminal overload, HOUSING exists or not, insertion exists or not, Terminal detection visual monitor, pressure sensor device |
| Power Source | 3 phase/220V |
| Power | 7.5KW |
| Compressed Air | 0.5Mpa about 170NL/Min |
| Equipment Size | L3020*W1550*H1900mm |
| Weight | 1000KG |

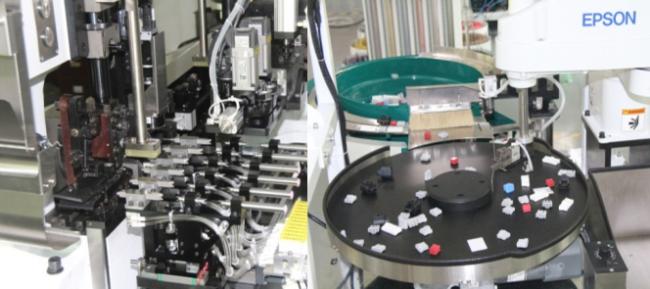

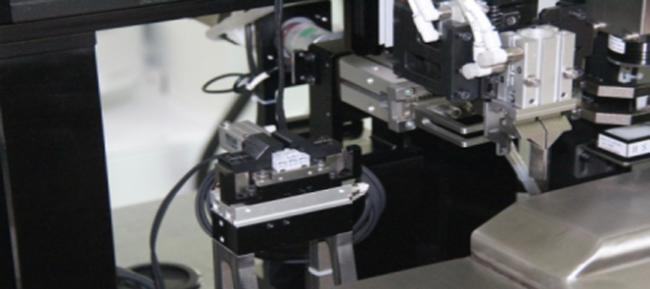

Details
