20/10mA PM1 Crimp Force Monitor Pressure Manager Lightweigt 6V-15V DC
PM-01 Pressure Manager Of Full Automatic Wire Harness Machine
Equipment Function
Combined with our company's software, you can view and save the pressure waveform and edit the setting value.
The total load, pressure waveform and area can be determined comprehensively by using piezoelectric force sensor.
Detection can be carried out on core wire breakage, deep pressure, shallow pressure, core wire exposure, etc., and the crimping equipment will alarm to stop when bad judgment is made.
It can equipped with all automatic models from our company.
Technical Parameters:
| Model | PM-01 |
| Input | 10³ PC |
| Output | 20/10 mA |
| Frequency Range | 1 HZ-25KHZ |
| Power | 6V-15VDC 20mA |
| Size | L100*W50*H32mm |
| Weight | 250g |

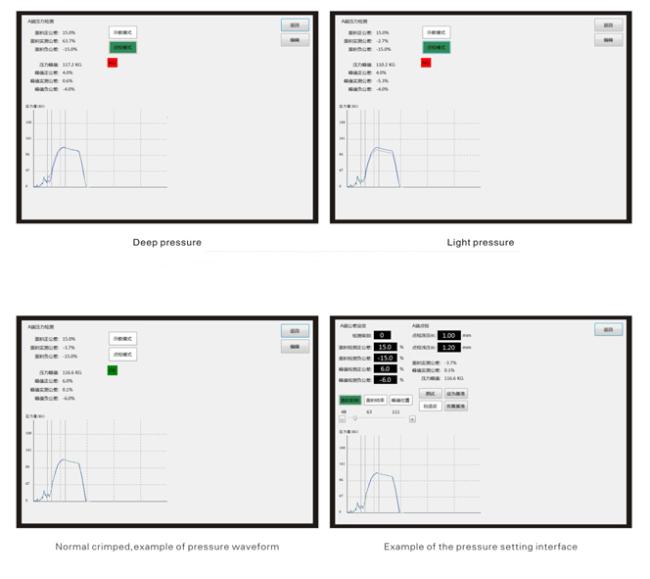

Check out the defective products and press the picture(reference)
NG goods crimping, example of presssure waveform
