Full-Automatic Wire Harness Manufacturing Equipment Wire Processing Machine
Full-Automatic Wire Harness Manufacturing Equipment Wire Processing Machine
The Loong Series Harness Manufacturing can produce more wire harnesses of varying degrees of complexity.
It has the functions of Both-end measuring cutting, Both-end striping, Both-end crimping, Both-end Insertion and so on.
Reduce production time significantly.
3 or 12 modules can be selected, as required.
The Loong Series is a better choice for miniaturization and increasingly smaller batches.
These machines make it possible to manufacture a range of different wire harnesses.
Technical Parameters
| Wire Cross-section | 0.13mm²-4.0mm²(AWG26-11) | Cutting Length | 450-9999mm |
| Cutting Precision | Cutting length*0.02mm | Stripping Depth | Maximum 3mm |
| Stripping Length |
Full strip: 0-15mm Half strip:0-15mm |
Crimping Capacity | 3 TON presser |
| Power | 10KW | Compressed Air Connection | 0.5Mpa |
| Wire End Storage | Rotary storage unit with a maximum of 30 storage spaces | Connector Types | 30 kinds of the connectors |
| Wire Selector | Max.50 wires(Different color & cross-section) | Mould Assembly Type | AS40, AS42, AE30(Pneumatic mould can be customized) |
| Power Source | China - 380V/ 3 Phase / 50Hz Canada - 600V/ 3 Phase / 60Hz USA/Japan - 480V/ 3 Phase / 60Hz Mexico/Honduras - 480V/ 3 Phase / 60Hz Europe - 400V/ 3 Phase / 50Hz |
QC Contents | Wire presence, Wire overload, Terminal presence, Terminal overload, Stripping and crimping visual monitoring, Crimping force monitoring, Insertion & pull-back force monitoring |

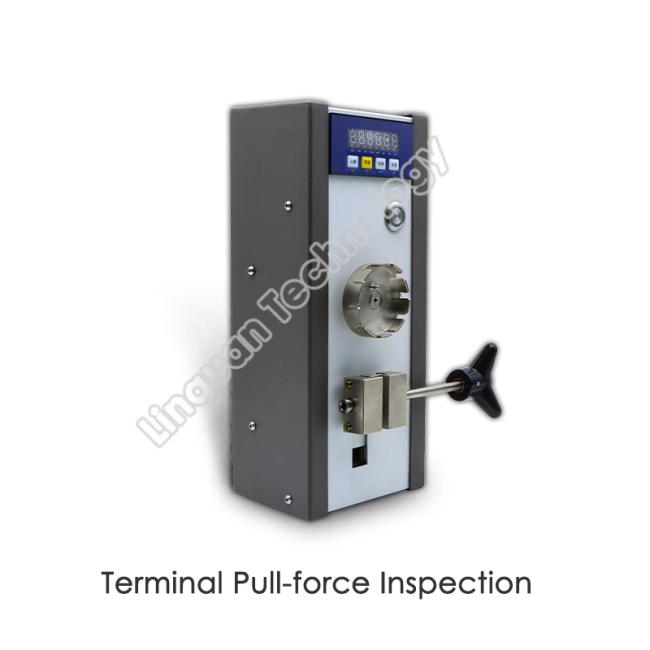

| QC Devices | CCD inspection modules, Crimping Force Monitoring (Force sensor), Insertion/Pull-back Force Monitoring (Force sensor), Terminal crimped height measuring instrument, Terminal pull force measuring instrument | Efficiency | Both-end crimping and insertion about 1000pcs/hr (Depends on different producing process and the functional module quantity, productivity is different) |

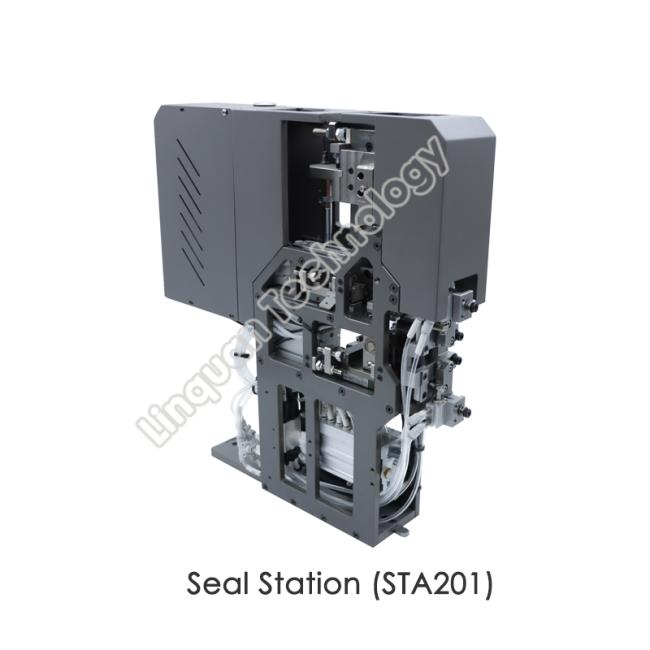

| Functions | Pre-feeding, Wire feeding, Fixed length cutting, Stripping, Both-end crimping, Both-end insertion, Adjusting crimp height on HMI, Unloading defective products through CCD inspection | Optional | Lin Quan MES System, Laser Inkjet Print, Seal insertion (Max 6 modules), Tinning & Twisting, Wire Stranding, Wire end solidifying, Splicing & welding, Double crimping, Max.12 Crimping Modules (with programmable crimp height), Linear-carrier housing feeding/ Plate-loop conveying housing feeding module (According to customer requirements) |
The loong 860 is designed for one-stop,lean manufacturing of complex wire harness with less middle storage and less operator engagement. Thanks to robust automated design and outstanding degree of flexibility, Loong-860 could easily adapt both sequence and batch production mode.
Our Advantages
High speed mass production capability
Excellent compatibility
Reliable machine performance
User friendly HMI
Compatible with third-party data (such as MES, SCADA) interface
Flexible platform design
Short changeover time
Real-time equipment performance and process data
Easy-to-manage part number list
Modular design, such as: standard Housing insertion, crimping, CCD modules
Standardized and modular design
Outstanding quality control ensured by CCD on all processes
MES Traceabilitys
Module Shows
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
