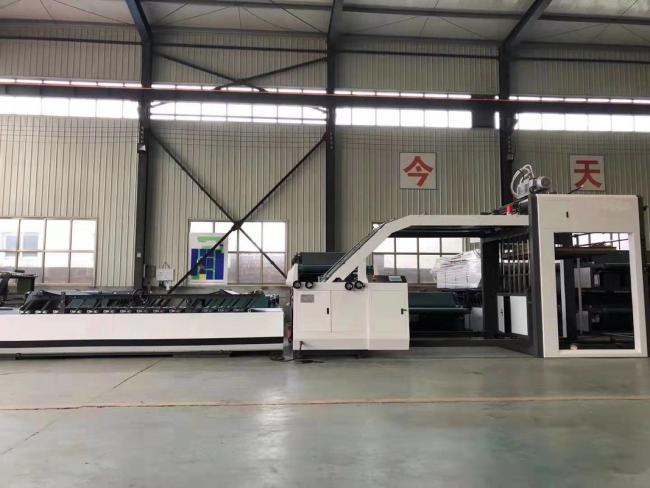

Automatic Flute Laminator

Max.Speed:8000pcs/h

Model:1600A

Product Description:

This machine uses bottom sheet automatic sent by suction device, and top sheet feeding manually. This humanized design makes paper feeding easier and more efficient. It is suitable for the top paper of the Cardboard paper (Duplex paper) from 175-600GSM, kraft paper from 130-450GSM, E flute. The bottom paper of the A/B/C/E/F flute, four layers paper, such as: AB/BB/BC/BE/EE, gray board paper from 600GSM to 2000GSM and three layers and five layers corrugated paper.

Product Features:

Use and Characteristics:

◆ The vacuum suction-type feeding system can lead the paper accurately into the machine; cycle stacking planes in a state of non-stop the next batch of paper stack well, so that more

efficient.

◆ Using suction feeding automatic of bottom sheet, according to the main machine operating speed, continuous automatic tracking.

◆ The machine operation is stable, surface paper with corrugated paper joint very Accurate.

◆ The corrugated paper never pull ahead, surface paper’s location is easy adjust.

◆ Machine uses touch-screen/PLC/servo motor control system, the circuit system is stable , and can automatically display the failure alarm.

◆ Automatic gluing ,and the glue can be used circulatory, avoid glue waste.

◆ Roller design scientifically, avoid glue fly out when the speed is high.

◆ Pressure rollers adopt unilateral adjustment, convenient and fast.

◆ Rocker controls wash roller’s fluctuation, easy cleaning.

◆ Counter designs scientifically, easy recording the amount you have been worked.
