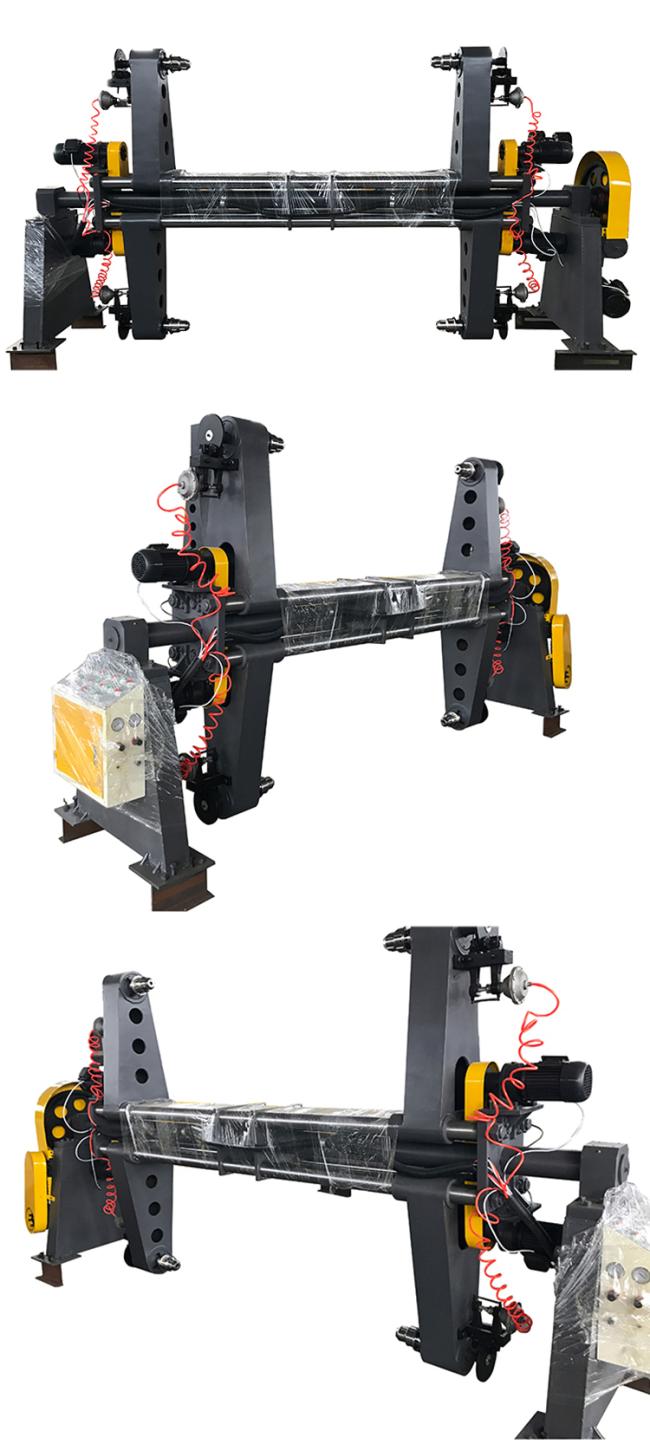

Electric Mill Roll Stand

Product Description:

1. Symmetrical structure can also install two bundles of paper at the same time, Paper can be used for non-stop for a job; Adopts mechanical drive to complete the paper clamping, lifting, loosen, move on, around translational motion, etc.

2. Each shaftless mill roll stand is equipped with two pieces of paper guide, two set of paper car; paper guide the use of channel 14 and the guide post weld, paper car adopt 10mmwelded stellate length of track is 4500mm.

3. Manual disc brake, add screw following

4. Electric elements centralized control the electric elements, expand chuck.

Specification Table

Product Features:

1- Electric mill roll stand Width: 1600mm;1800mm

2. The structure is symmetrical, can load two rolls raw paper at the same time, can change the paper roll without stop the machine.

3. Electrical element are centralized controlled, this highly improves the production efficiency

4. Equipped with uniform torsion clutch, safe, easy and reliable operation.

Product parameters:

1,Back stands action mode:mechanical electric operation

2,the range of paper jams:maximum:1600mm minimum:600mm

3,the diameter of paper jams:maximum:￠1400mm minimum:￠400mm

4,Unilateral maximum load:maximum2000Kg

5,Powered motor parameters:

① Paper jams motor550W×4set 380V 50HZ short(S2)working standard

② lift motor 1.5Kw 380V 50HZ short(S2)working standard
