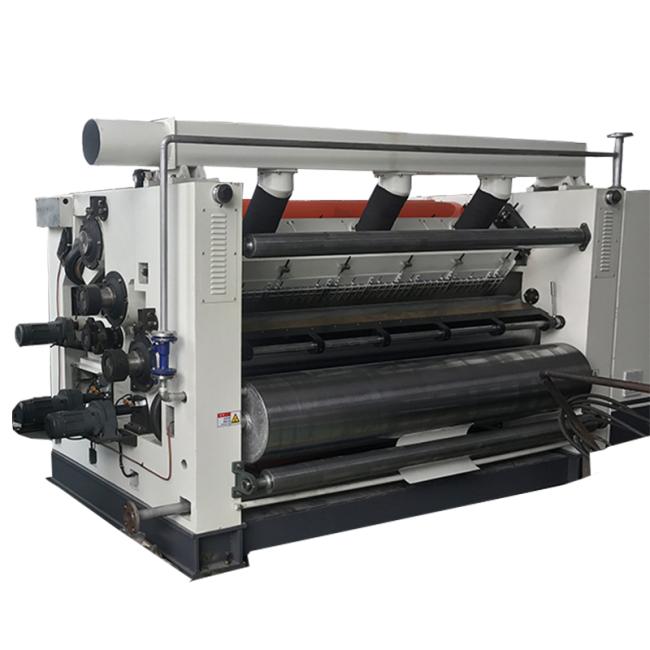

30KW 380V 50Hz Fingerless Type Single Facer Corrugated Machine
fingerless type single facer
※ structural feature:
★ Main corrugated roller: ￠360mm(according to the flute shape difference), pressure roller ￠415mm, preheat roller￠400mm.
★ Adopt a negative pressure design, use less heat, make the core paper can be pressed evenly and attached to the surface of the corrugated roller, make the corrugator shape better. Because the pressure is even, the top of the corrugator can be glued more evenly, making the single corrugated paper bond better.
★ Corrugated roller uses 48Crmo alloy steel, through heat treatment, surface through grinding make tungsten carbide treatment.
★ Corrugated rollers and pressure rollers use high stability gasbag control system, and also have an air pressure control buffering function.
★ Glue quantity control uses electric adjust, glue isolation device electric, glue system can operate independently when main machine stop, to avoid glue use up. The glue tank is made of stainless steel.
★ Movable type glue system, wash easily, maintenance and repair are easier.
★ A simple control system and touch screen system, with colorful pictures, show the operation state , function choice,failure indication, exclusion, and parameter setting all can act out the machine’s multi-function, easy operation and humanization.
★ The preset device inside with a spray system, adjust the core paper’s temperature and moisture.
★ Main, vice corrugated roller and pressure roller bearing all use high-temperature grease, to make sure the bearing working life longer and running smoothly.
★ Pressure rollers use unpowered structures, original design, and advanced structures, greatly reducing the vibration and noise of the equipment at high speed.
★ Both ends of the pressure roller are equipped with a weighing sensor, which can direct detect
the pressure at both ends of the pressure roller.
※ technical parameters:
| effective width:1800mm | design speed:200m/min |
| operate direction: left or right(Determined in accordance with the customer's facility) | |
| range of temperature:160—200℃ | air source:0.4—0.9Mpa |
| steam pressure:0.8—1.3Mpa | corrugate flute(UV type or UVV type) |
※ Roller diameter parameters:
| diameter of corrugated roller | ￠360mm |
| diameter of the pressure roller | ￠415mm |
| diameter of glue roller | ￠269mm |
| diameter of preheating roller | ￠400mm |
※ powered motor parameters:
| Item | power | Rated voltage | working system |
| Main drive motor | 30KW | 380V 50Hz | continuous(S1) |
| suction motor | 15KW | 380V 50Hz | continuous(S1) |
| Electric drive pusher | 30W | 24V 50Hz | short (S2) |
| Adjust glue gap motor | 200W*2 | 380V 50Hz | short (S2) |
| glue pump motor | 2.2 KW | 380V 50Hz | continuous(S1) |
| Frequency motor | 3.7KW | 380V 50Hz | continuous(S1) |
