2ply Pre Coating Automatic Film Laminating Machine 1120a

Price Negotiable

Price: Negotiation

MOQ: 1 set

Delivery Time: 30-60 days after down payment

Brand: SY-PACK

Product Description

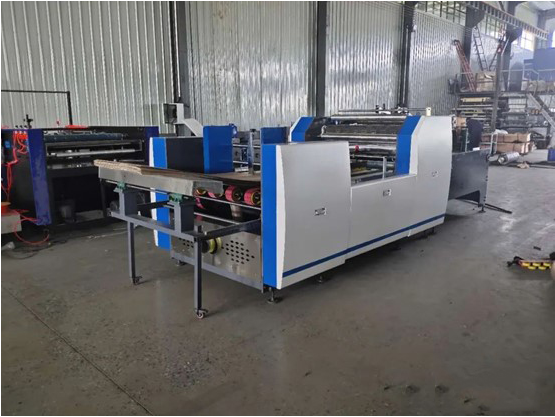

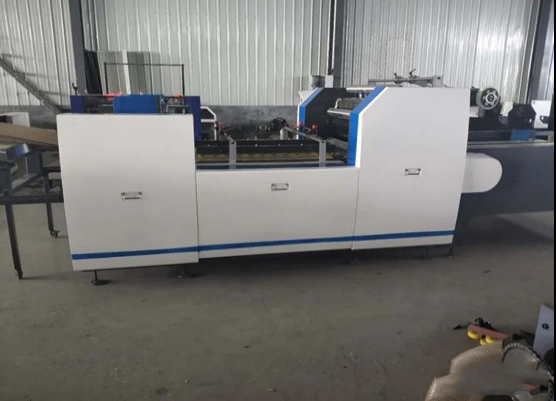

automatic pre-coating film laminating machine

INTRODUCTION:

1120A Fully automatic precoating film laminating machine is a brand-new product that we developed for the market. It is suited for pre-coating film lamination. With three in one function, which includes auto paper feeding, film laminating, and paper cutting easily. This machine is easy to operate and maintain and runs smoothly.

Functions & characteristics:

It is easy to operate with small floor space.
Saving time and manpower with high efficiency by auto feeding and cutting functions.
The main composite roll is made of a jumbo steel roll. With an Electromagnetic heating system, the temperature on the surface is stable and uniform.
With the recording order function, it is saving time to change orders with one click.
The main driven motor adopts a variable frequency speed controller and PCL control system to adjust the working speed easily.
The servo motor controls the speed. Adjusted by the PLC according to the length of the lap splice.

Technical Parameters:

Model	1320
Max. Feeding Paper Width	1250 mm
Laminating Temperature	80-120℃
Pressure of Laminating	0-8 Mpa
Machine Speed	0-50 m/min
Dimensions	220055001600 mm
Total Power	20 KW
Machine Weight	3300 KG

Name	Brand & Model	Place of Origin
Main Motor	3.7 KW	Zhejiang, China
Heating Cylinder	300 mm	Guangdong, China
Rubber Roller	250 mm	Guangdong, China
Bearing	NSK	Japan
Electromagnetic Heater	320 mm	Wenzhou, China
PLC	FATEK/Xinjie	China
Touch Screen	FATEK/Xinjie	China
Switch	People electric	Zhejiang, China
Servo Motor	1.5 KW	Guangzhou, China
Power Supply	Omron	Japan
Relay	Siemens	Germany
