110bar Cryogenic LNG Cold Box Heat Exchanger 2.6 Million Ton

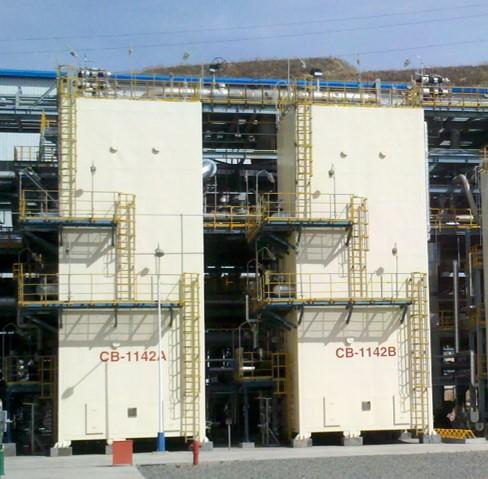

CNOOC 2.6 million tons Iran, South pars,LNG,Cold box

Project and Engineering Services, Ltd. (hereinafter referred to as SASPG) will design, manufacture and supply a brand new air separation plant using the latest process technology of molecular sieve adsorption, booster turbo expander, structured packing upper column and GOX internal compression process. The device is equipped with air filtration system, air compressor system, air pre-cooling system, molecular sieve purification system, booster turbo expander system, cold box system, LOX storage and evaporation system, instrumentation and electrical control system, etc.

Certificate

ISO9001-2008 quality system certification

Design & Manufacturing License for Class A1, A2, C2 and C3 Pressure Vessels

ASME authorization certificate, U, U2 steel seal

Design License for Pressure Pipes (GC1)

Manufacturing License for Pressure Pipe Fittings (Class AX)

CE Certification for Air Separation Plant & LNG Plant

Military quality system certification

Certification for Weapons And Equipment Manufacturing of General Equipment Department

High-tech Enterprise

Manufacturing License for B3 Cylinder

• SASPG was established in 1966
• Plant building covered area – 321715 m2
• Staff - 3000
• Total Assets – 334 Million USD
• Annual Turnover – 300 Million USD
• Production Capacity – 50000 Tons
• Plant capacities – 50 Nm3/hr up to 60000 Nm3/hr

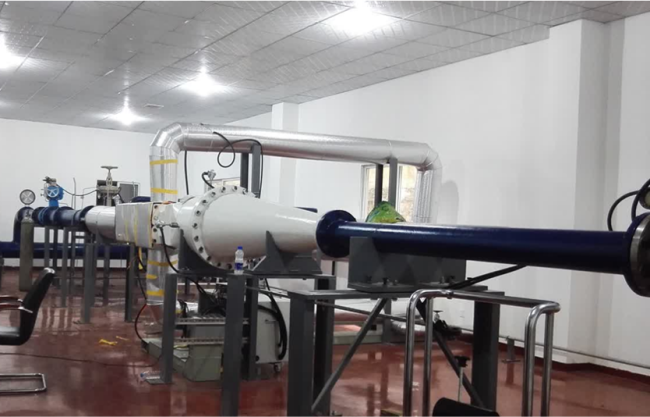

Wind tunnel test

Precooling Heat Exchanger (Stage IV Propane Precooling):

Quantity: 4 single row cold box, 8 in total;

1100×1789×8000mm

Liquefaction Heat Exchanger:

Quantity: 4 single row cold box, 8 in total;

1250×2350×8000mm

Sub-cooling Heat Exchanger:

Quantity: 2 single row cold box, 4 in total;

1000×1350×4200mm
