10000l mobile liquid oxygen storage tank

10000l mobile liquid oxygen storage tank

10000l mobile liquid oxygen storage tank

Model:  CF-10000/16

Main technical parameter:

Available volume:                                            10000L

Geometric volume:                                          10520L

Max working pressure:                                    16bar

Insulation method:                                           Vacuum powder

Design temperature:                                        -196℃

Medium:                                                           LOX (LIN, LAr)

Main body material                                           SA-240M304/Q245R

            Dimension:                                                        ~5900×2216×2260mm

            Empty weight:                                                    ~6800Kg

Scope of supply

             (1) Tank body                                   1 set

              (2) Booster                                       1 set

              (3) The Saddle   / The Frame            1 set

              (4) The Valves of tank(equipped with high-quality valves, instruments and liquid level gauge)

              (5) Operation box                              1 set

              (6) 5 meters of tube and tubebox:      1 set

              (7) Technical documents                     1 set

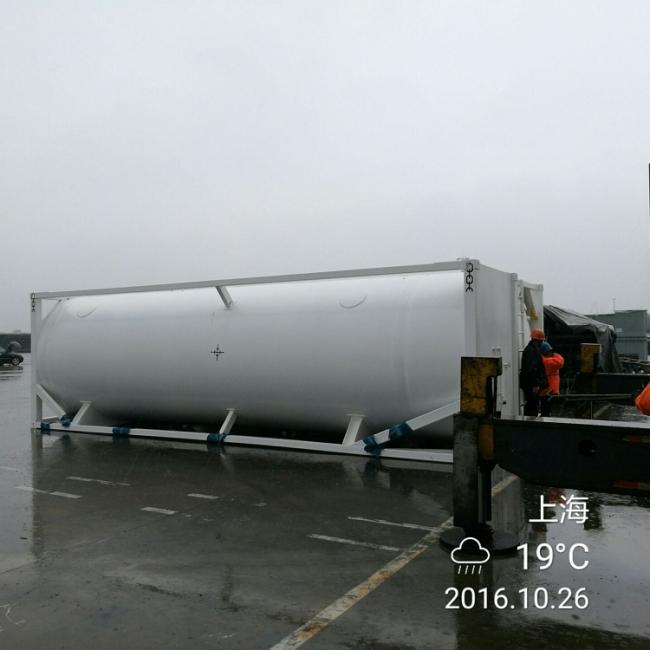

Type:  Frame type

Saddle type

Introduction

The mobile cryogenic tank integrates advantages of the liquid gas storage tank and the semi-trailer tanker. It is light in weight and compatible with various types of frames. So, it is easy to be fitted in any tanker frame. Also due to the light weight, it reduces the shipping costs.

Advantages

Customers can use the existing tanker frame. There is no need to find an extra, thus saving import duties and production costs. High transport efficiency saves efforts and resources. Due to its compact structure, small footprint, centralized control, easy maintenance and long life, the mobile tank maximizes the economic efficiency.

Applications

The mobile cryogenic tank is mainly used for the transport of cryogenic liquid O₂, N₂, Ar, CO₂, etc. It is widely used in the gas industry, hospitals, metal smelters, and chemical plants.

Main Parameters

1. suitable medium: liquid Ar, liquid O₂, liquid N₂ and liquid CO₂
2. working pressure: determined by the medium
3. working temperature: determined by the medium
4. effective capacity: 5-25 m³ (can be designed according to customer needs)

Purchasing Guide

If you would like to purchase our mobile cryogenic tank, please let us know the following information, we will promptly provide you a quotaion.
1. medium, volume, pressure
2. size of tanker chassis
3. do you have specific requirements for manufacturing standards? If not, the design and manufacture will comply with ASME standards.
