Customized Hot Air Oven Dryer Chinese Medicine Herbs Drying Machine 2.3*2.2*2m
Customized Hot Air Circulation Dryer Oven for Chinese Medicine Herbs Drying Machine
Hot Air Oven Dryer
Important parts about Oven dryer WKS-3

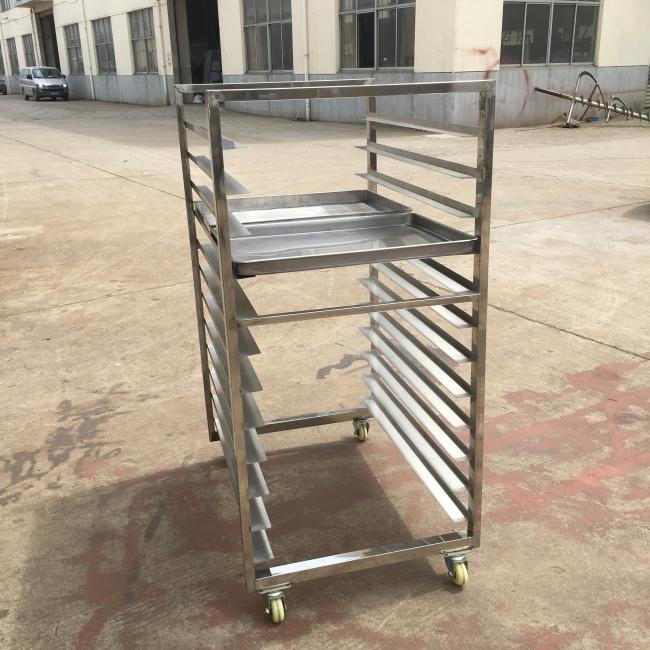

4*Trolleys
96*Trays
Dimension 2300*2200*2000
Standard power distribution auxiliary heat(15-30kw)
2*Circulating hot air blower
1*Moisture release outlet
1*fresh air inlet
1*control panel
Axial Fan
- Power: 0.45kw
- Material: Aluminum alloy casting
- Speed: 2800r/min
- Air flow:3000m³/hour
- The fan has the feature of high temperature resistance, corrosion resistance, low noise, low power and large air flow.
Heater
The oven's default heat source is electricity, using a W-shaped stainless steel electric heating tube. Also according to customer requirements to use gas, LPG, oil, steam, coal, wood and other biomass particles as heat source..
Technical parameters
| Model | Heater (kW) |
Fan (kW) |
Tray Qty. |
Tray & Trolley (mm) |
Trolley Qty. |
Dimensions (mm) |
Weight (kg) |
| WKS-1 | 6~9 | 0.45 | 24 | 640*460*45 950*700*1300 |
1 | 1400*1200*2000 | 400 |
| WKS-2 | 9~15 | 0.45 | 48 | 2 | 2300*1200*2000 | 600 | |
| WKS-3 | 15~30 | 0.9 | 96 | 4 | 2300*2200*2000 | 900 | |
| WKS-4 | 15~45 | 1.35 | 144 | 6 | 3660*2300*2000 | 1500 | |
| WKS-5 | 15~60 | 1.8 | 192 | 8 | 5000*2250*2100 | 2000 |
Our service
We provide complete Pre-service such as 24 Hours online service for your consult & Help choose right model & a series of service,person,advise. Middle service such as Give you best offer Provide discount for many sets order & Do customer's request & Choose payment term as you are convenient & Promptly production and delivery & inform you in time & Can provide invoice value as you like to decrease your tax. After sale like service 1 year warranty service & Technical Engineer are available for oversea training & Free change for some parts Remote control technical consult.
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
