CMOS Carema Intubation Video Endoscope Laryngoscope with Freeze Frame Host key
CMOS Carema Intubation Video Endoscope Laryngoscope with Freeze Frame Host key
The HYHJ1330 features a rechargeable li-ion battery for extended use. A unique anti-fog capability is also provided. The overall design is compact and ergonomic. A high resolution view of the glottis will enable clinicians firstattempt success while minimizing any chance of complication during the intubation process.
- Lightweight - unit is less than 350g
- Vacuum packed disposable blades
- Quick installation and removal of blades
- Quick shot camera button for recording
- Low cost disposable blades
- 1 year warranty
- Light weight long lasting rechargeable li-ion battery
- 3.0inch display
- CMOS camera with video capability
- Anti-Fog lens technology
The HYHJ1330 features a rechargeable li-ion battery for extended use. A unique anti-fog capability is also provided. The overall design is compact and ergonomic. A high resolution view of the glottis will enable clinicians firstattempt success while minimizing any chance of complication during the intubation process.
 |

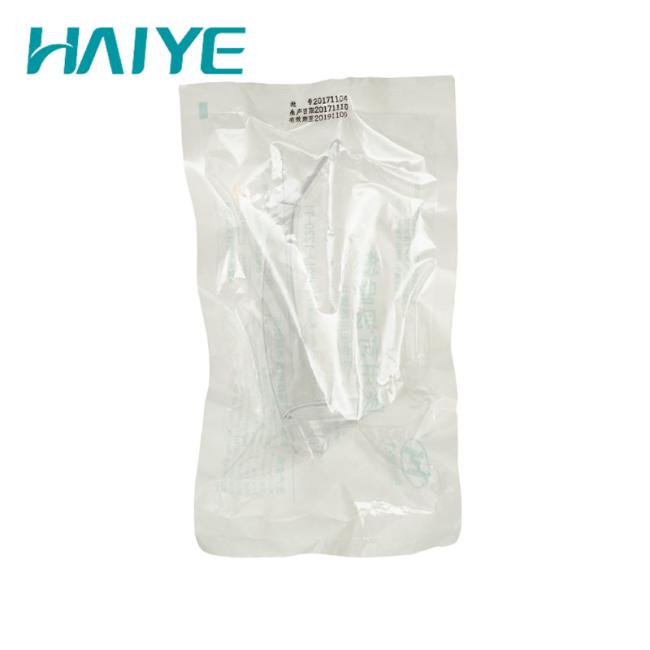

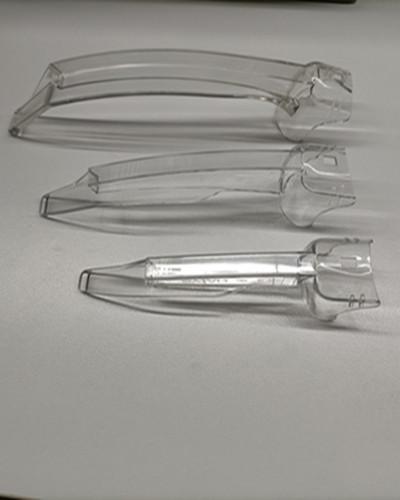

Disposable Aseptically Packaged Blades
HYHJ-1330 Medical visual laryngoscope is a product that can be reused after being sterilized on the basis of HYHJ-1320 medical visual laryngoscope.
Camera system and display screen as a whole, no need to install;
Three kinds of camera systems are suitable for different sizes of mouth cavity, and disposable aseptically packaged laryngoscopes are used to reduce the risk of cross infection |
Range of application:
• pre-hospital • emergency medicine • resuscitation
• anaesthesia • difficult airway • intensive care
Technical Feature:
| Name | Technical term | Technical Index |
|
Machine |
Display Resolution | 960 x 480 |
| Pixels | 2 million | |
| Camera Resolution | 1280 x 720 | |
| Viewing angle | 70 ± 2 degree | |
| Depth of field | 3~100mm | |
| Host key | Freeze frame, take photo and video | |
| Material | Medical Stainless Steel | |
| Light source | Built-in high power waterproof LED light source | |
| Camera | Dual anti-fog, intubation without blind area | |
| Interface | USB,TF(Hot plug) | |
| Rotate angle | front to back: 135 º, left to right: 275 º | |
| laryngoscope | aseptic packaging for single use | |
|
Adapter |
Input | 100 - 240V50/60Hz,0.35A |
| Output | 5V,2000mA, USB output | |
|
Battery |
Charging time | <4h |
| Cycle life of battery | > 800 times | |
| Battery type | lithium ion battery | |
| Battery working time | continues use ≥ 350 mins | |
|
Working Condition |
Environment tem | -5°~ 40°C |
| Relative humidity | ≤80% | |
| atmosphere pressure | 860hpa~1060hpa | |
| internal electric source | lithium ion battery,3.7V | |
| Transport / Storage Condition | Ambient temperature | -40 ~ 55°C |
| Relative humidity | ≤93% |
Welcome to inquiry if you have any interests!
OEM order is acceptable.
