HD Camera Rigid Anesthetic Video Laryngoscope Emergency Medical Products
HD Camera Rigid Anesthetic Video Laryngoscope Emergency Medical Products
HYHJ-KC
- The jacket of the HYHJ-KC Anesthetic Video Laryngoscope is made by high-grade medical metal steel, comfortable rigid handle;
- HYHJ-KC Anesthetic Video Laryngoscope allocation is complete, five model types of replaced camera system suit for different patients, to achieve a multi-purpose machine
- HYHJ-KC Anesthetic Video Laryngoscope digital camera system with 960 x 480 high - resolution display, make intubation easier
- HYHJ-KC Anesthetic Video Laryngoscope is made of medical grade stainless steel, which can be used repeatedly after disinfection which reduce the cost;
- HYHJ-KC Anesthetic Video Laryngoscope has many functions: external play, large capacity battery, photo, video, freeze frame, storage,
| Name | Technical term | Technical Index |
|
Machine |
Display Resolution | 960 x 480 |
| Pixels | 2 million | |
| Camera Resolution | 1600 x 1200 | |
| Viewing angle | 70 ± 2 degree | |
| Depth of field | 3~100mm | |
| Host key | Freeze frame, take photo and video | |
| Material | Medical Stainless Steel | |
| Light source | Built-in high power waterproof LED light source | |
| Camera | Dual anti-fog, intubation without blind area | |
| Interface | USB,TF(Hot plug) | |
| Rotate angle | front to back: 135 º, left to right: 275 º | |

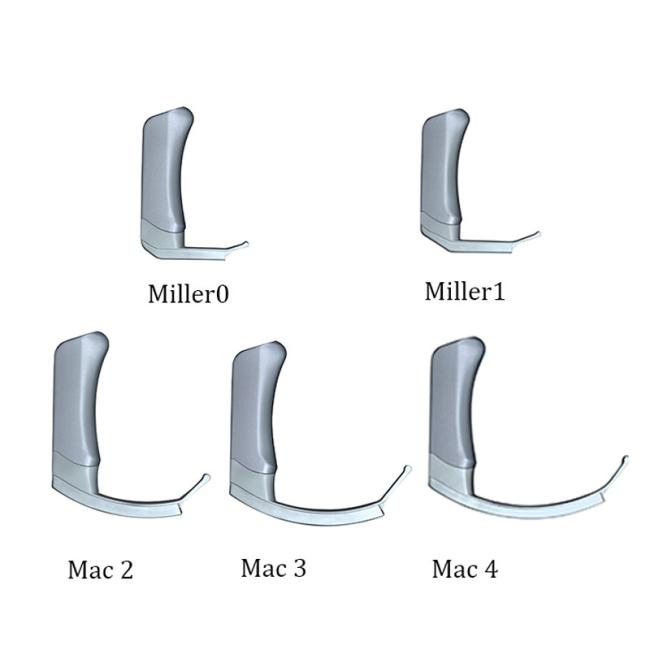

| laryngoscope Blades | 5 resuable blades suit for different oral structure | |
|
Powder Adapter |
Input | 100 - 240V50/60Hz,0.35A |
| Output | 5V,2000mA, USB output | |
|
Battery |
Charging time | <4h |
| Cycle life of battery | > 800 times | |
| Battery type | lithium ion battery | |
| Battery working time | continues use ≥ 350 mins | |
|
Working Condition |
Environment tem | -5°~ 40°C |
| Relative humidity | ≤80% | |
| atmosphere pressure | 860hpa~1060hpa | |
| internal electric source | lithium ion battery,3.7V | |
| Transport / Storage Condition | Ambient temperature | -40 ~ 55°C |
| Relative humidity | ≤93% |
What are the characteristics of anesthesia video laryngoscope?
With the medical technology's rapid development of anesthetic laryngoscope video product is used in many large comprehensive hospitals, and ent specialist hospital. The whole video laryngoscope by video image display (the host), work system composed of laryngoscope, connecting cable, charger, it can clear display oral internal image. Its operation method is
simple, less injury.
Compared with the common laryngoscope, the anesthesia video laryngoscope is designed without exposed lighting device circuit contacts, which can reduce the poor contact faults. At the same time, anesthesia video laryngoscope products are more high-performance large capacity rechargeable lithium battery, generally can be used continuously for 4 hours, more than a variety of specifications of peep tablets for your choice, can avoid cross infection.
Xi’an Haiye Medical Equipment (founded in July 2013) is an comprehensive medical equipment enterprise with high & new technology. Our company is committed to the visual medical fields, our indenpendently R&D vedio laryngoscope are widely used in the medical institutions’anesthesiology, emergency, ICU, pediatric, ambulance, and first aid. Xi’an Haiye always focus on the product quality mangement system, and has attained the ISO13485, ISO9001, and Europe Union CE and U.S.FDA certificate in 2018. Our vedio laryngoscope has export to many countries and regions, such as: the U.S., French, Middle East, Australia, Korea, Russia, Pakistan...
Welcome to inquiry if you have any interests!
OEM order is acceptable.
