5 Mac Miller Blades Medical Digital Video Laryngoscope With Ergonomic Hand Shank
Ergonomic Design Hand Shank 5 Mac + Miller Blades Medical Digital Video Laryngoscopes
Company Overview:
Product of video laryngoscope HYHJ-KC
The shell of the whole machine is made of medical-grade metal material, the high-grade, atmospheric, thick, solid handle is comfortable to hold;
Product configuration is rich, up to five specifications of the camera system can be replaced between different patients, to achieve a multi-purpose machine;
Digital camera system with high - resolution display, make intubation easier;
The laryngoscope is made of medical grade stainless steel, which can be used repeatedly after disinfection which reduce the cost;
Photo, video, freeze frame, storage, external play, large capacity battery, complete function
Production Capacity:
- Powder Button: On/Off and freeze frame

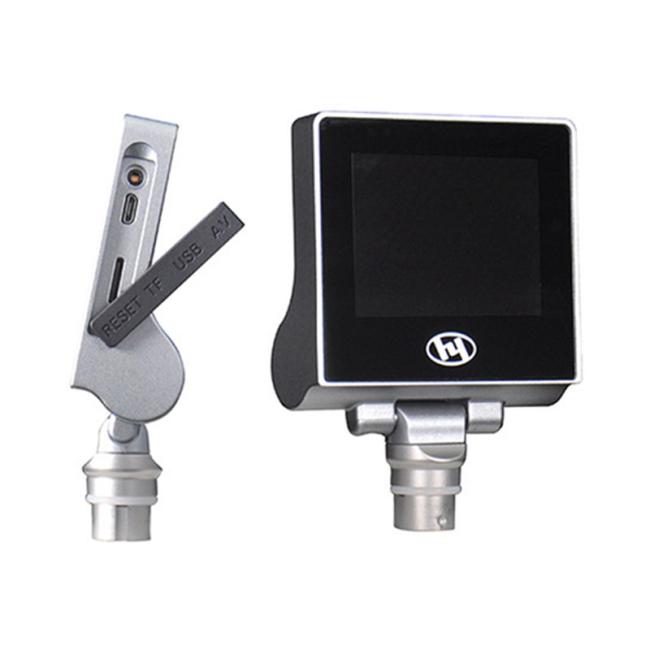

- Display module: 3’’ high definition display, image much clearer; metal alloy swing frame, can rotate large angle from left, right, front, and back
- Alloy handle: Ergonomic design, more comfortable grip
- Medical stainless steel: suitable for different ways of disinfection, reusable
- USB port: charging and data transfer
- Photo button/Shutter: Short press-take photo, long press-vedio recording
- 200 million pixel double anti-fog carema system
Technical feature
| Name | Technical term | Technical Index |
|
Machine |
Display Resolution | 960 x 480 |
| Pixels | 2 million | |
| Carema Resolution | 1600 x 1200 | |
| Viewing angle | 70 ± 2 degree | |
| Depth of field | 3~100mm | |
| Host key | Freeze frame, take photo and vedio | |
| Material | Medical Stainless Steel | |
| Light source | Built-in high power waterproof LED light source | |
| Camera | Dual anti-fog, intubation without blind area | |
| Interface | USB,TF(Hot plug) | |
| Roatate angle | front to back: 135 º, left to right: 275 º | |
| laryngoscope | 5 resuable blades suit for different oral structure | |
|
Powder Adapter |
Input | 100 - 240V50/60Hz,0.35A |
| Output | 5V,2000mA, USB output | |
|
Battery |
Charging time | <4h |
| Cycle life of battery | > 800 times | |
| Battery type | lithium ion battery | |
| Battery working time | continous use ≥ 350 mins | |
|
Working Condition |
Environment tem | -5°~ 40°C |
| Relative humidity | ≤80% | |
| atmosphere pressure | 860hpa~1060hpa | |
| internal electric source | lithium ion battery,3.7V | |
| Transport / Storage Condition | Ambient temperature | -40 ~ 55°C |
| Relative humidity | ≤93% |
| Specification & Dimension (5 KC Resuable Blades) | ||||||
| Tip Size(mm) | L | H | W | Max W | Min W | |
| 1 | Mac4:Large Adult | 153 | 54.5 | 29.23 | 22.41 | 14.37 |
| 2 | Mac3:Medium Adult | 140 | 49 | 29.23 | 21.37 | 14.46 |
| 3 | Mac2:Small Adult & Large Child | 122 | 34 | 29.23 | 21.4 | 13.56 |
| 4 | Miller1:Medium Child | 77.4 | 22.74 | 18.55 | 14.5 | 10.34 |
| 5 | Miller0:Small Child & Infant | 59.9 | 17.46 | 18.55 | 14.7 | 10.6 |
XI'AN HAIYE has been devoted to the R&D and production of products in the visual medical field since its founding, and has developed successively many kinds and full series of products, such as anesthesia laryngoscopes, video laryngoscopes, video rigid endoscopes, video flexible endoscopes, disposable uroscopes, disposable hysteroscopes.
FAQ
Q: Are you Manufacturer?
A: We are professional manufacturer of video laryngoscope in China over 5 years, now we mainly produce video laryngoscope with disposable and reusable blade,welcome to visit our factory.
Q: What’s your MOQ and OEM service available?
A: 1 sets as sample can accept, we offer OEM service and print your logo as your requirement.
Q: Can we replace disposable and reusable blade?
A: Main machine is the same, you can match our disposable or reusable freely.
Q: Whats your warranty?
A: We offer 12 months warranty, within warranty change new machine, after warranty only pay produce cost.
