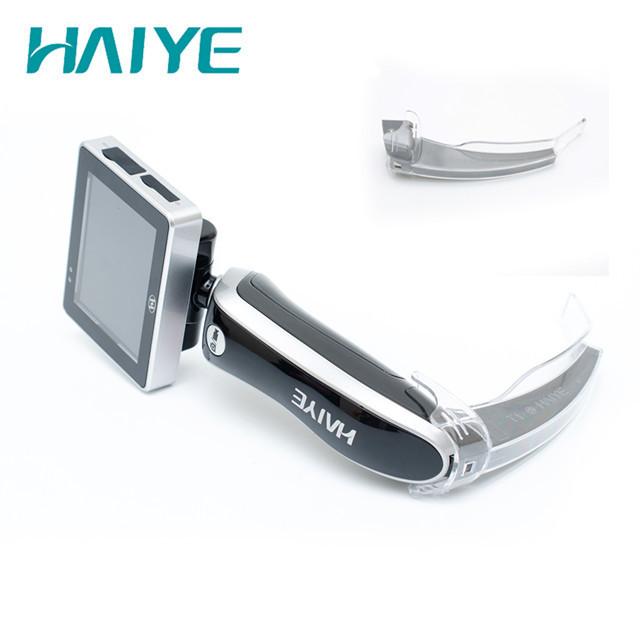

3"TFT Color display Portable Handheld Video Laryngoscope For Emergency Rescue
-
Emergency Rescue Portable Video Laryngoscope for Anesthetist & Respiratory Physician
Main Features :

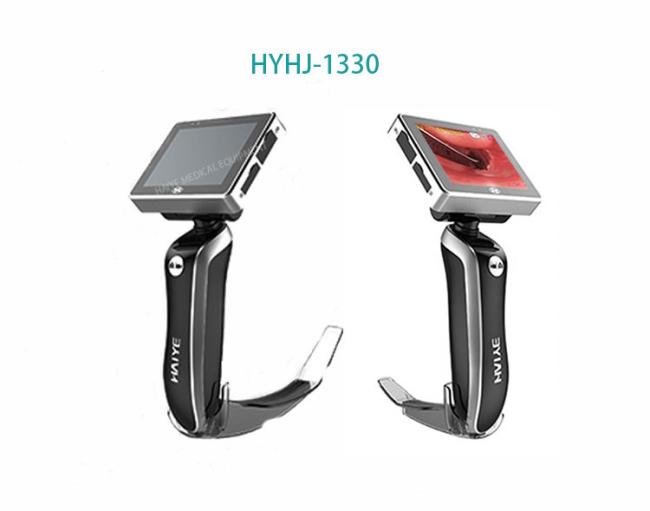

HYHJ-1330 Medical visual laryngoscope is the latest product of our company. The machine is novel in design, beautiful in appearance, small in portability, complete in function and simple in use,It is a functional, portable, practical, durable and highly configured medical visual laryngoscope. It is an ideal teaching material tool for the teaching of hospital first aid, clinical use and endotracheal intubation.
◆It has high precision and full mold production process, and has long service life.
◆ The machine adopts an imported large capacity lithium battery, which can be used for more than 350 minutes.
◆ It has the functions of photographing, video, freeze-frame and so on, and can be stored and exported;
◆ The special anti fogging function can be used normally for 3 minutes by opening the machine, and there is no blind zone in the intubation.
◆ The machine has three different specifications, corresponding to three types of camera, suitable for three different laryngoscope lenses, adults, children, infants and young children can be used.
◆ The video laryngoscope blade is sterilized in one time to prevent cross infection.
◆ Mature and reliable electronic scheme and high definition digital camera system, with 3 "TFT color display screen, image reduction effect is good.
Technical Index of video portable laryngoscope
| Name | Technical term | Technical Index |
|
Machine |
Display Resolution | 960 x 480 |
| Pixels | 2 million | |
| Camera Resolution | 1280 x 720 | |
| Viewing angle | 70 ± 2 degree | |
| Depth of field | 3~100mm | |
| Host key | Freeze frame, take photo and video | |
| Material | Medical Stainless Steel | |
| Light source | Built-in high power waterproof LED light source | |
| Camera | Dual anti-fog, intubation without blind area | |
| Interface | USB,TF(Hot plug) | |
| Rotate angle | front to back: 135 º, left to right: 275 º | |
| laryngoscope blades | 3 different types disposable blades, aseptic packaging for single use | |
| Adapter | Input | 100 - 240V50/60Hz,0.35A |
| Output | 5V,2000mA, USB output | |
|
Battery |
Charging time | <4h |
| Cycle life of battery | > 800 times | |
| Battery type | lithium ion battery | |
| Battery working time | continues use ≥ 350 mins | |
|
Working Condition |
Environment tem | -5°~ 40°C |
| Relative humidity | ≤80% | |
| atmosphere pressure | 860hpa~1060hpa | |
| internal electric source | lithium ion battery,3.7V | |
| Transport / Storage Condition | Ambient temperature | -40 ~ 55°C |
The HYHJ1330 features a rechargeable li-ion battery for extended use. A unique anti-fog capability is also provided. The overall design is compact and ergonomic. A high resolution view of the glottis will enable clinicians firstattempt success while minimizing any chance of complication during the intubation process.
Welcome to inquiry if you have any interests!
OEM order is acceptable.
