Emergency Rescue Portable Video Laryngoscope For Anesthetist Respiratory Physician

Price Negotiable
Price: 500~800USD/set
MOQ: 1set
Delivery Time: 5-8 work days
Brand: HAIYE
Product Description
  • Emergency Rescue Portable Video Laryngoscope for Anesthetist & Respiratory Physician



Main Features :

One-click start, no warm-up required
The power button contains a scaling function
Standard 3-inch screen clarity and high practicality
The frame is made of medical 304 stainless steel, which has high strength and high hardness
The camera button contains a recording function
The camera system is made of medical 304 stainless steel
Double anti-fog, no blind spots
Transparent laryngeal lenses
Different specifications meet various oral structures, aseptic packaging for single use





3.0-inch LCD screen, can turn back and forth at large angles, disposable laryngoscope piece has blade guide slot design, so that intubation is simple and effective

Technical Index

Name Technical term Technical Index













Machine

Display Resolution 960 x 480
Pixels 2 million
Camera Resolution 1280 x 720
Viewing angle 70 ± 2 degree
Depth of field 3~100mm
Host key Freeze frame, take photo and video
Material Medical Stainless Steel
Light source Built-in high power waterproof LED light source
Camera Dual anti-fog, intubation without blind area
Interface USB,TF(Hot plug)
Ratate angle front to back: 135 º, left to right: 275 º
laryngoscope 3 different types disposable blades,aseptic packaging for single use
Adapter Input 100 - 240V50/60Hz,0.35A
Output 5V,2000mA, USB output



Battery

Charging time <4h
Cycle life of battery > 800 times
Battery type lithium ion battery
Battery working time continues use ≥ 350 mins



Working Condition

Environment tem -5°~ 40°C
Relative humidity ≤80%
atmosphere pressure 860hpa~1060hpa
internal electric source lithium ion battery,3.7V
Transport / Storage Condition Ambient temperature -40 ~ 55°C



The HYHJ1330 offers unique anti-fog capability with a rechargeable lithium-ion battery for extended use time. Fully ergonomically designed. The high-resolution view laryngoscope provides a more complete display of the glottis, greatly reducing the likelihood of difficult intubation

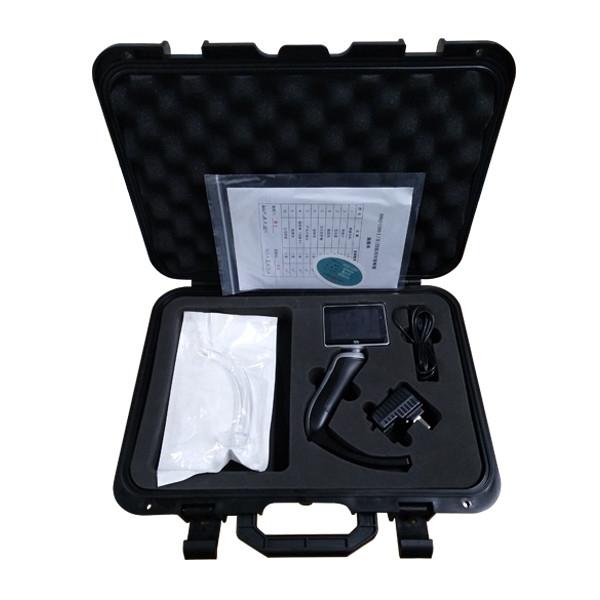

The camera system display of the machine is integrated and does not require manual installation; It has three camera sizes that can be adapted to different sizes of oral structures, and each camera system is equipped with disposable sterile packaging of medical PC to prevent cross-infection

Imported special medical material, smooth surface without reflection, fuselage free fall is not easy to damage, medical waterproof aviation professional connection design, to ensure high quality image transmission; High quality protective box, handle laryngoscope integrated design, light and dexterous



Welcome to inquiry if you have any interests!

OEM order is acceptable.
