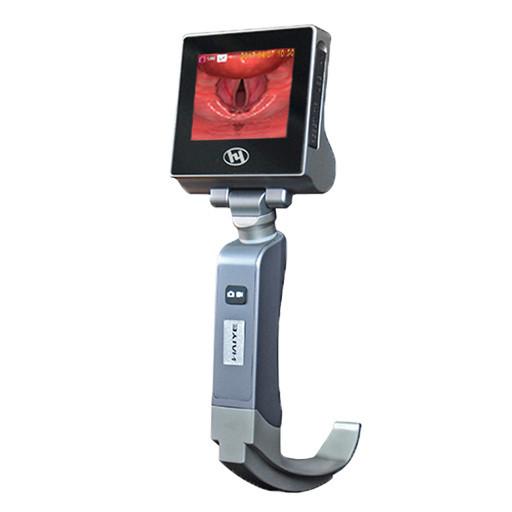

3'' Lcd USB Output Medical Surgical Endoscope Neonatal Intubation Blades Video Laryngoscope
3'' lcd Neonatal Intubation Blades Video Laryngoscope USB Output Medical Surgical Endoscope
Digital camera system of HYHJ-KC video laryngosccope: high - resolution display, make intubation easier;
HYHJ-KC video laryngosccope is atmospheric, thick, solid handle shell, can comfortable to hold, body made of high-grade medical metal material;
Resuable blades of HYHJ-KC video laryngosccope: can be used repeatedly after disinfection which reduce the costis also it's made of medical grade stainless steel;
Configuration of HYHJ-KC video laryngosccopeis rich, five specifications can be replaced camera system used for different patients, able to achieve a multi-purpose machine;
The function of HYHJ-KC video laryngosccope: photo, video, freeze frame, storage, external play, large capacity battery, complete function
HYHJ-KC video laryngosccope's Technical data
| Name | Technical term | Technical Index |
|
Machine |
Display Resolution | 960 x 480 |
| Pixels | 2 million | |
| Camera Resolution | 1600 x 1200 | |
| Viewing angle | 70 ± 2 degree | |
| Depth of field | 3~100mm | |
| Host key | Freeze frame, take photo and video | |
| Material | Medical Stainless Steel | |
| Light source | Built-in high power waterproof LED light source | |
| Camera | Dual anti-fog, intubation without blind area | |
| Interface | USB,TF(Hot plug) | |
| Rotate angle | front to back: 135 º, left to right: 275 º | |
| laryngoscope | 5 reasuable blades suit for different oral structure | |
|
Powder Adapter |
Input | 100 - 240V50/60Hz,0.35A |
| Output | 5V,2000mA, USB output | |
|
Battery |
Charging time | <4h |
| Cycle life of battery | > 800 times | |
| Battery type | lithium ion battery | |
| Battery working time | continues use ≥ 350 mins | |
|
Working Condition |
Environment tem | -5°~ 40°C |
| Relative humidity | ≤80% | |
| atmosphere pressure | 860hpa~1060hpa | |
| internal electric source | lithium ion battery,3.7V | |
| Transport / Storage Condition | Ambient temperature | -40 ~ 55°C |
| Relative humidity | ≤93% |
Application of HYHJ-KC video laryngosccope
HYHJ-KC video laryngoscope is suitable for clinical tracheal intubation, simulation exercise, clinical teaching and difficult airway intubation in ICU/ pediatric department, anesthesiology department, ambulance, emergency department and other medical departments at all levels
HYHJ-KC video laryngoscope is often used to open the client's epiglottis to expose the glottis, allow doctord to perform tracheal intubation under visual observation. HYHJ-KC video laryngoscope'simprovement of the appearance and shape of the video laryngoscope and its further optimization will make the video laryngoscope more consistent with the structural characteristics of the upper respiratory feature (particular the difficult airway).
Welcome to inquiry if you have any interests!
OEM order is acceptable.
