Direct Medical Surgical Endoscope Video Laryngoscope Rechargeable For Difficult Airway
Direct Medical Surgical Endoscope Video Laryngoscope Rechargeable For Difficult Airway

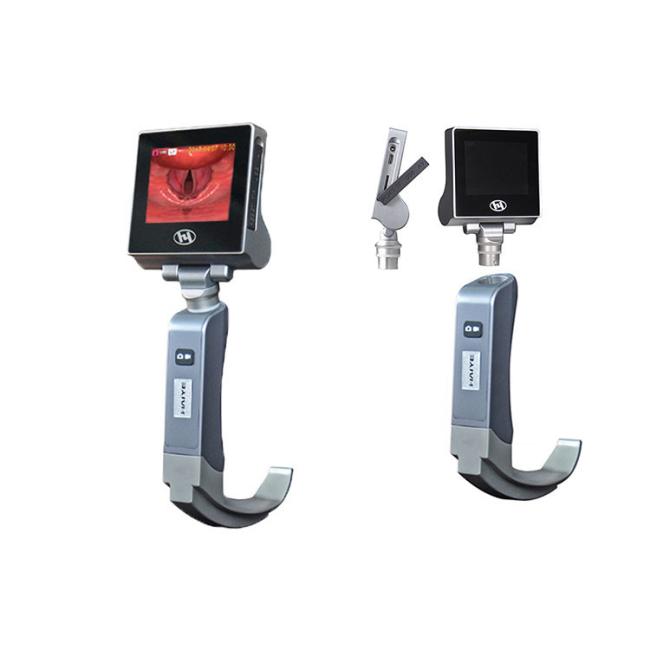

Power Button: On/Off and Freeze
Display components: 3-inch high-definition display screen, the image is clearer;
the alloy swing frame can be rotated forward and backward, left and right at a large angle
Alloy handle: ergonomic design, more comfortable grip
Medical stainless steel: suitable for disinfection in different ways and can be reused
USB interface: charging and data transfer
Camera button: short press to take pictures, long press to record
2 million pixel camera system
Technical feature
| Name | Technical term | Technical Index |
|
Machine |
Display Resolution | 960 x 480 |
| Pixels | 2 million | |
| Camera Resolution | 1600 x 1200 | |
| Viewing angle | 70 ± 2 degree | |
| Depth of field | 3~100mm | |
| Host key | Freeze frame, take photo and video | |
| Material | Medical Stainless Steel | |
| Light source | Built-in high power waterproof LED light source | |
| Camera | Dual anti-fog, intubation without blind area | |
| Interface | USB,TF(Hot plug) | |
| Rotate angle | front to back: 135 º, left to right: 275 º | |
| laryngoscope | 5 resuable blades suit for different oral structure | |
|
Powder Adapter |
Input | 100 - 240V50/60Hz,0.35A |
| Output | 5V, 2000mA, USB output | |
|
Battery |
Charging time | <4h |
| Cycle life of battery | > 800 times | |
| Battery type | lithium ion battery | |
| Battery working time | continues use ≥ 350 mins | |
|
Working Condition |
Environment tem | -5°~ 40°C |
| Relative humidity | ≤80% | |
| atmosphere pressure | 860hpa~1060hpa | |
| internal electric source | lithium ion battery,3.7V | |
| Transport / Storage Condition | Ambient temperature | -40 ~ 55°C |
| Relative humidity | ≤93% |
Product description: The product design fully takes into account the particularity of clinical use, adopts a large number of medical-grade metal materials and advanced processing technology, optimizes the structural design, improves the imaging quality, enhances the convenience of use, and makes the appearance and use perfect. combine together
Product features: simple and atmospheric, clear imaging, simple operation, complete specifications. The product has the functions of taking pictures, freezing, video, high-definition output, data storage, large-capacity export and so on. The large-capacity battery lasts for a longer time, and the display can be rotated at a large angle, front, back, left, and right.
Product configuration description: In order to greatly improve the convenience of use, the display screen can be connected to any specification of the handle, the product is divided into repeated use and disposable use (5 specifications: adult large, adult medium, children type, neonatal type, preterm type).
Adult Large, Adult Medium
Adult Small and Child Large
Adult Medium
Adult Small or Infant

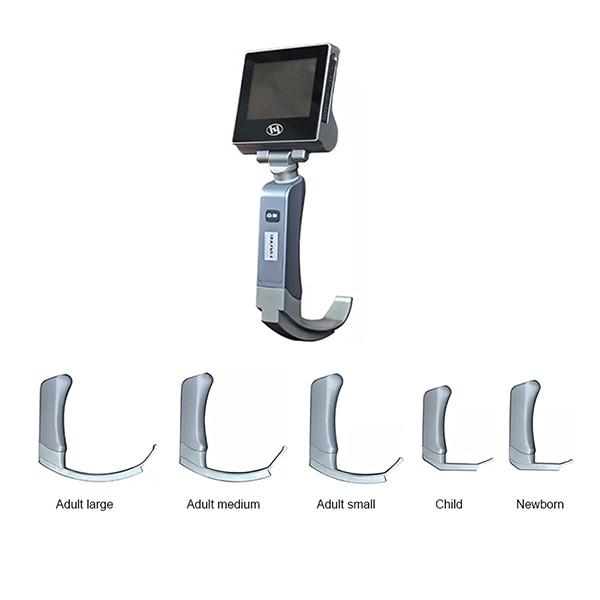

5 sizes of laryngeal blades to choose from
Welcome to inquiry if you have any interests!
OEM order is acceptable.
