Alloy Handle Haiye Video Laryngoscope Anesthesia Auxiliary Equipment
Alloy handle Anesthesia Auxiliary Equipment: Haiye Video Laryngoscope Videolaryngoskope
3.0-inch high-definition display with 3~100mm depth of field, clearer close-range intubation imaging;
Easy to operate, one-button operation, anesthesiologists and nurses who have experience in traditional laryngoscope operation can quickly get started;
Powder Button: On/Off and Freeze
Display module: 3" high-definition display, the image is much clearer;
metal alloy swing frame, can be rotated left, right, front and rear at large angles
Alloy handle: Ergonomic design, more comfortable grip
Medical stainless steel: suitable for disinfection in different ways, reusable
USB interface: charging and data transfer

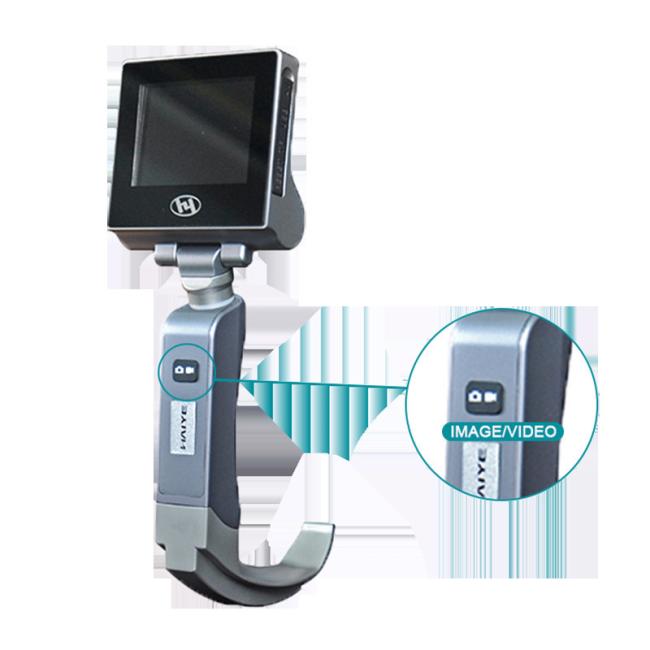

Photo button/shutter: short press - take photo, long press - video
2 million pixel dual anti-fog system
USB interface: charging and data transfer
Adult Large, Adult Medium, Adult Small and Child Large, Adult Medium Adult Small or Infant, 5 sizes of laryngeal blades to choose from
Technical feature
| Name | Technical term | Technical Index |
|
Machine |
Display Resolution | 960 x 480 |
| Pixels | 2 million | |
| Camera Resolution | 1600 x 1200 | |
| Viewing angle | 70 ± 2 degree | |
| Depth of field | 3~100mm | |
| Host key | Freeze frame, take photo and video | |
| Material | Medical Stainless Steel | |
| Light source | Built-in high power waterproof LED light source | |
| Camera | Dual anti-fog, intubation without blind area | |
| Interface | USB,TF(Hot plug) | |
| Rotate angle | front to back: 135 º, left to right: 275 º | |
| laryngoscope | 5 resuable blades suit for different oral structure | |
|
Powder Adapter |
Input | 100 - 240V50/60Hz,0.35A |
| Output | 5V,2000mA, USB output | |
|
Battery |
Charging time | <4h |
| Cycle life of battery | > 800 times | |
| Battery type | lithium ion battery | |
| Battery working time | continues use ≥ 350 mins | |
|
Working Condition |
Environment tem | -5°~ 40°C |
| Relative humidity | ≤80% | |
| atmosphere pressure | 860hpa~1060hpa | |
| internal electric source | lithium ion battery,3.7V | |
| Transport / Storage Condition | Ambient temperature | -40 ~ 55°C |
| Relative humidity | ≤93% |
• Routine and challenging endotracheal intubation procedures
• For clinical anesthesia, emergency and ICU treatment
• Endotracheal intubation in various clinical departments
• Clinical teaching of tracheal intubation
Welcome to inquiry if you have any interests!
OEM order is acceptable.
