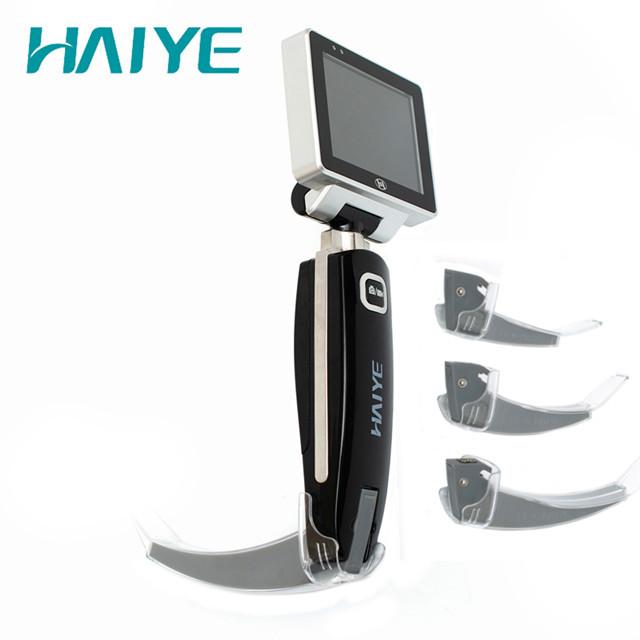

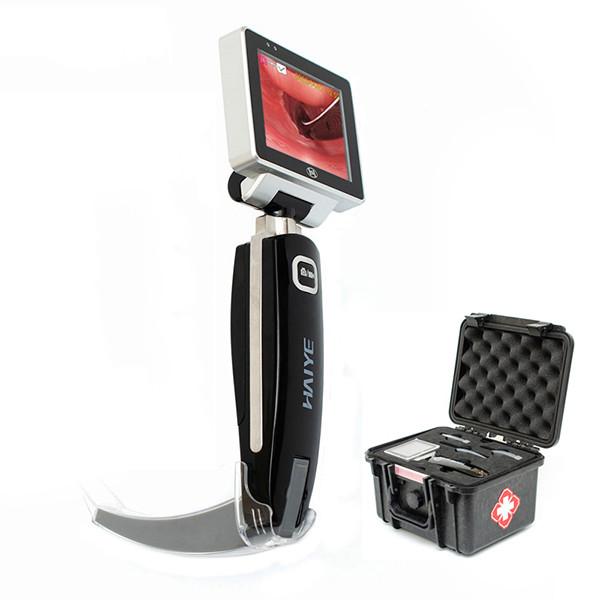

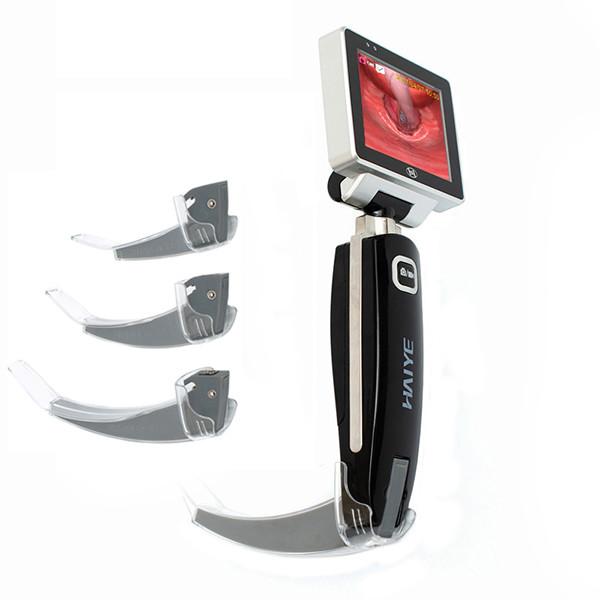

Portable Disposable Blade Anesthesia Video Intubation Devices For Baby Medical Equipment

Price Negotiable
Price: 300 USD-899 USD/SET
MOQ: 1
Delivery Time: 5-8 working days
Brand: HAIYE
Product Description

Disposable blade laryngoscope tracheal intubation difficult intubation management



Model No.: HYHJ-1320



1. General endotracheal intubation
2. Double-lumen endobronchial intubation positioning
3. Difficult airway management





Features:

1, Familiar technique with Macintosh blade,direct and video visualization,gain the capabilities of two device in one ,additional difficult airway blade optional. Can cope with a majority of airway intubation.

2, it with take photos and video recording function, could record the case for sharing and teaching purpose.

3, Narrow blade profile,intubation feasibility improved for some samll mouth opening.

4, 3.0 inch monitor with 1200*1600px high resolution, .doctor can see glottis clearly

5, CE, ISO13485 ,FDA approved

6, Private label and OEM design are acceptable

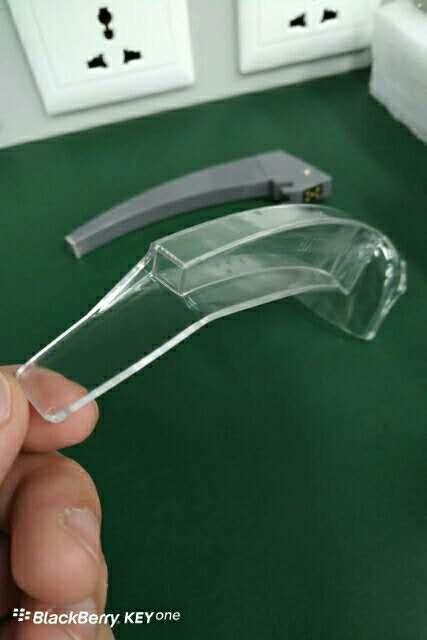

Blade:

1.A tool can make air-way intubation more rapid, accurate, as far as possible to reduce damage, and can cope with difficult airway effectively.
2. When facing critical patients, we make the functions of airway management system to be more thorough, convenient for operation.
3. Allow respond to emergency intubation patients and adapt to both indoor and outdoor resure enviroment.
4. Neonate delicate love and care, safer, reliable and suitable air-way management tool for neonate.
5. Haiye video laryngoscope with Smart Anti-Fog Technology, doctors will not face fog problem.



Application range:
Routine and difficult tracheal intubation, Could be used for doctors in Anesthesia,
ICU/NICU/CCU, Operating Room, Emergency Rescue, Ambulance,ENT etc.
Clinical training and teaching of tracheal intubation.

Parts Description Technical Index
Machine Display 3inch LCD
Resolution 960*480 (RGB)
Viewing angle ≥70º+2
Power <2W
Display front and back rotation Angle 0 º~130 º
Weight 225g
Camera Illuminance ≥150 LUX
Resolution 1200*1600 px
Image/Video function Image/ Video function Yes
Output USB output, Easy to storage and establish image/video
Memory type Micro SD card 8GB to 32 GB
Batterty Battery Type Rechargable lithium battery
Capacity 3400mAh
Cycle life of battery >600 times
Battery working time >240min
Charging time <2(hrs)
  Charging Port Micro USB
Power Adapter Input 100-250V, 50 Hz.
Output 5V1A
Working
Condition
Temperature -5℃~+50℃
Humidity 10%~90%
Air Pressure 860~1060hpa
Transport / Storage
Condition
Temperature -10℃~50℃
Humidity ≤93%
Air Pressure 500~1060hpa
